Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Remove the ashtray from the I/P. Refer to ASHTRAY REPLACEMENT .
Rotate the ashtray lamp socket clockwise.
Remove the lamp socket from the housing.
Remove the bulb from the ashtray lamp socket.

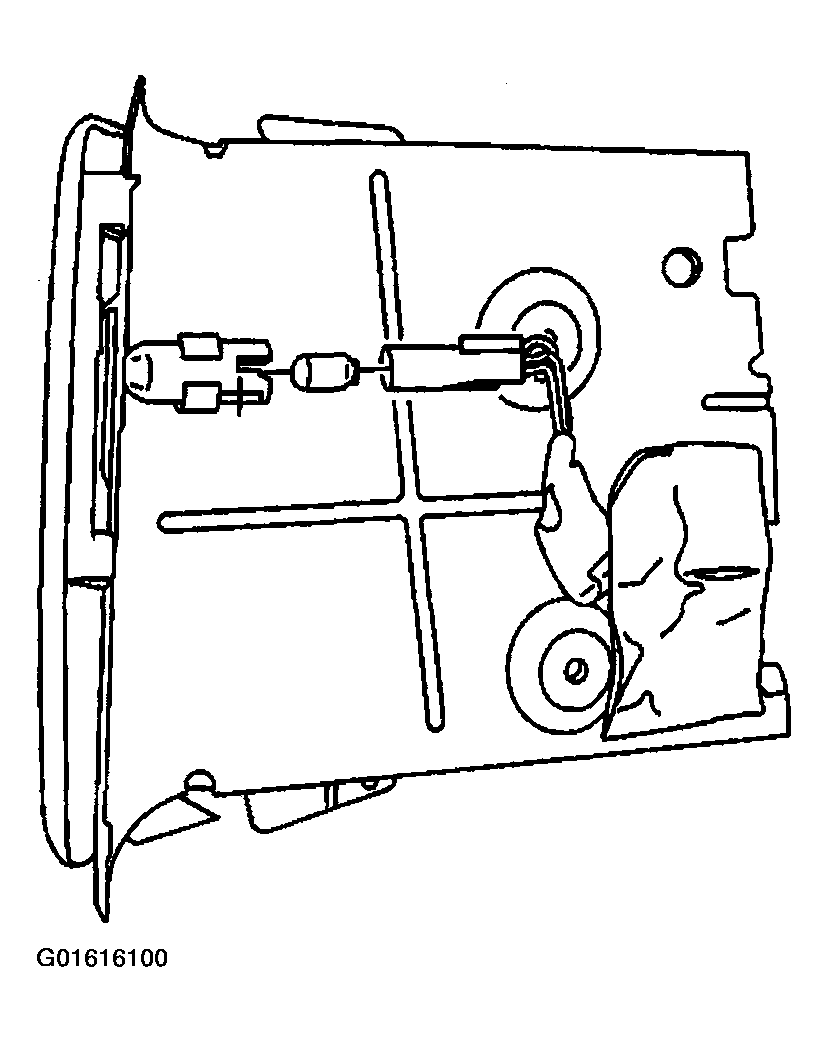

Fig 1: Ashtray Lamp & Bulb
Courtesy of GENERAL MOTORS CORP.
