Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the appropriate instrument panel (IP) insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT or CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .
  2. Rotate the IP courtesy lamp socket counterclockwise. Remove the socket from the IP insulator.
  3. Remove the bulb from the socket.

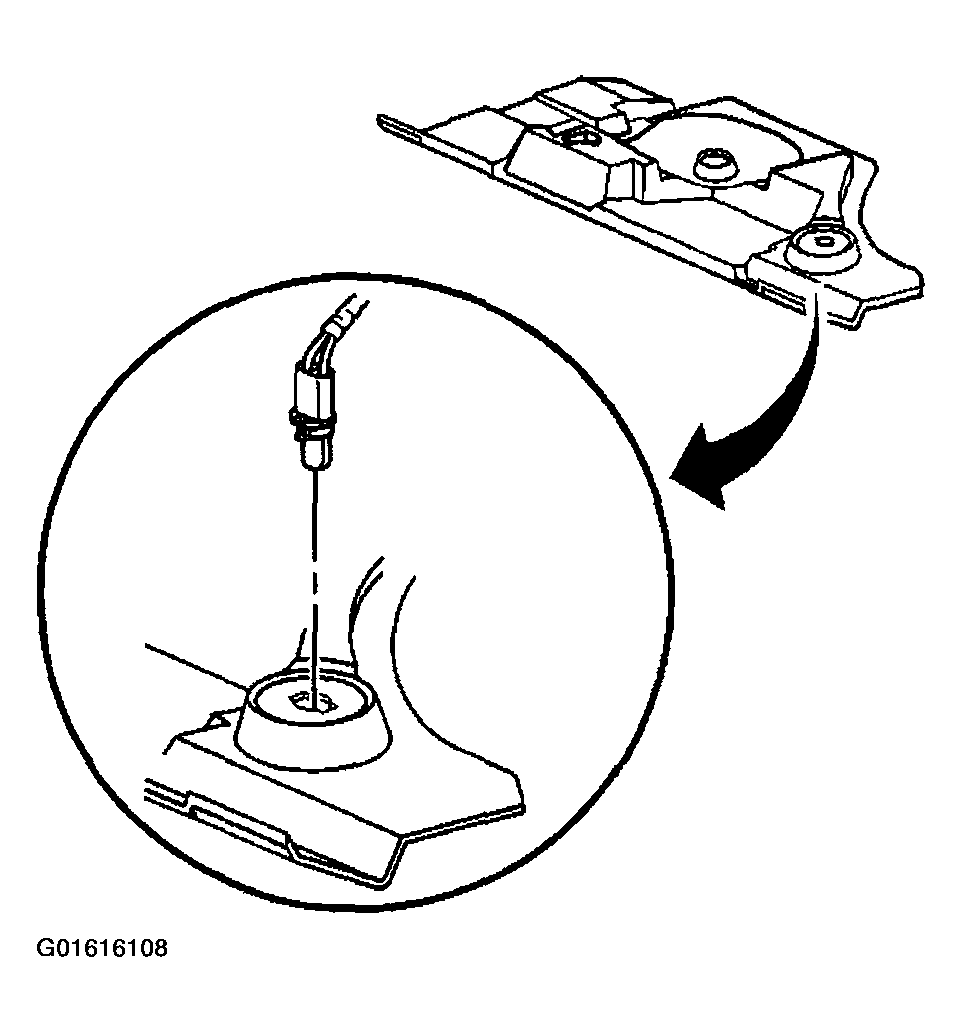

    Fig 1: Courtesy Lamp
    G01616108Courtesy of GENERAL MOTORS CORP.
