Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the Trac Off, Low Trac, Trunk Ajar, Low Washer, or Chg Oil Soon lamp:
    • Place the blue colored lamp into the opening in the driver information center (DIC).
    • Use pliers to rotate the lamp clockwise.

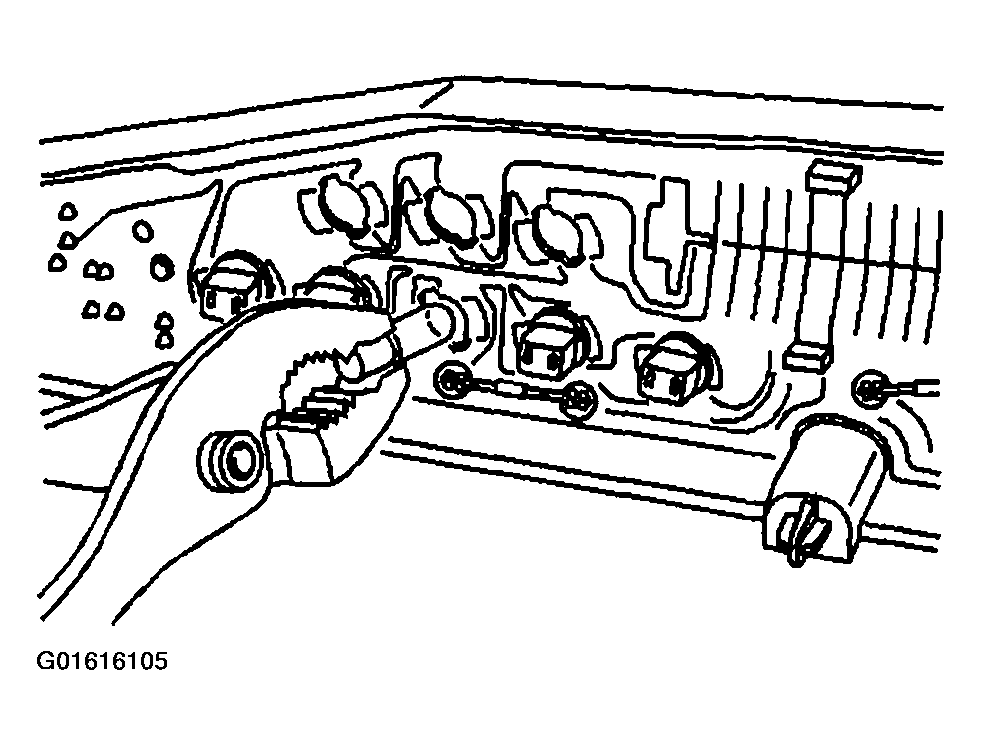

    Fig 1: Installing Lamp
    G01616105Courtesy of GENERAL MOTORS CORP.
  2. Install the door ajar lamp:
    • Place the black door ajar lamp into the opening in the DIC.
    • Use a flat-bladed tool to rotate the door ajar lamp clockwise.

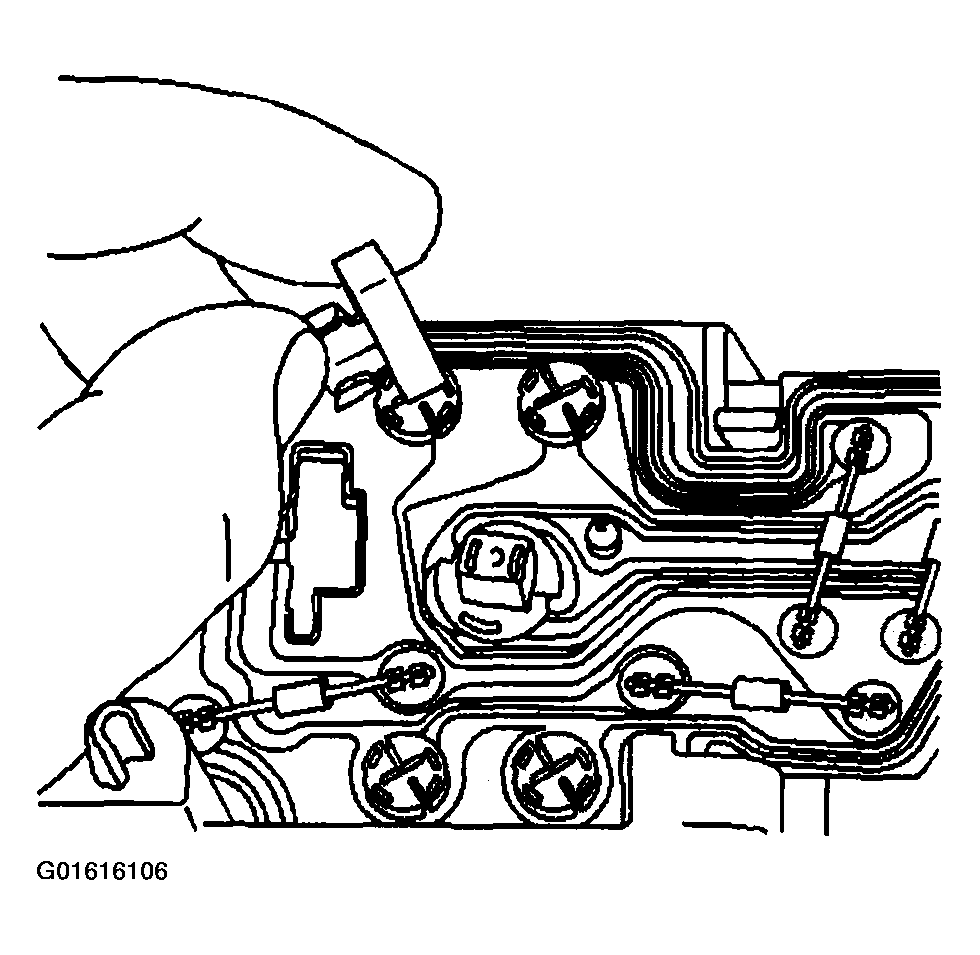

    Fig 2: Installing Door Ajar Lamp
    G01616106Courtesy of GENERAL MOTORS CORP.
  3. Install the illumination lamp:
    • Place the red colored illumination lamp into the opening in the DIC.
    • Use pliers to rotate the illumination lamp clockwise.
  4. Install the DIC. Refer to DRIVER INFORMATION CENTER MODULE REPLACEMENT .

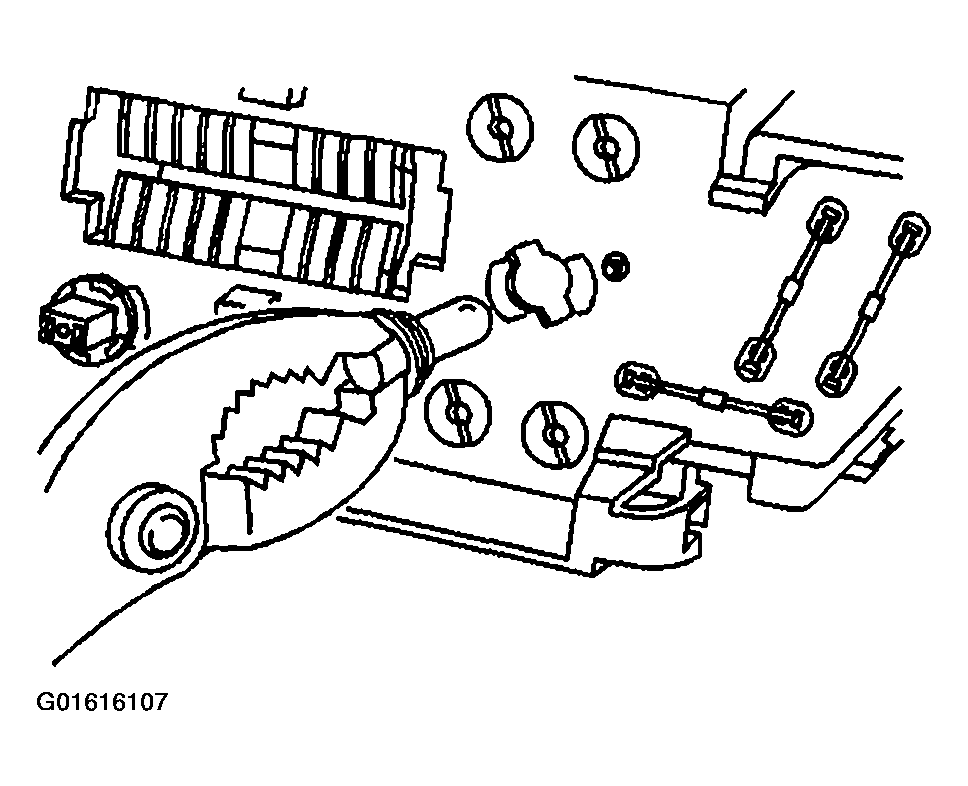

    Fig 3: Installing Illumination Lamp
    G01616107Courtesy of GENERAL MOTORS CORP.
