Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the headlamp bulb/socket to the headlamp assembly.

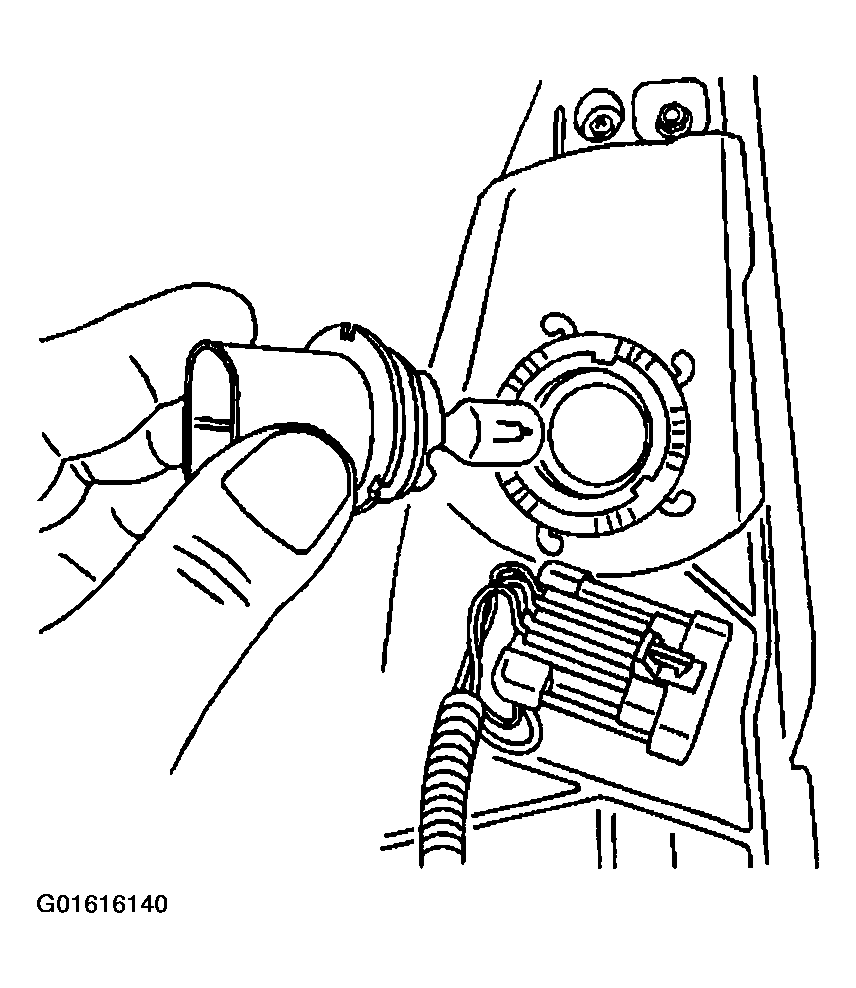

Fig 1: Headlamp Bulb/Socket
Courtesy of GENERAL MOTORS CORP.
Install the headlamp bulb/socket retainer ring the headlamp assembly, turning clockwise unit fully seated.

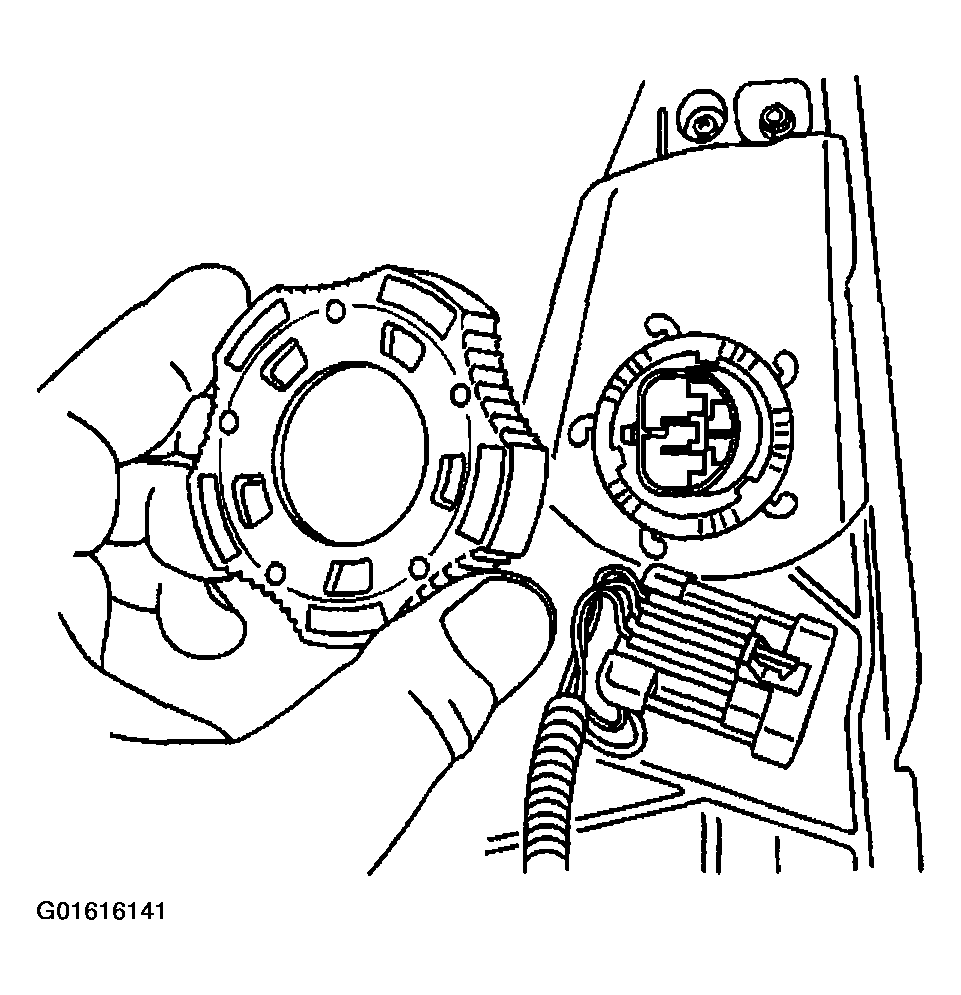

Fig 2: Headlamp Bulb/Socket Retainer Ring
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the headlamp bulb/socket.

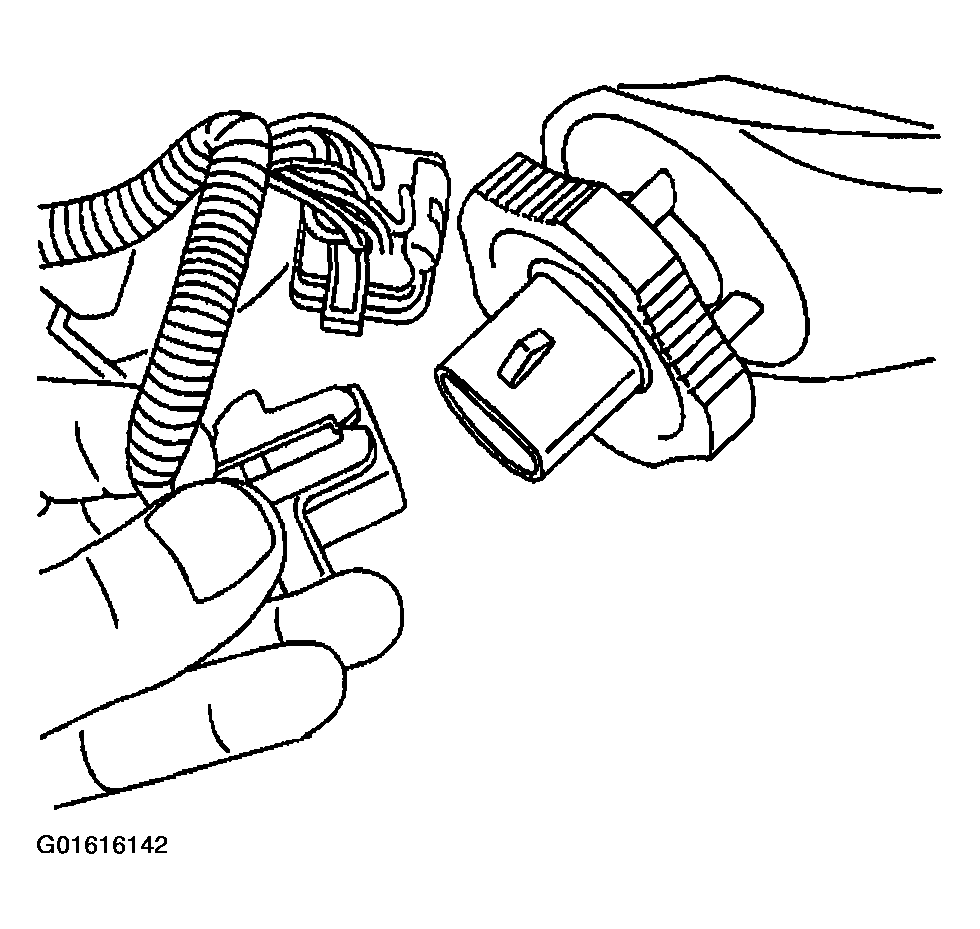

Fig 3: Headlamp Bulb/Socket Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the headlamp assembly.

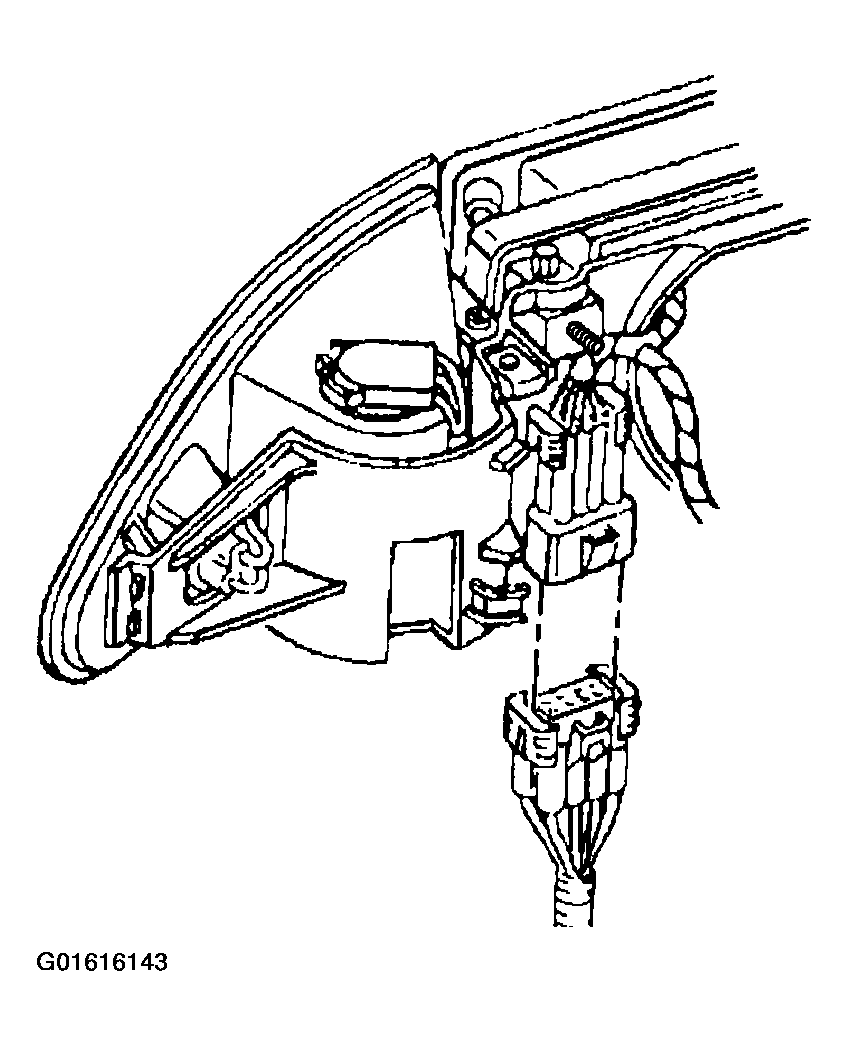

Fig 4: Headlamp Assembly Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Position the headlamp assembly to the vehicle body, just outward of the installed position.
Align the headlamp bracket tabs to the slots (1) in the upper fascia support. Slide the headlamp inward to engage the tabs.

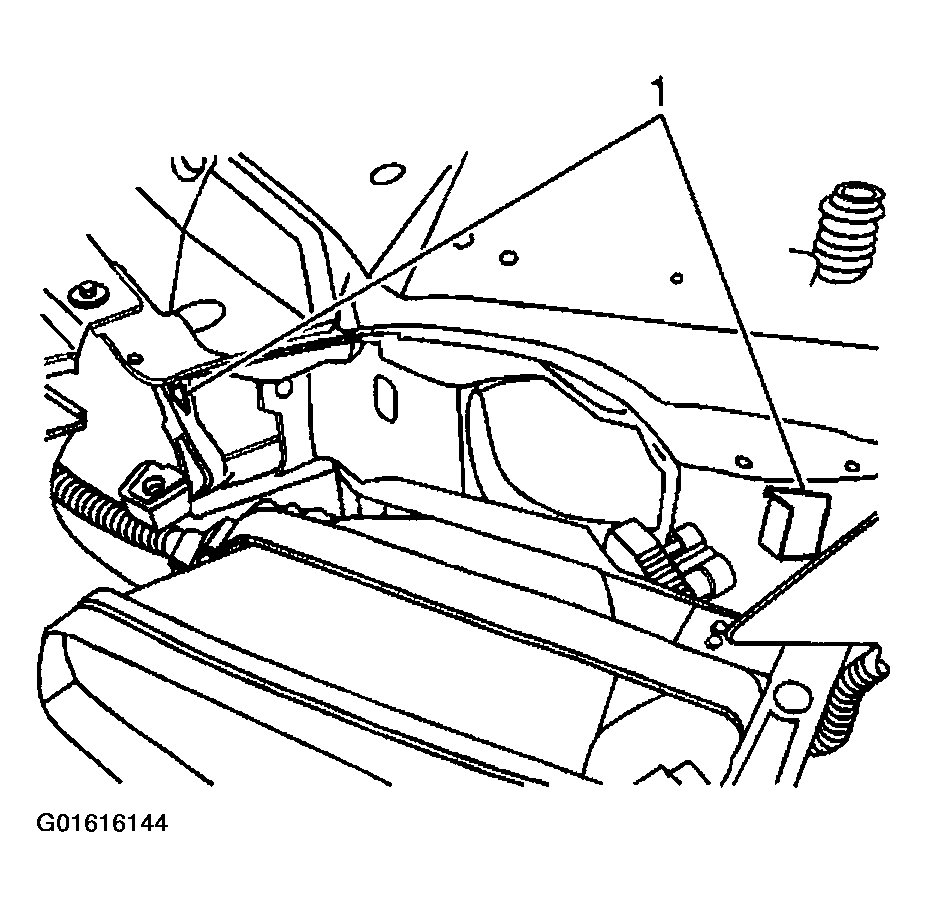

Fig 5: Headlamp Bracket Tab Slots
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the headlamp assembly bolts to the upper fascia support.
Tighten

Tighten the headlamp assembly bolts to 6 N.m (53 lb in).
Check and adjust the headlamp aim as necessary. Refer to Headlamp Aiming .
Close the hood.

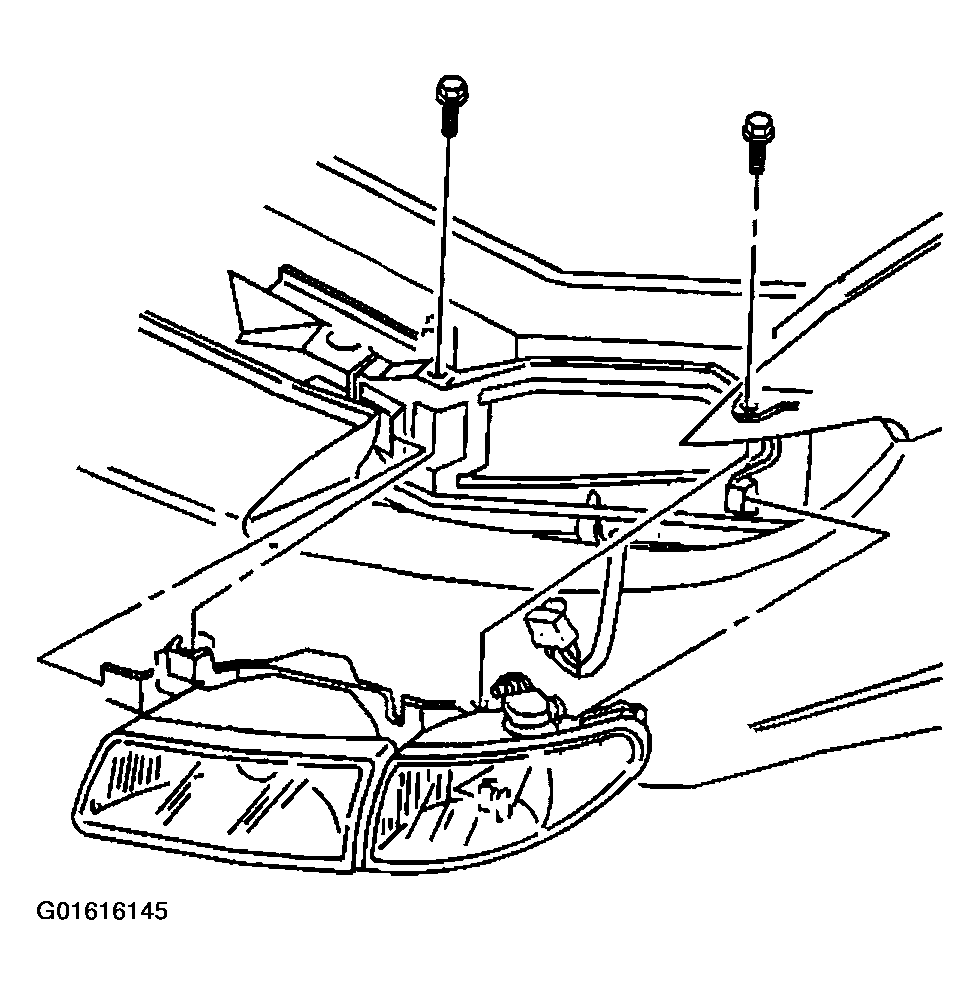

Fig 6: Headlamp Assembly
Courtesy of GENERAL MOTORS CORP.
