Power Window Schematics

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

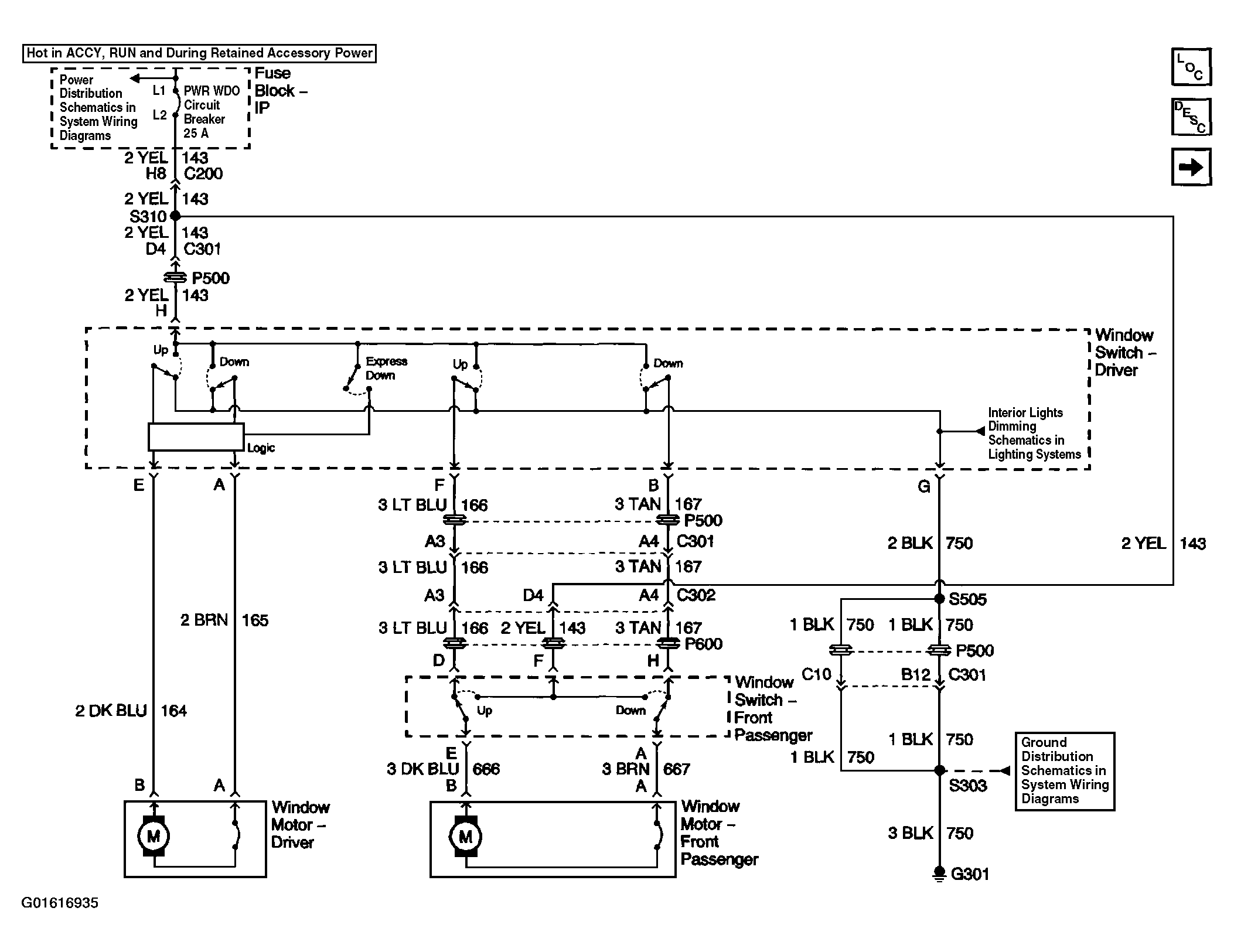

Fig 1: Power Window Schematics (2-Door)

Courtesy of GENERAL MOTORS CORP.

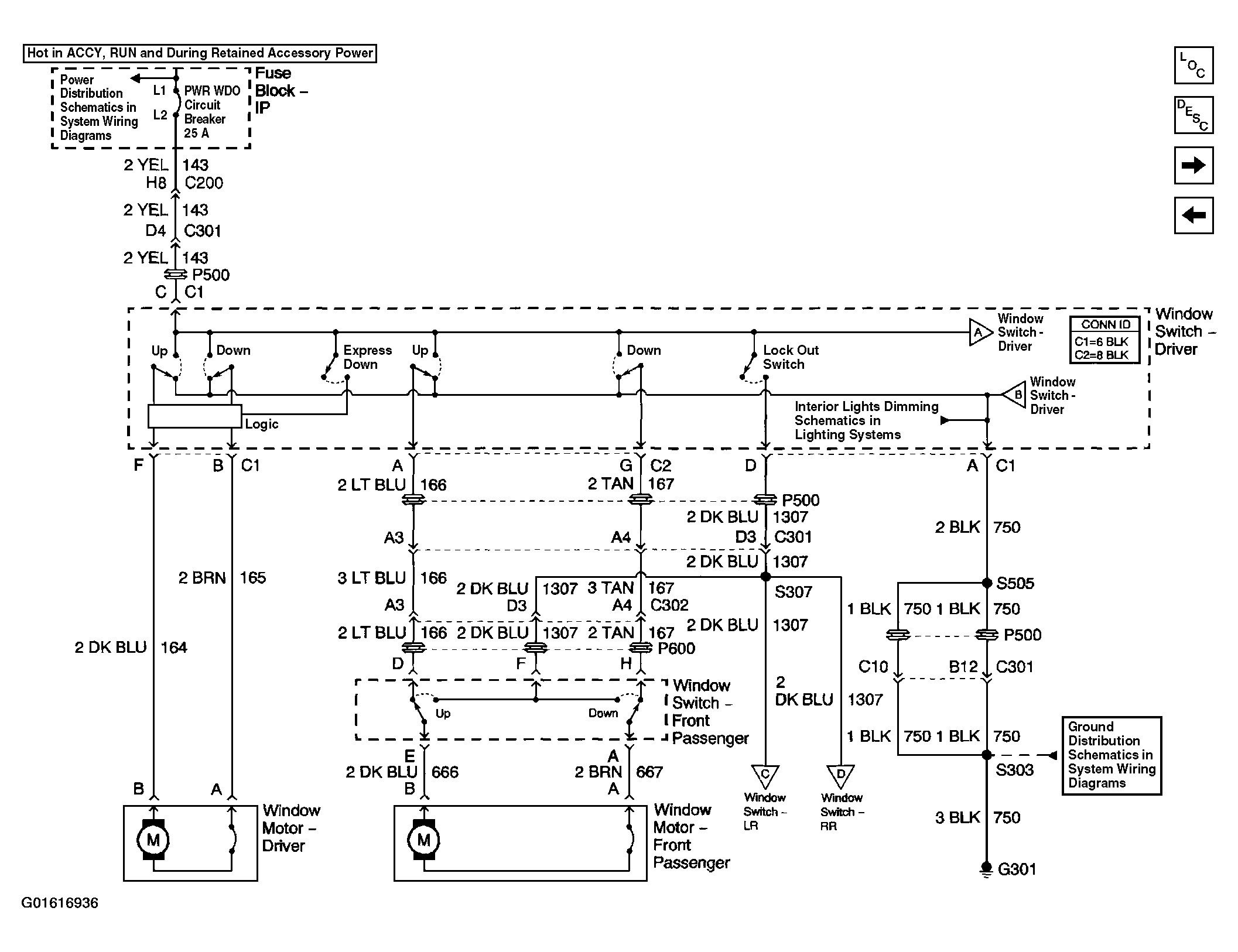

Fig 2: Power Window Schematics (4-Door Front)

Courtesy of GENERAL MOTORS CORP.

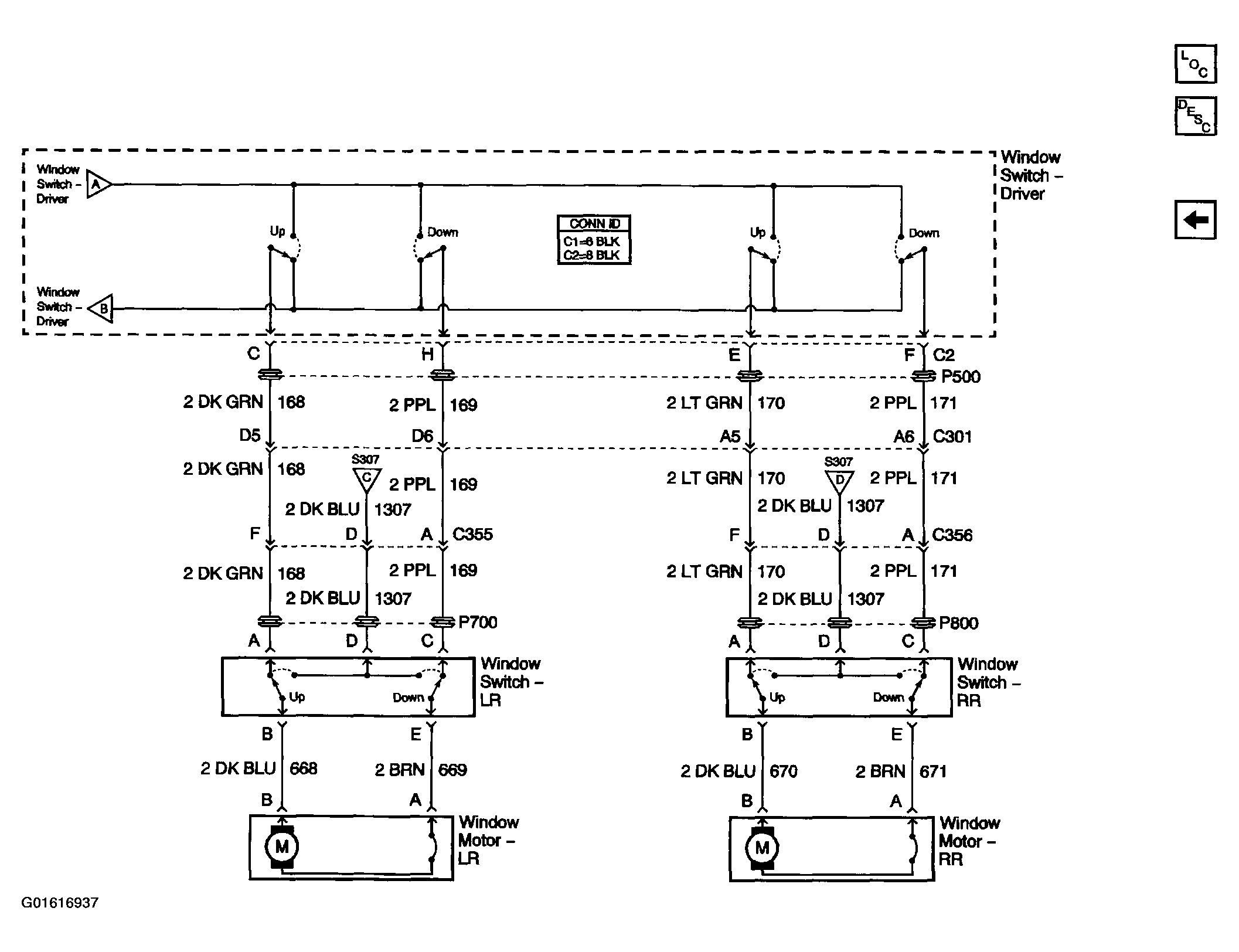

Fig 3: Power Window Schematics (4-Door Rear)

Courtesy of GENERAL MOTORS CORP.
