Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer solvent container filler neck to the washer solvent container, pressing in until fully seated.
  2. Install the washer solvent container filler neck push-in retainer.
  3. Close the hood.

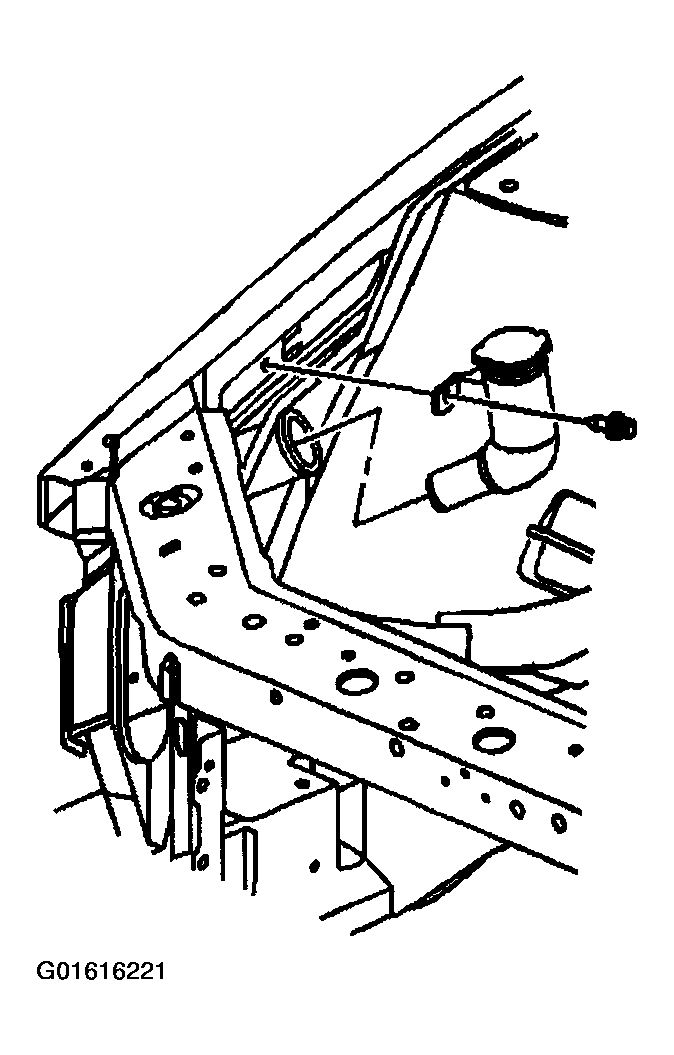

    Fig 1: Washer Solvent Container Filler Neck
    G01616221Courtesy of GENERAL MOTORS CORP.
