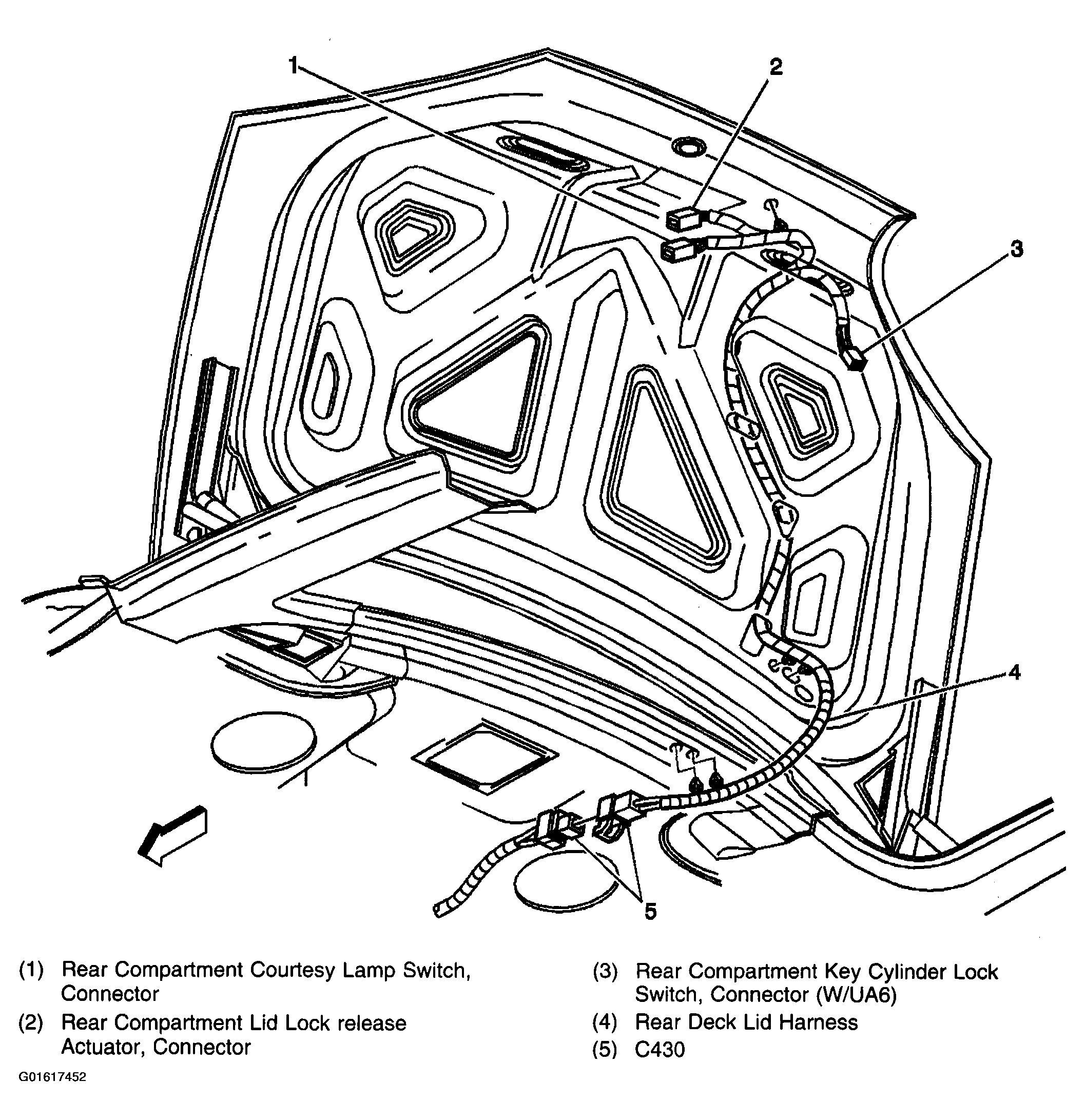

Fig 1: Inside Rear Compartment Lid Component View
Courtesy of GENERAL MOTORS CORP.

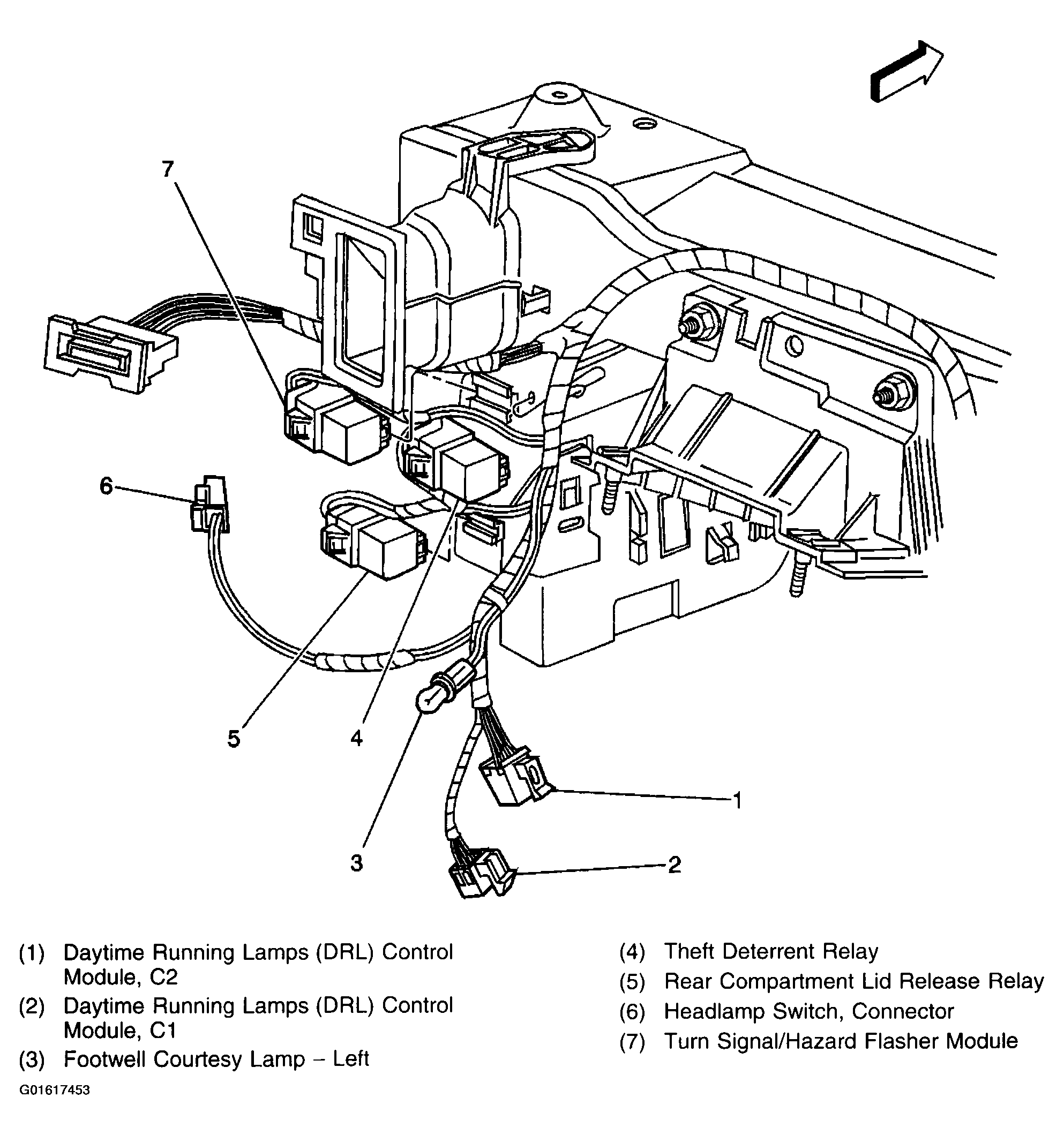

Fig 2: LH Side Of I/P Component View
Courtesy of GENERAL MOTORS CORP.

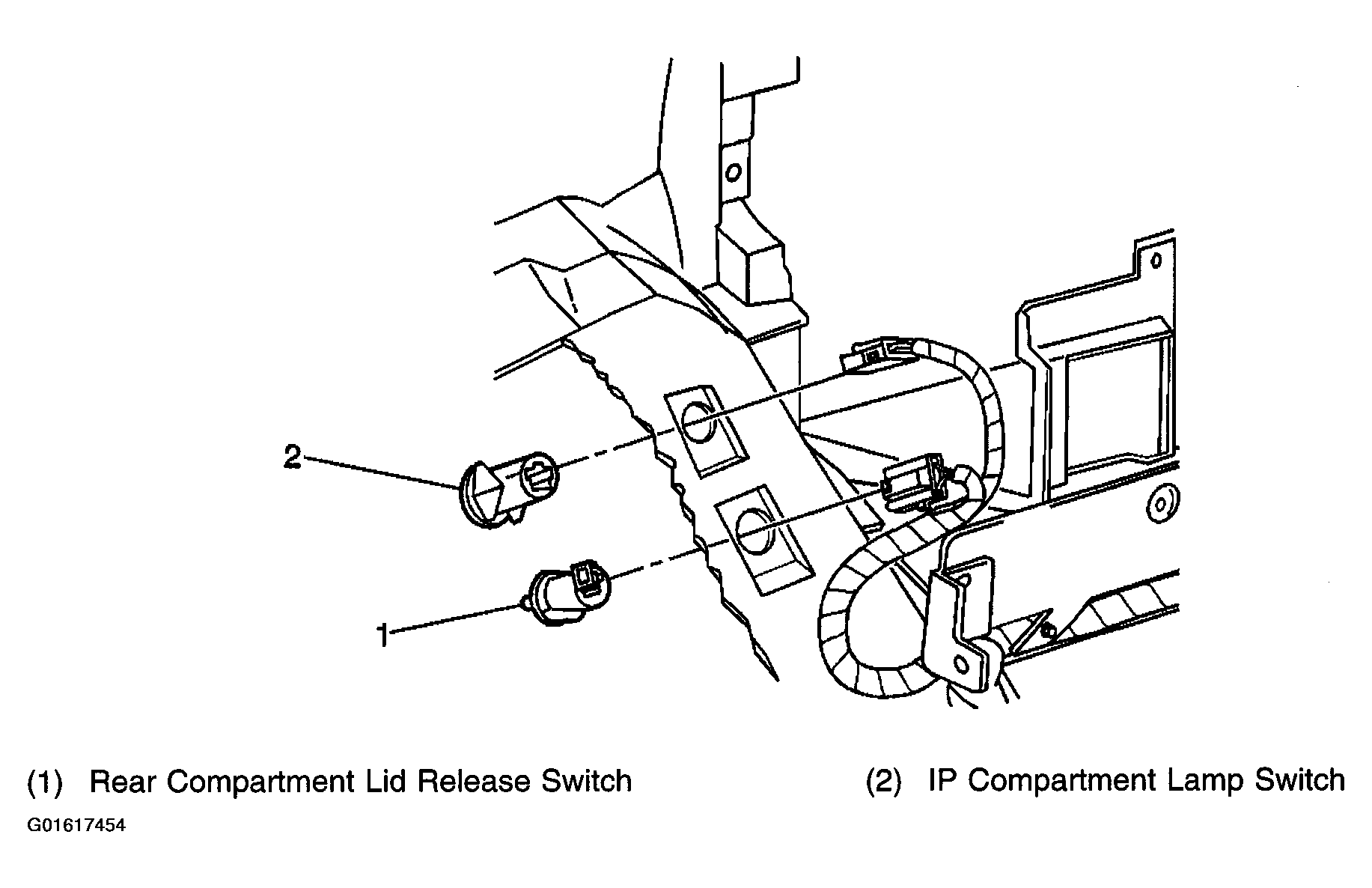

Fig 3: Right Side Of Instrument Panel Component View
