Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

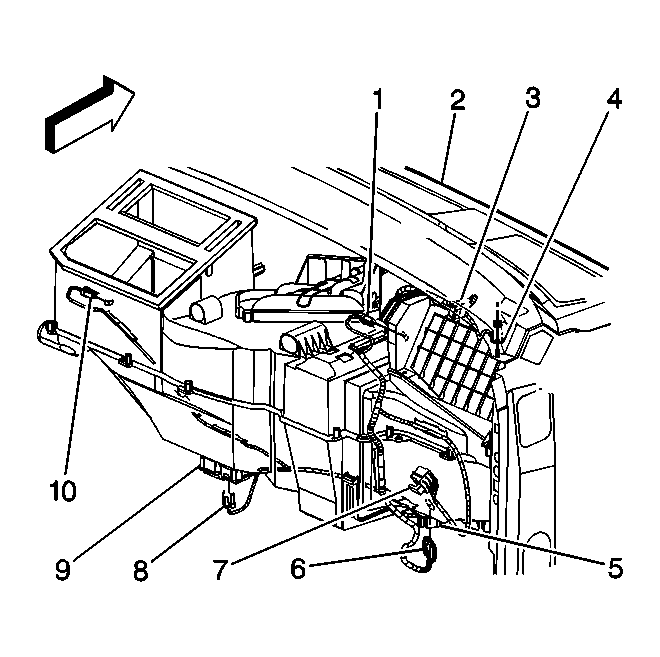

Fig 1: View of Recirculation Actuator

Courtesy of GENERAL MOTORS CORP.

Install the recirculation actuator.

NOTE: Refer to FASTENER NOTICE .

Install the recirculation actuator retaining screws.
Tighten: Tighten the screws to 1.6 N.m (14 lb in).

Fig 2: Identifying Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector to the recirculation actuator (1).
Install the air distribution duct.
