ABS Schematics

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

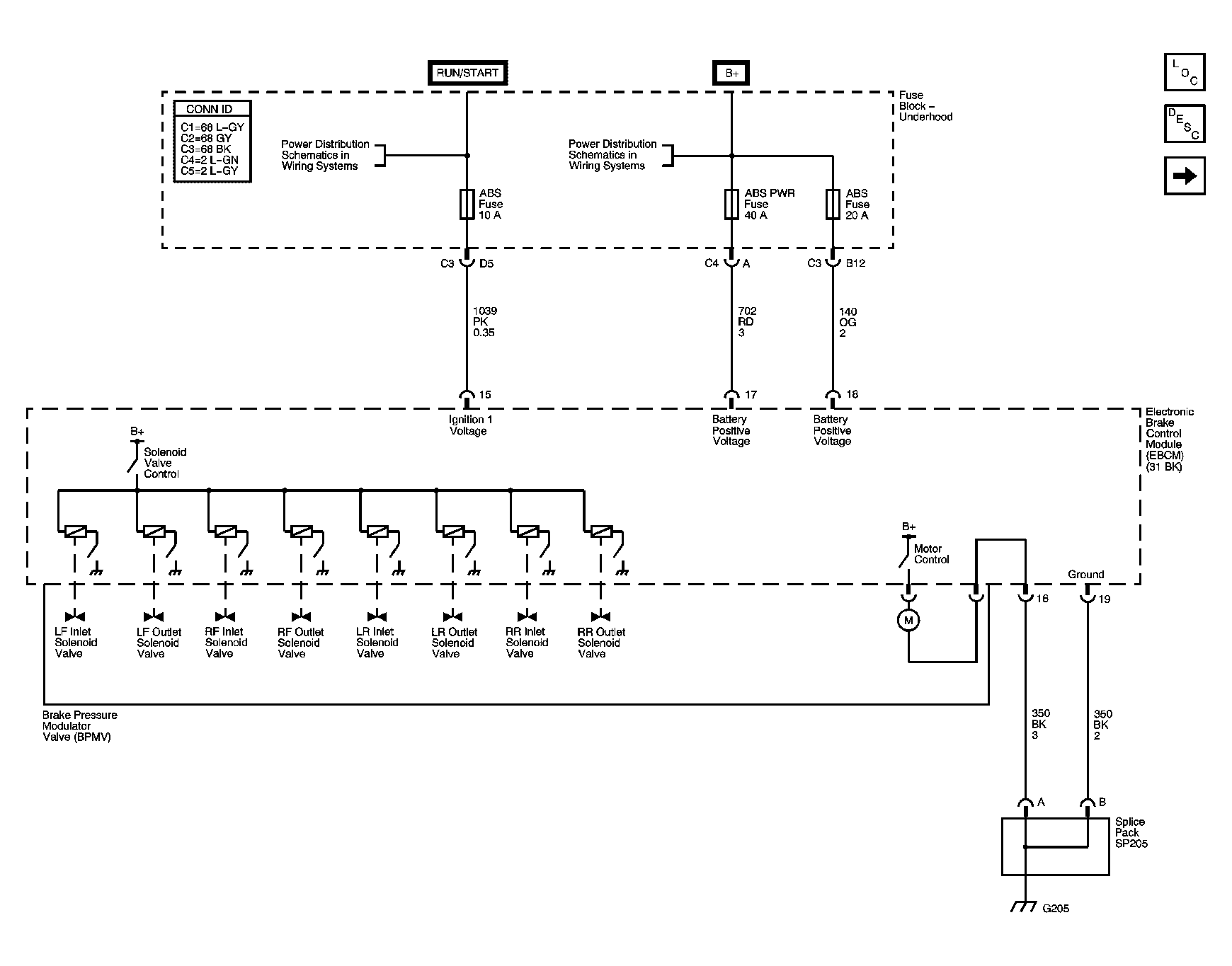

Fig 1: EBCM Power & Ground

Courtesy of GENERAL MOTORS CORP.

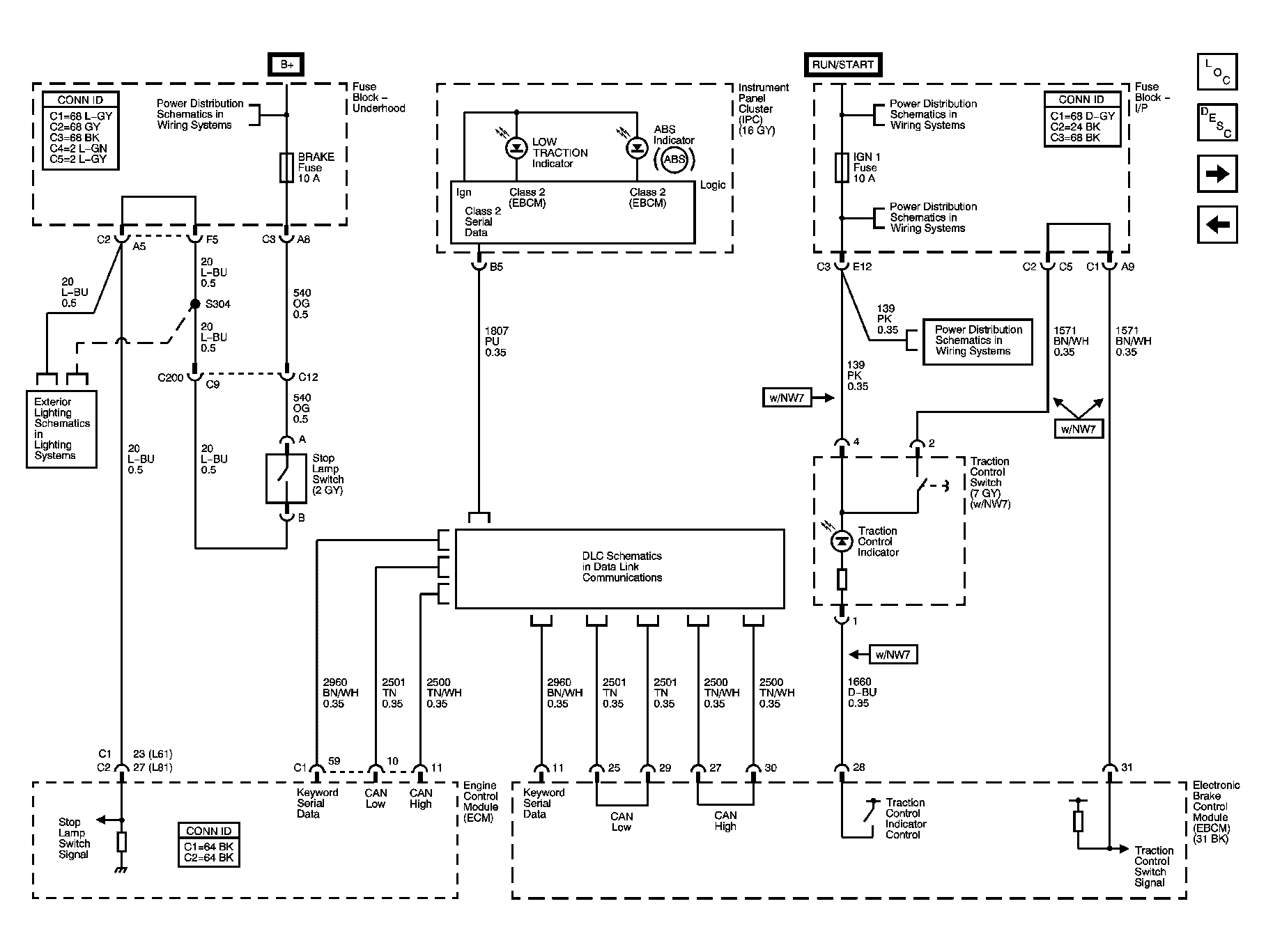

Fig 2: Indicators & Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

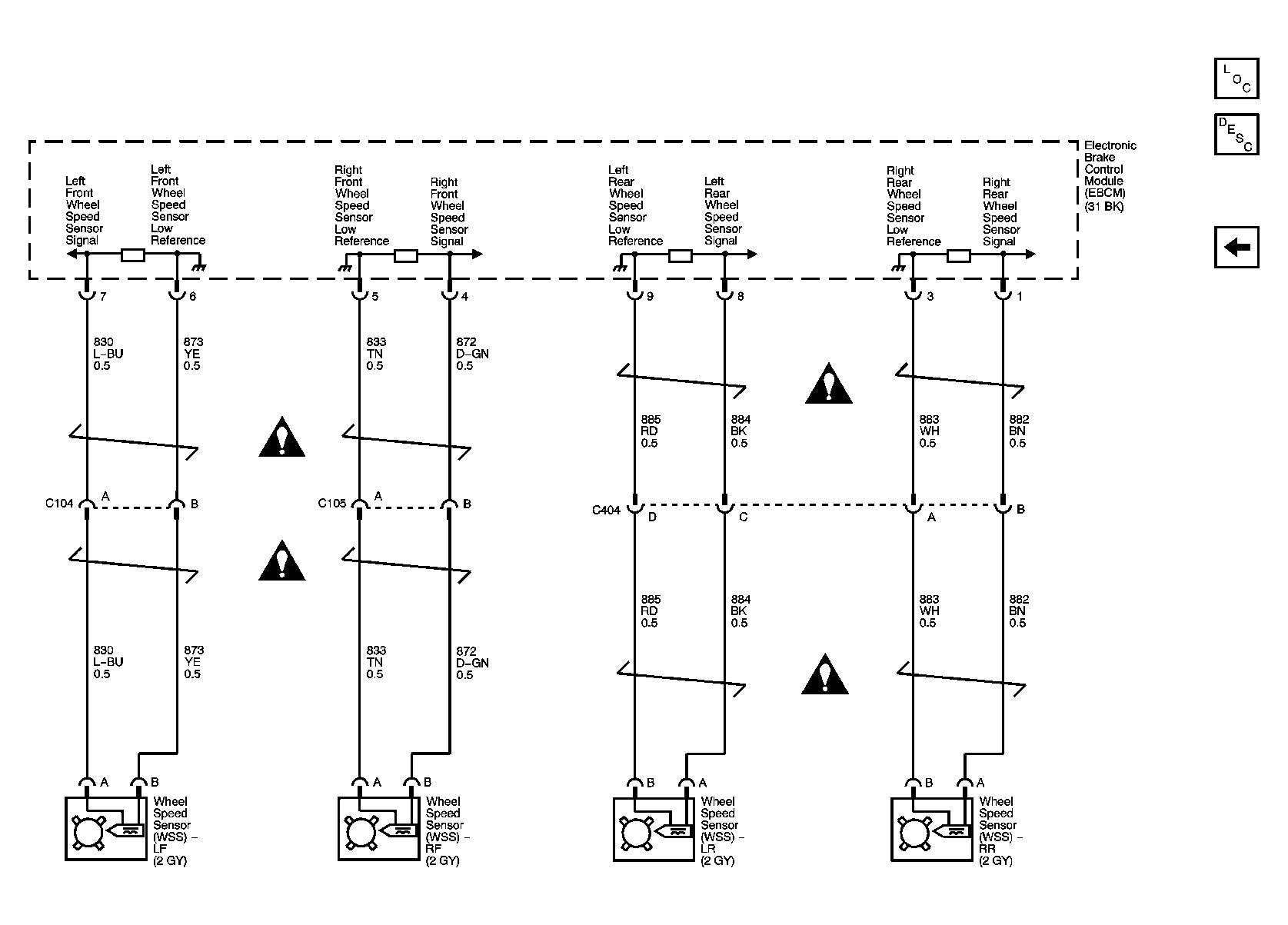

Fig 3: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.
