Fuse Block-I/P C3

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

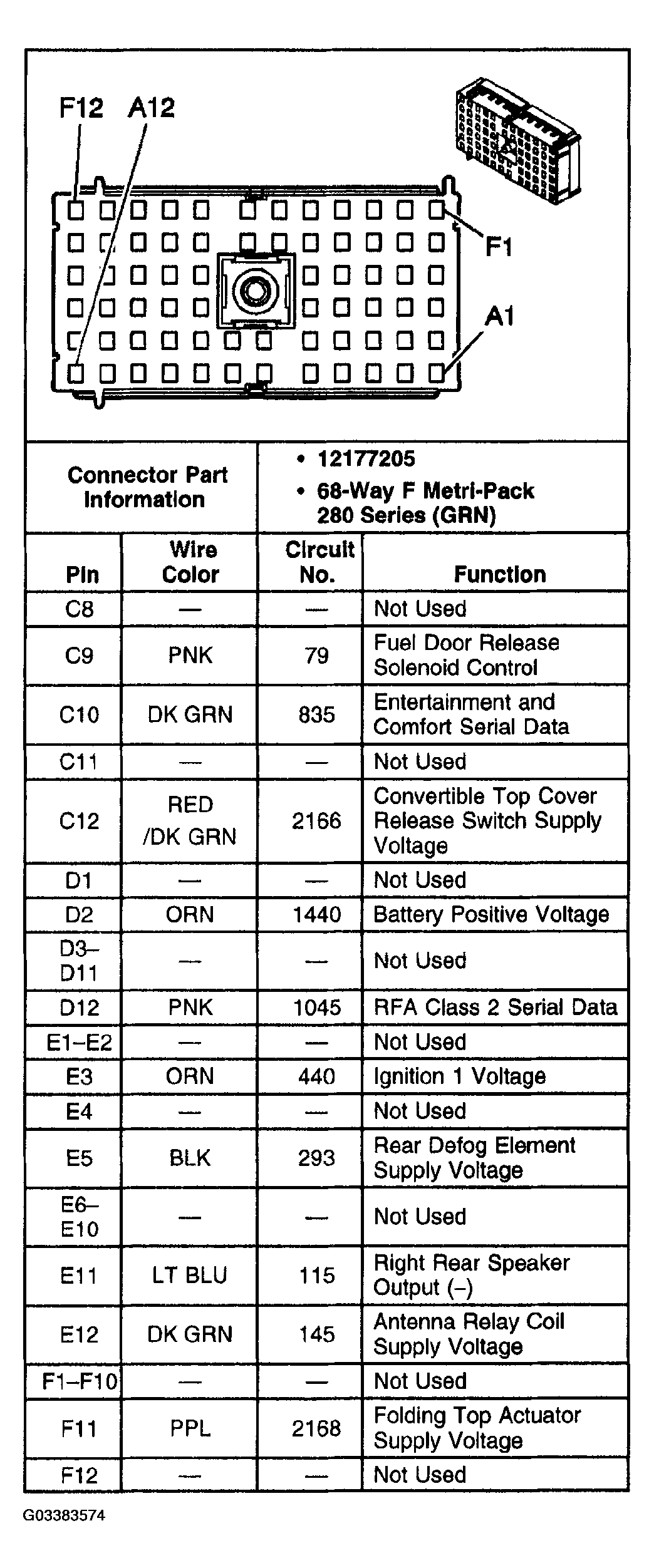

Fig 1: Identifying Fuse Block - I/P C3 Connector (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Fuse Block - I/P C3 Connector (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
