Fuse Block-I/P C8

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

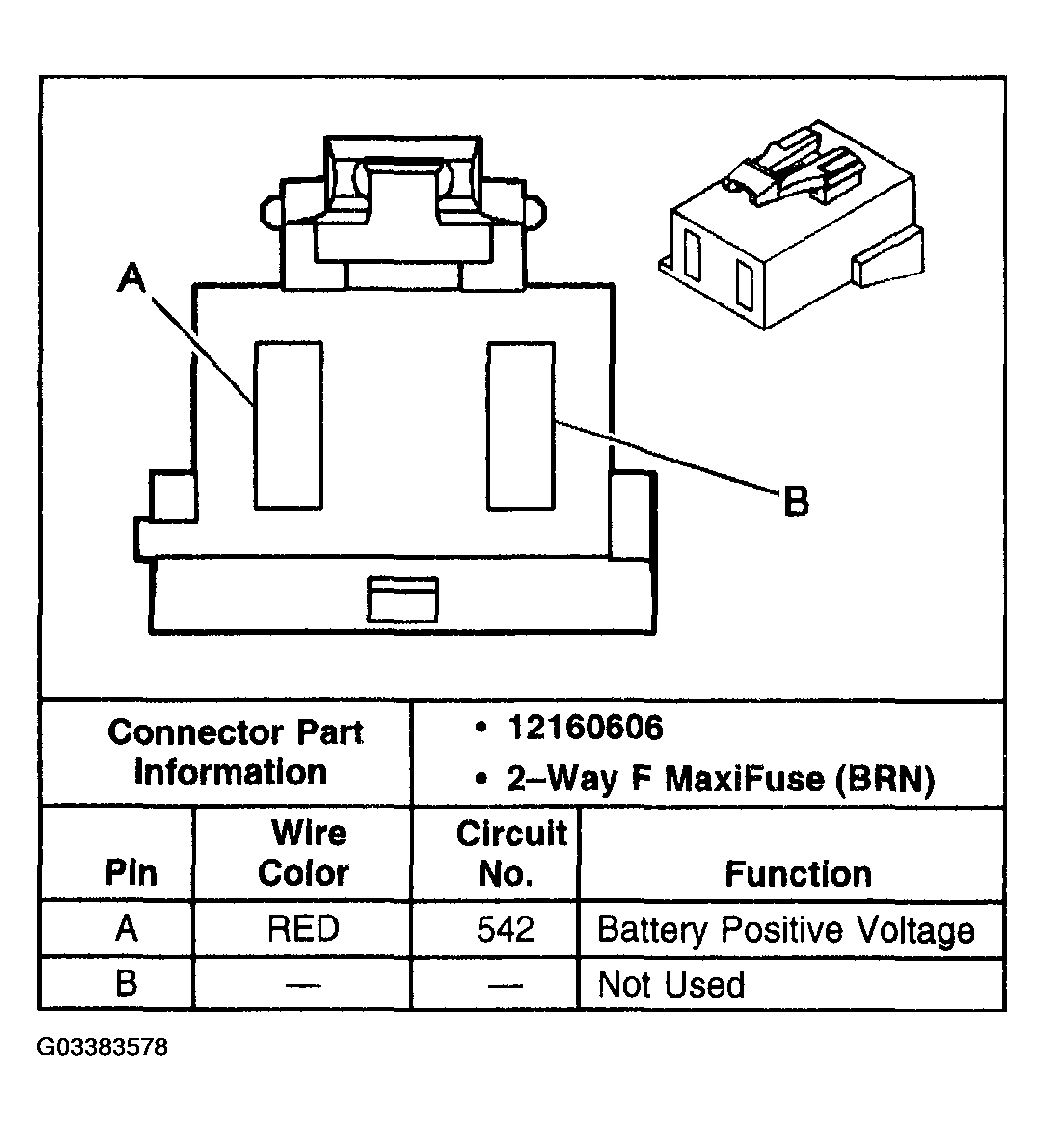

Fig 1: Identifying Fuse Block - I/P C8 Connector
G03383578Courtesy of GENERAL MOTORS CORP.
