Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission support to the frame. (15 series)

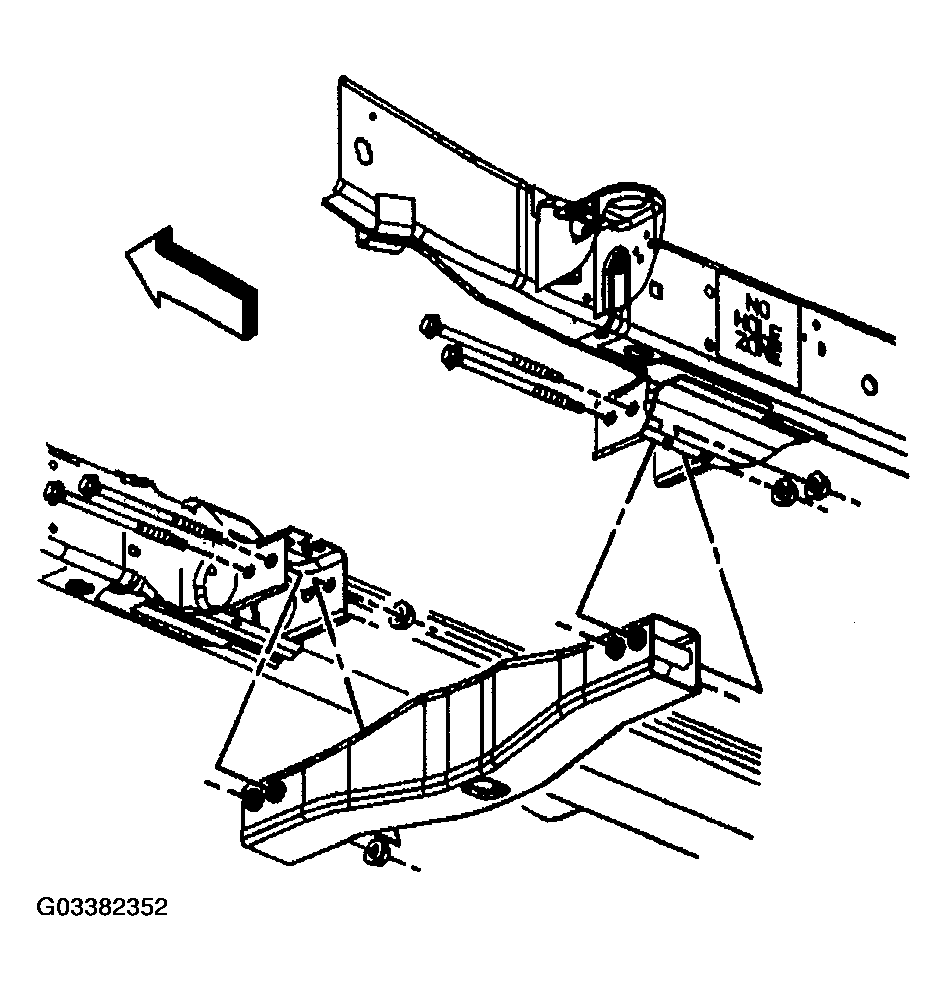

    Fig 1: Installing Transmission Support To Frame (15 Series)
    G03382352Courtesy of GENERAL MOTORS CORP.
  2. Install the transmission support to the frame. (25/35 series)
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the bolts and the nuts in order to retain the transmission support to the frame.

    Tighten

    Tighten the nuts to 95 N.m (70 lb ft).

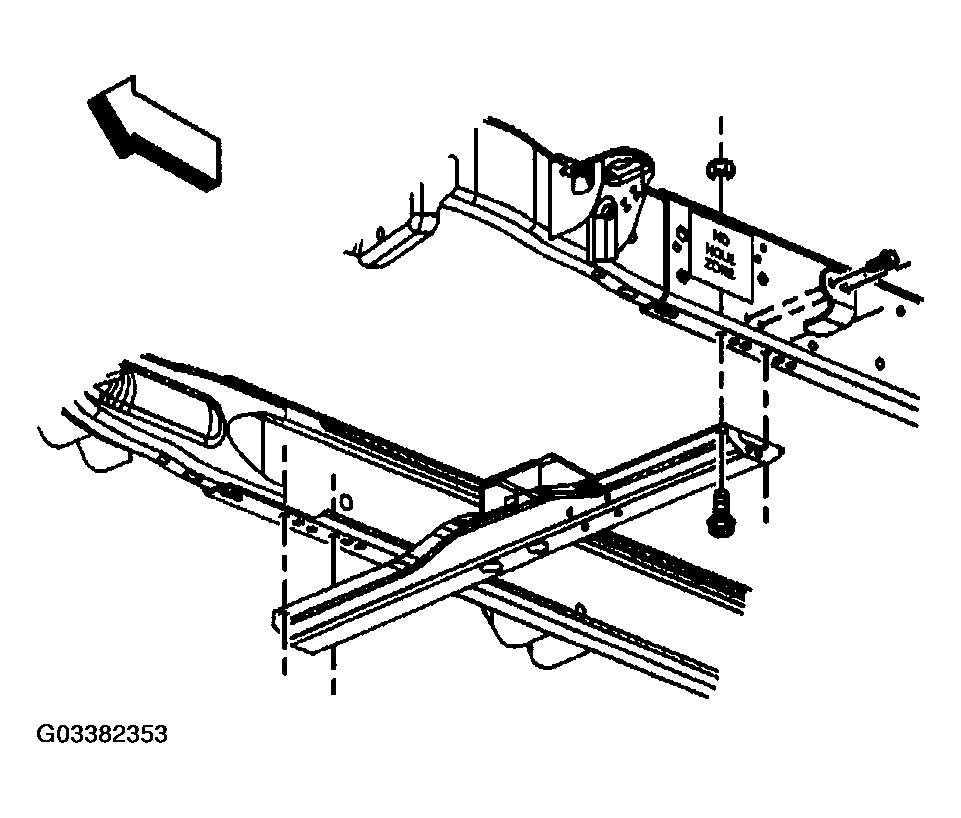

    Fig 2: Installing Transmission Mount
    G03382353Courtesy of GENERAL MOTORS CORP.
  4. Lower the rear of the transmission.
  5. Install the transmission mount to the transmission support.
  6. Install the nuts in order to retain the transmission mount to the transmission support.

    Tighten

    Tighten the nuts to 40 N.m (30 lb ft).

  7. Remove the transmission jack.
  8. Lower the vehicle.

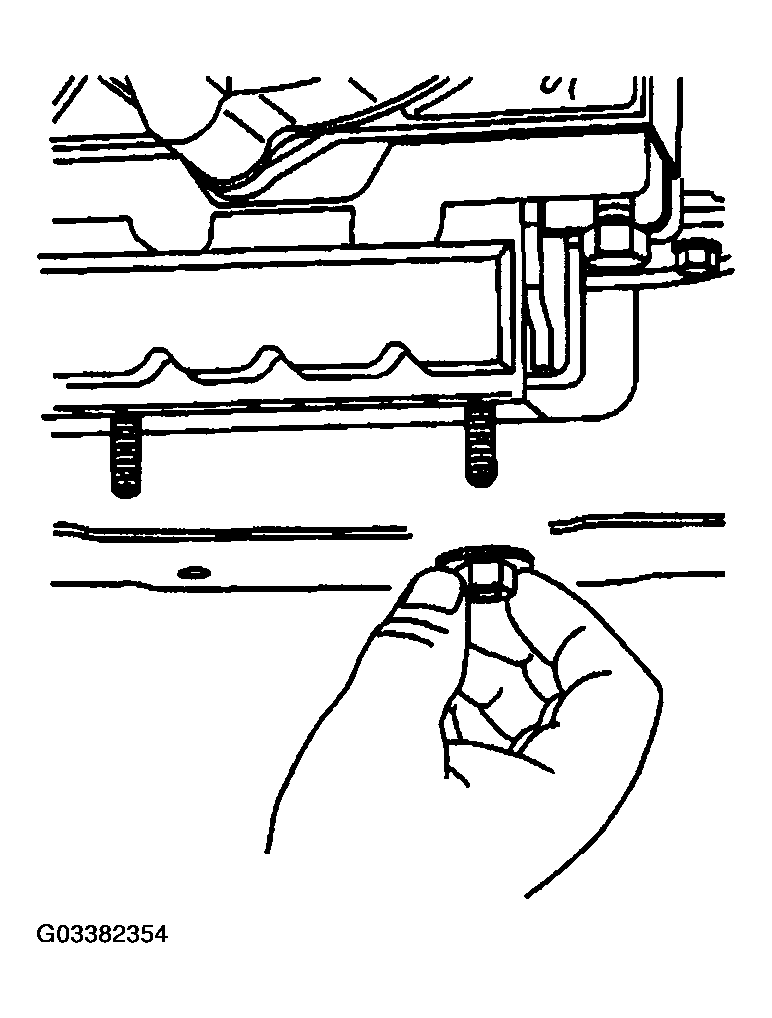

    Fig 3: Installing Nuts In Order To Retain Transmission Mount To Transmission Support
    G03382354Courtesy of GENERAL MOTORS CORP.
