No. 6 Car-Navigation Control Switch Is Inoperative

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

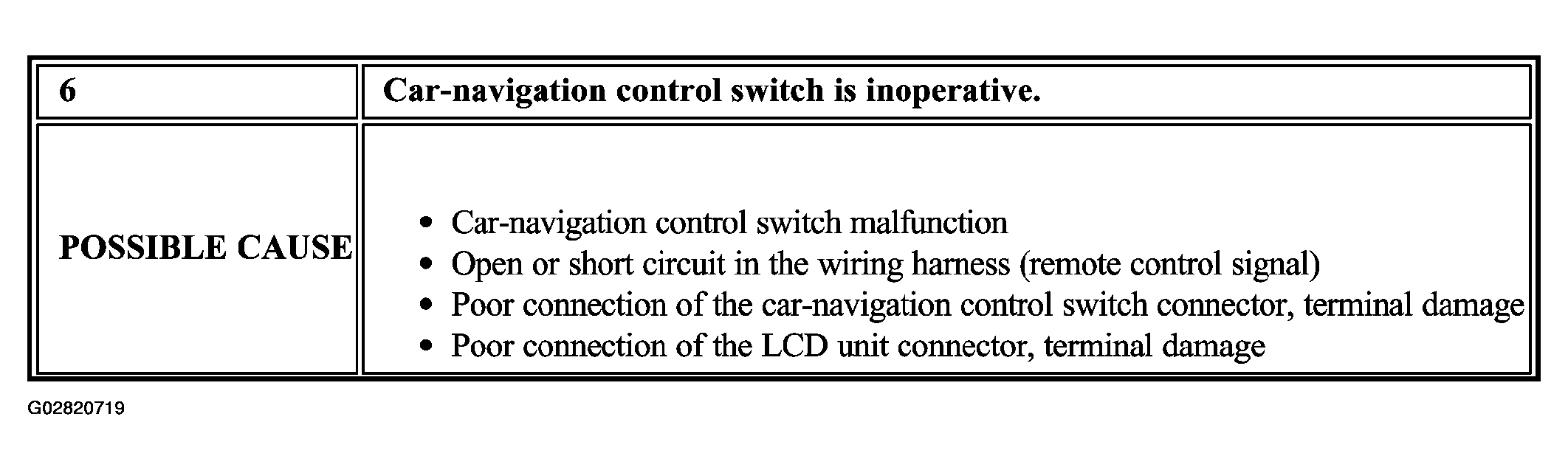

Fig 1: No.6 Car-Navigation Control Switch Is Inoperative - Possible Cause Chart

Courtesy of MAZDA MOTORS CORP.

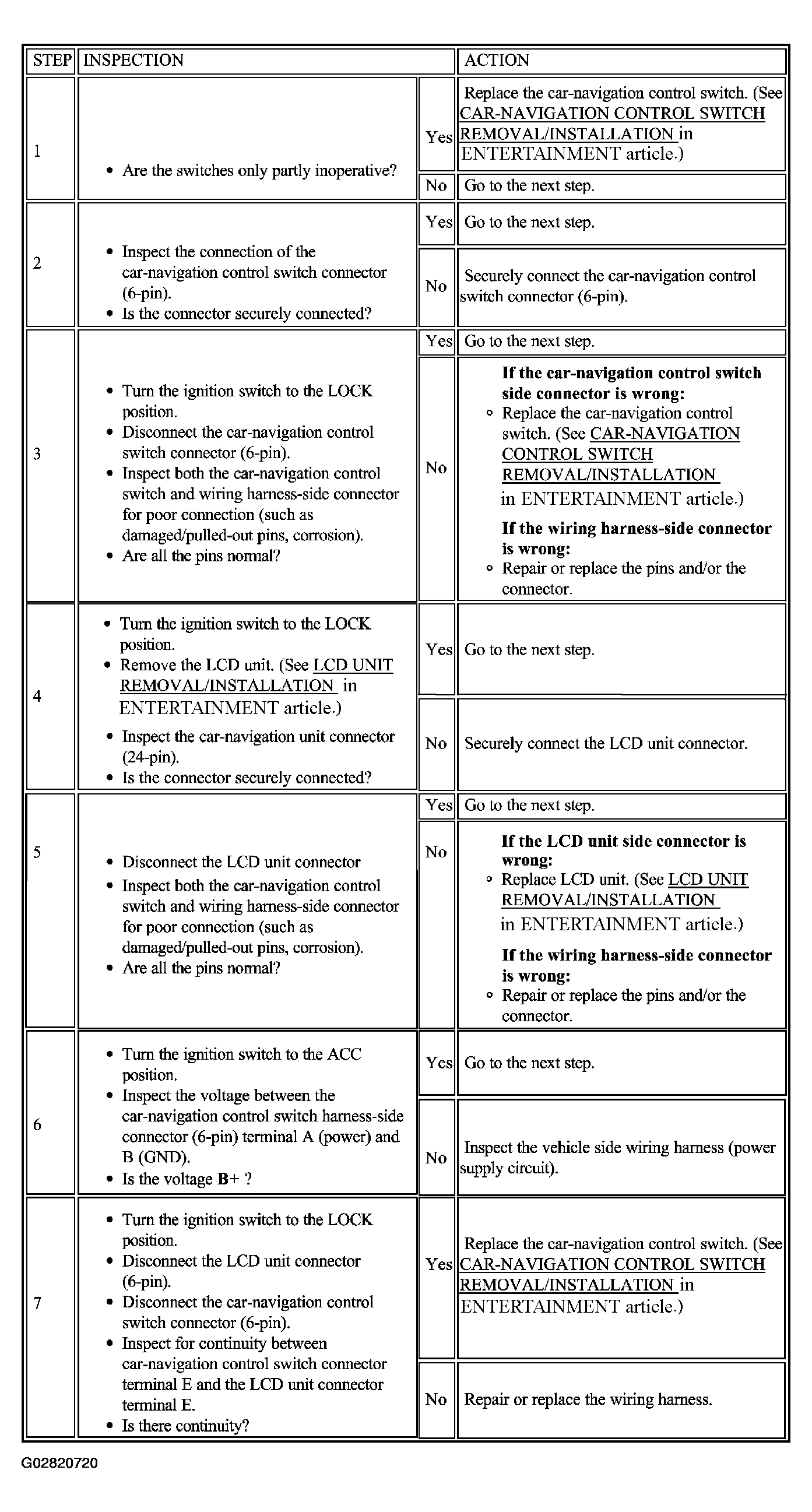

Fig 2: No.6 Car-Navigation Control Switch Is Inoperative - Diagnostic Procedure

Courtesy of MAZDA MOTORS CORP.
