Console Trim Plate Replacement

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

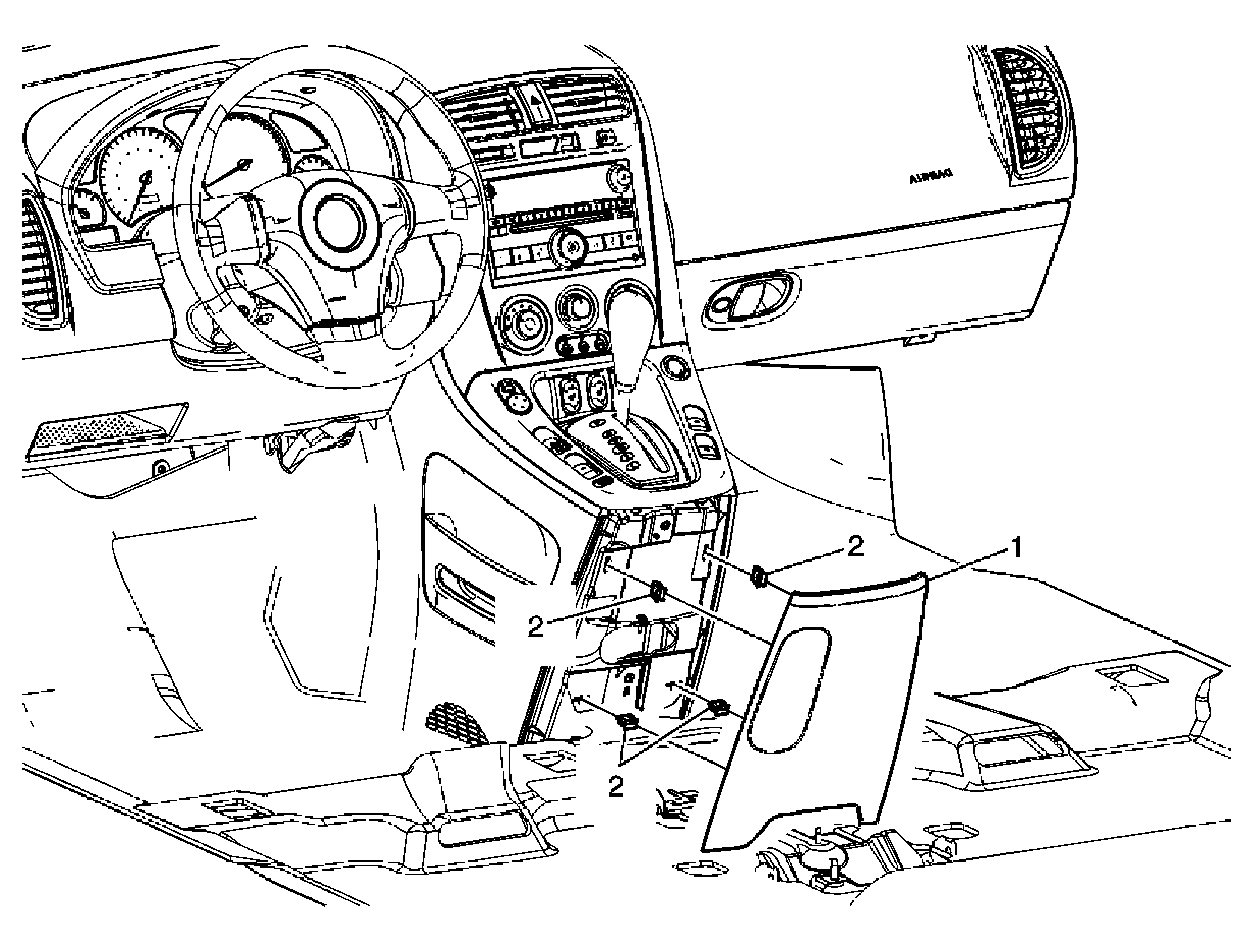

Fig 1: Trim Plate Replacement And Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the front floor console. Refer to Front Floor Console Replacement .
1	Console Trim Panel Assembly - Rear
2	Retainer Clips (Qty: 4)
