Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

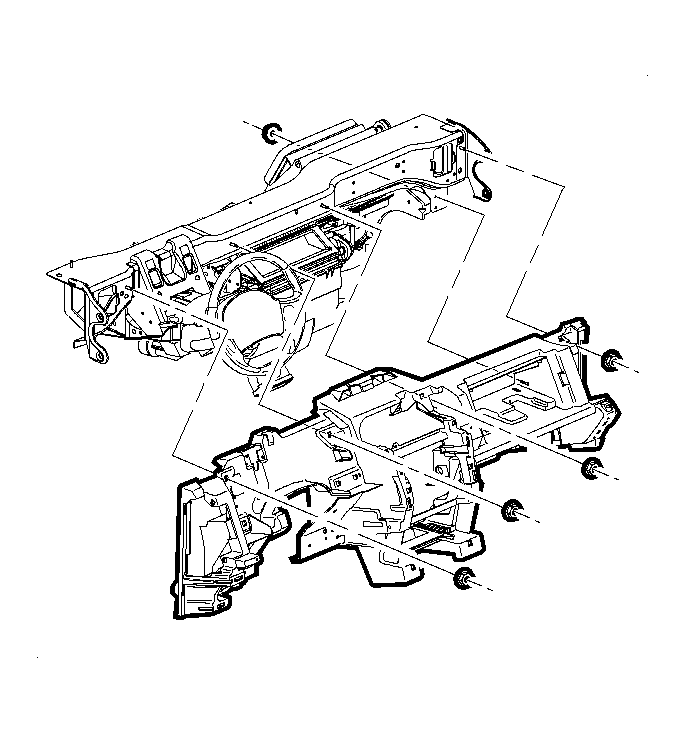

Fig 1: Removing/Installing I/P Retainer Nuts & Bolts

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Insulators are required between the I/P retainer and the cross car beam.

Verify that an insulator is present at each interface of the I/P retainer to the cross car beam. Install insulators where necessary.
Install the I/P retainer by aligning the center 4-way locator first and then the outboard up/down locators with the corresponding holes in the cross car beam.

NOTE: Refer to Fastener Notice .

Beginning in the center of the I/P, install the I/P retainer nuts and bolts.
Tighten: Tighten the bolts to 10 N.m (89 lb in).
Connect the I/P grounds to the I/P.

Fig 2: Removing/Installing Bolts From The Passenger SIR System

Courtesy of GENERAL MOTORS CORP.

Position the passenger side frontal SIR component.
Install the bolts to the SIR component.
Tighten: Tighten the bolts to 10 N.m (89 lb in).

Fig 3: View Of Center Pillar Lower Garnish Molding

Courtesy of GENERAL MOTORS CORP.

Install the front carpet retainers. Refer to Front Carpet Retainer Replacement .
Install the DLC in the I/P retainer.

Fig 4: Disconnecting/Connecting Body Control Module (BCM) Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the BCM wiring to the BCM.

Fig 5: Removing/Installing Screw From The Radio Ground Strap

Courtesy of GENERAL MOTORS CORP.

Position the I/P electrical center on the H-brace bracket tabs.
Position the radio ground strap.
Install the screw to the radio ground strap.
Tighten: Tighten the bolts to 10 N.m (89 lb in).

Fig 6: Removing/Installing I/P Cluster Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Install the I/P cluster electrical connector into the slot in the I/P retainer.

Fig 7: Removing/Installing Screws To The Outlet Ducts

Courtesy of GENERAL MOTORS CORP.

Position the right and the left air outlet ducts.
Install the screws to the outlet ducts.
Tighten: Tighten the screws to 2.5 N.m (22 lb in).

Fig 8: Removing/Installing Front Console Trim Panels

Courtesy of GENERAL MOTORS CORP.

Position the right and the left trim panels on the front console.
Install the screws to the front console trim panels.
Tighten: Tighten the screws to 2.5 N.m (22 lb in).

Fig 9: Removing/Installing Center Trim Plate

Courtesy of GENERAL MOTORS CORP.

Position the center trim plate to the front console. Push on the plate until the trim clips engage.

Fig 10: View Of Auxiliary Power Outlet Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Lift the rear of the center floor console.
Connect the electrical connector to the auxiliary power outlet.
Reposition the center console.

Fig 11: Removing/Installing Cup Holder Liner

Courtesy of GENERAL MOTORS CORP.

Install the cup holder to the center console.
Tighten: Tighten the screw to 2.5 N.m (22 lb in).

Fig 12: Locating Console Screws

Courtesy of GENERAL MOTORS CORP.

Position the front seats rearward.
Reach under the front seats to access the lower console screws.
Install the center console screws.
Tighten: Tighten the screw to 2.5 N.m (22 lb in).

Fig 13: Disconnecting/Connecting Radio Antenna, Ground Strap, and Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Connect the radio antenna, the ground strap, and the electrical connector.

Fig 14: View of Radio & Screws

Courtesy of GENERAL MOTORS CORP.

Position the radio in the I/P retainer.
Install the radio screws.
Tighten: Tighten the screws to 2.5 N.m (22 lb in).

Fig 15: View Of Instrument Panel (I/P) Retainer

Courtesy of GENERAL MOTORS CORP.

Position the I/P cluster and install by pushing the cluster forward.
Install the cluster screws.
Tighten: Tighten the screws to 2 N.m (18 lb in).
Install the I/P compartment. Refer to Instrument Panel Compartment Replacement .
Install the I/P upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement .
Enable the frontal SIR system. Refer to SIR Disabling and Enabling .
