Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

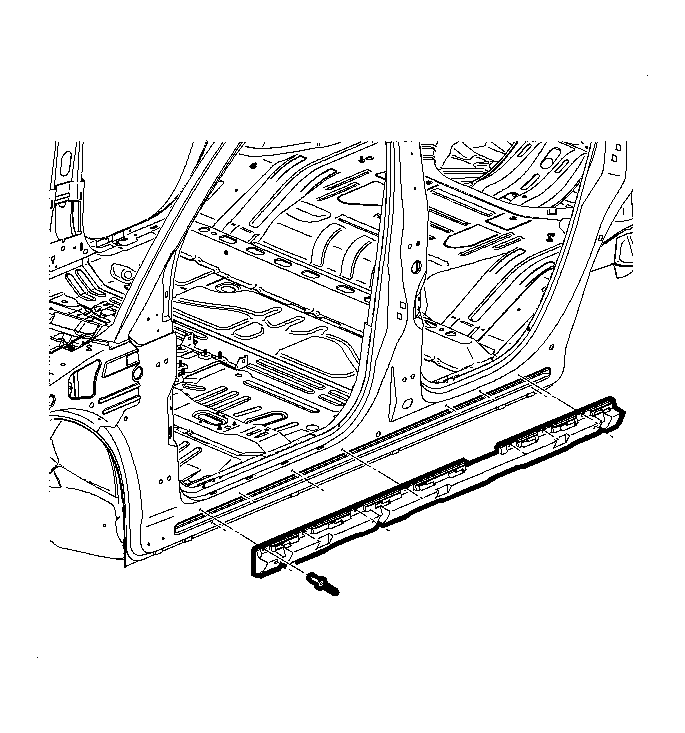

    Fig 1: View Of Rocker Panel Molding Support
    GM929258Courtesy of GENERAL MOTORS CORP.
  1. Position the rocker panel support to the vehicle.
  2. Install the rocker panel to structure rivets.
  3. Install the rocker panel molding. Refer to Rocker Panel Molding Replacement .
