Installation Procedure
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

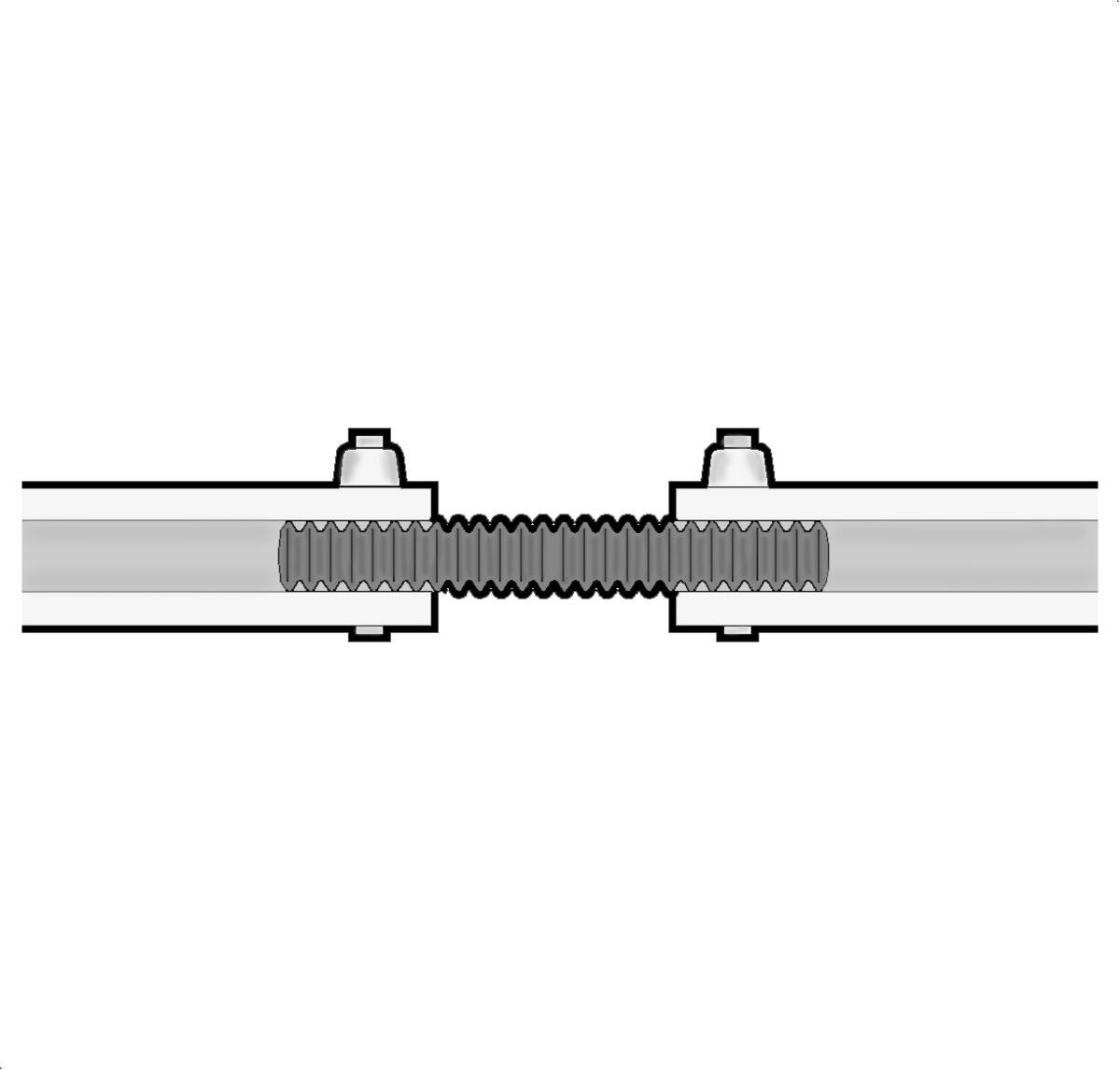

- Replace the damaged section of the rear washer hose.
- Use a 9.5 mm (3/8 in) vacuum hose to replace damaged section.
- Overlap the rear washer hose, the plastic tubing, by 10 mm (0.39 in) on each end.
- Retain each end of the vacuum hose with a 100 mm (4 in) cable tie.
- Verify the repair by activating the washer system and checking for leaks.

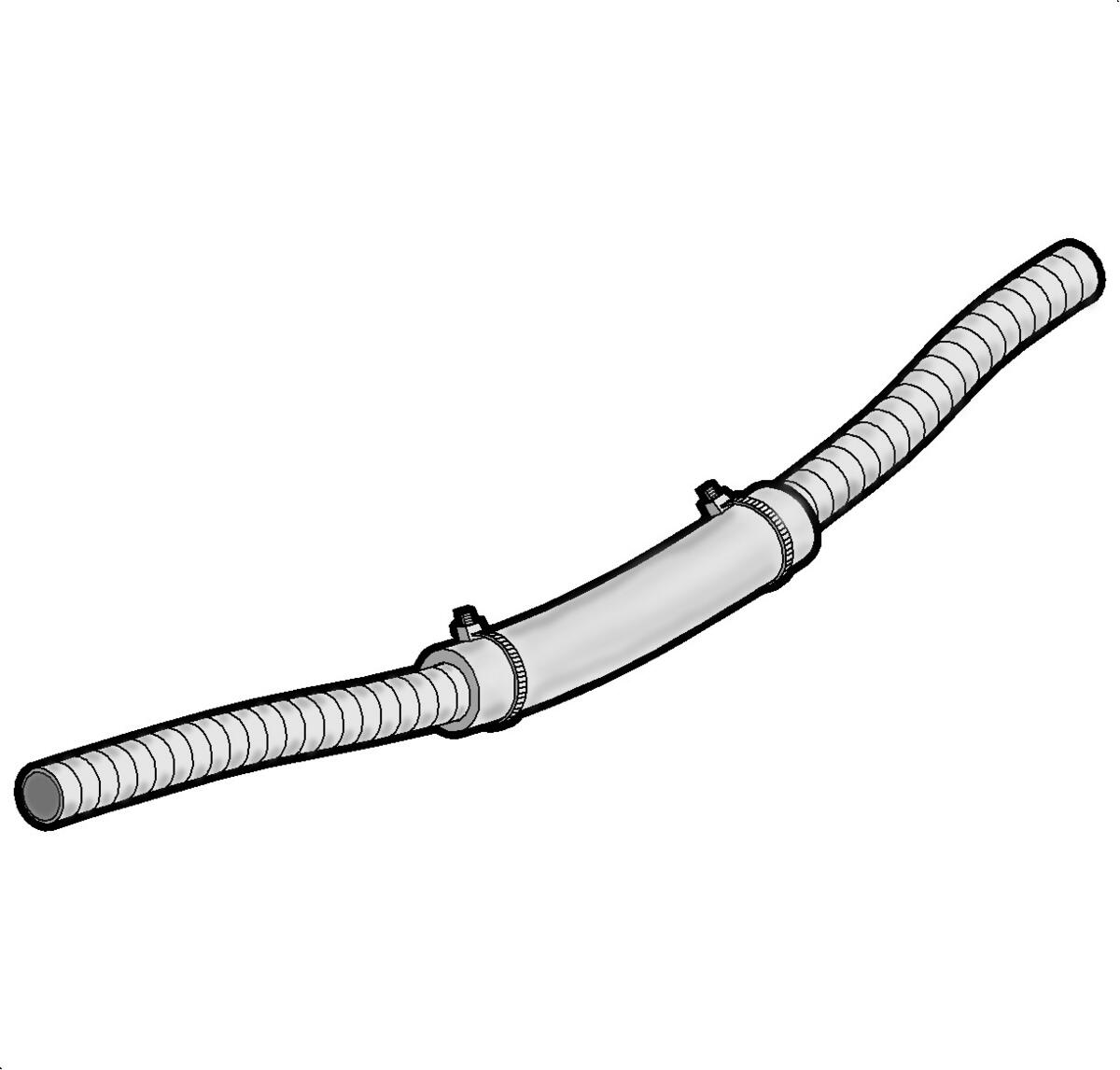

- If the leak was located inside the main body wire harness, use electrical tape to retain the repaired section to the wire harness.
- If the leak requires the rear washer hose to be removed in the front of dash grommet do the following:
- Cut out the auxiliary washer hose hole from the grommet.
- Pass new section of the rear washer hose through the new grommet hose.
- Repair the hose on either side of the grommet.
