Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .

Fig 1: View Of Stabilizer Link At Lower Control Arm Nut

GM928802

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Hold the link with a wrench during nut removal.

Remove the stabilizer link to lower control arm nut.

Fig 2: View Of Trailing Arm Bracket To Body Bolts

GM930291

Courtesy of GENERAL MOTORS CORP.

Remove the trailing arm bracket to underbody bolts.

Fig 3: Positioning Support Stand Under The Lower Control Arm

GM928818

Courtesy of GENERAL MOTORS CORP.

Place a screw-type jackstand under the lower control arm.
Using the jackstand, compress the coil spring.

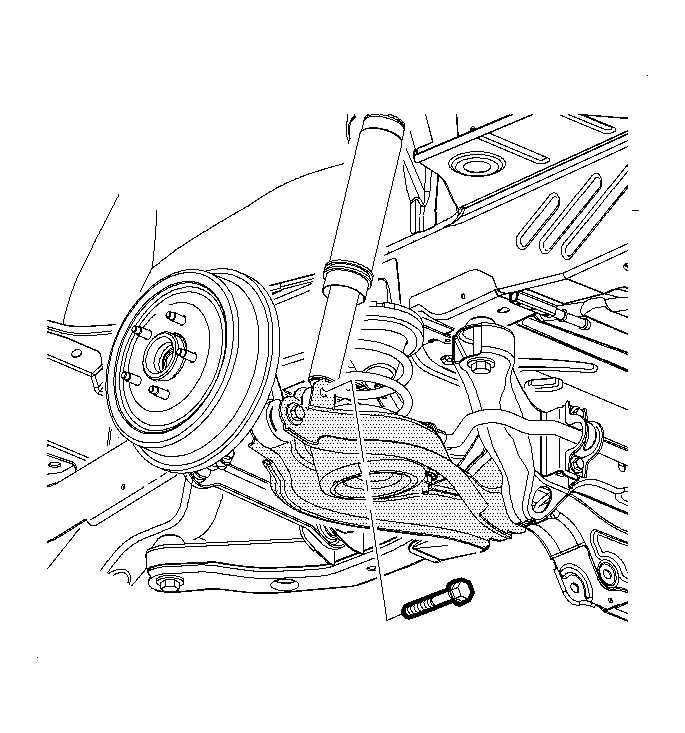

Fig 4: Removing/Installing Lower Shock Absorber Mounting Bolt & Nut

GM928822

Courtesy of GENERAL MOTORS CORP.

Remove the lower shock bolt.

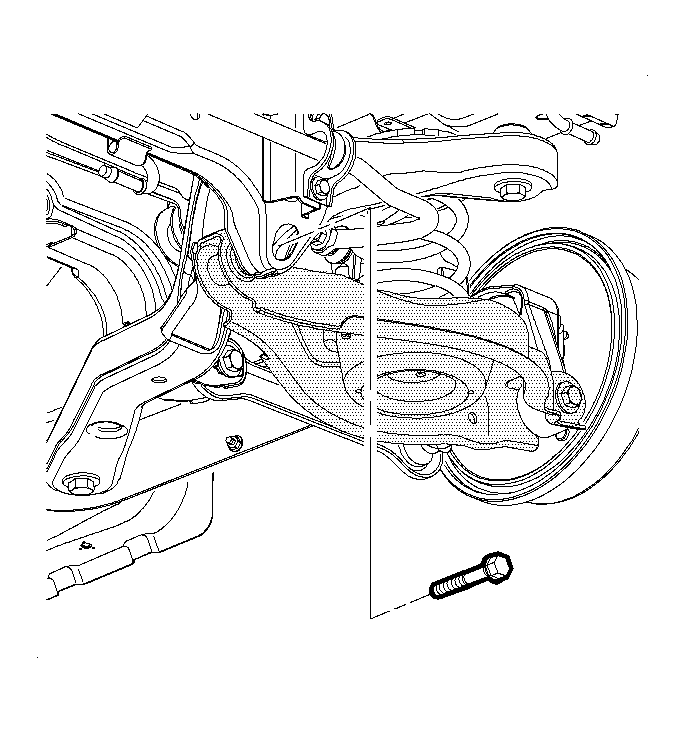

Fig 5: Lower Control Arm & Frame Bolt

GM928823

Courtesy of GENERAL MOTORS CORP.

Loosen the lower control arm to support frame bolt.

Fig 6: Removing/Installing Lower Control Arm On The Suspension Knuckle Bolt & Nut

GM928825

Courtesy of GENERAL MOTORS CORP.

Remove the lower control arm to knuckle nut and bolt.

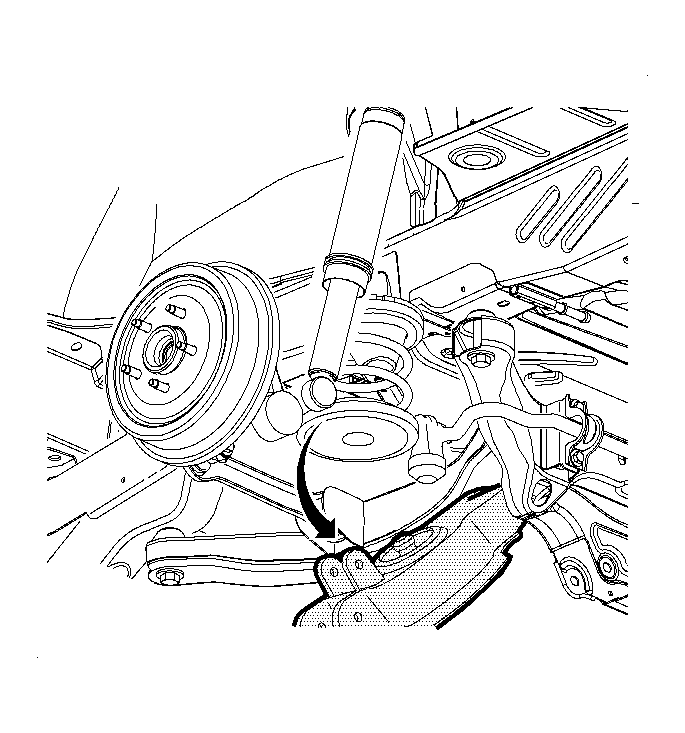

Fig 7: Lowering Support Stand Slowly Until Coil Spring Tension Relieved

GM929563

Courtesy of GENERAL MOTORS CORP.

Lower the control arm in order to unload the coil spring.
Remove the coil spring.
