Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

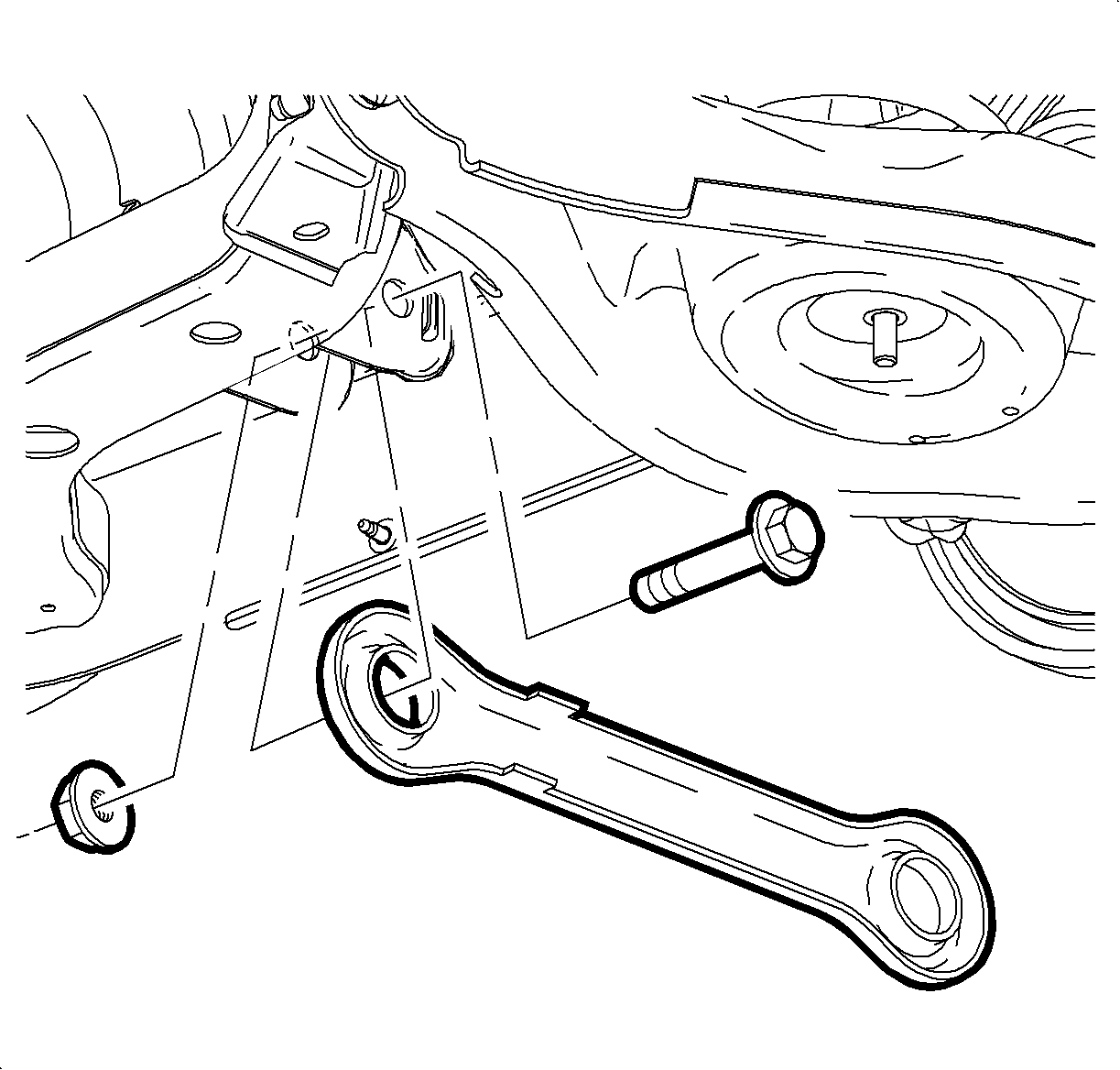

Fig 1: Toe Link, Support Nut & Bolt

Courtesy of GENERAL MOTORS CORP.

Install the toe link to the support assembly.

IMPORTANT:

Install the bolt with the head towards the front of the vehicle.
Position the cam nut in same position as in the upper control arm.

Install the toe link to support nut and bolt.

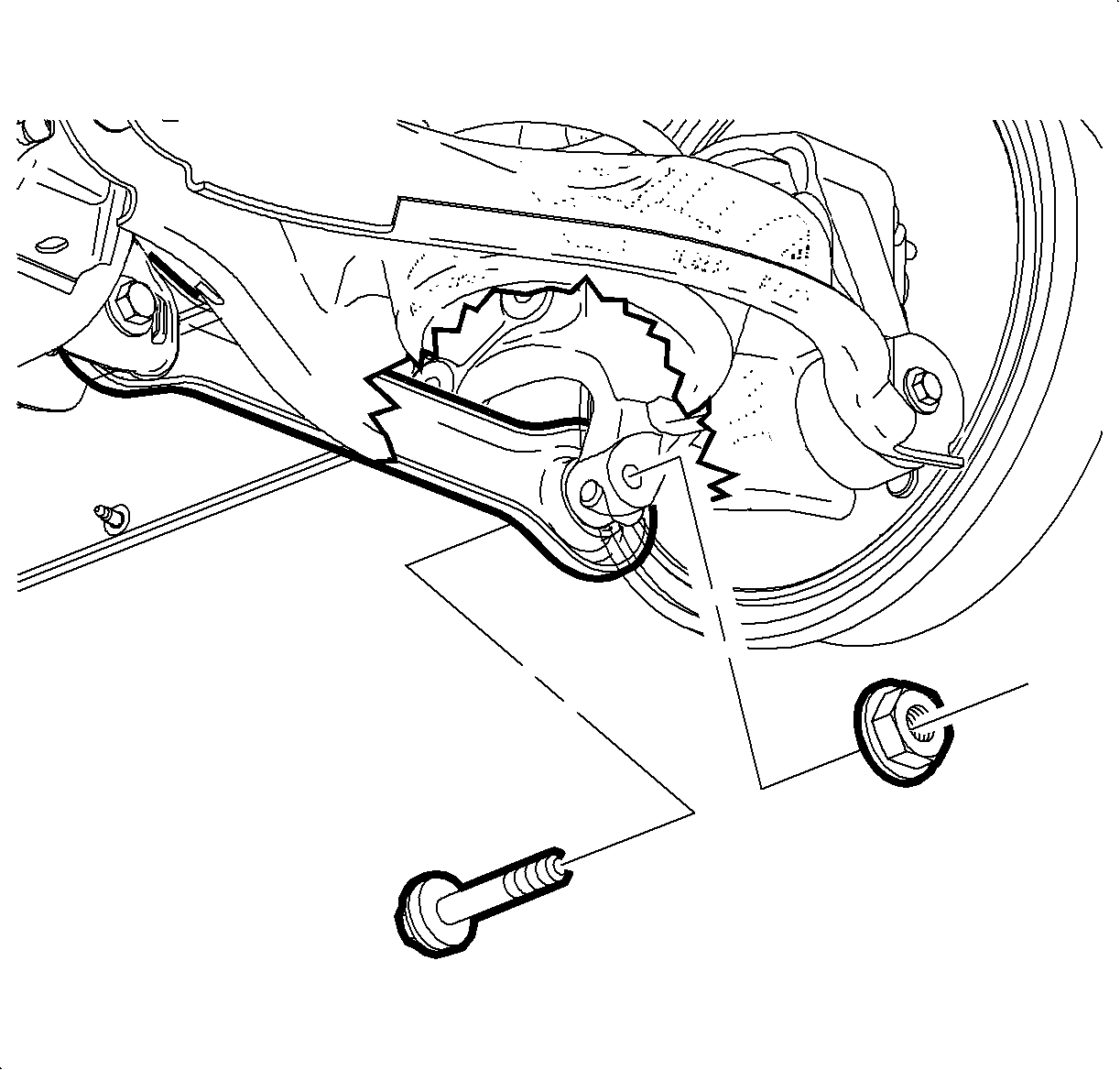

Fig 2: Removing/Installing Washer, Bolt & Nut On The Suspension Knuckle

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the toe link to the knuckle.
Tighten: Tighten the bolt to 160 N.m (118 lb ft).
Tighten the toe link to support bolt.
Tighten: Tighten the bolt to 160 N.m (118 lb ft).
Lower the vehicle.
Check the rear alignment. Refer to Measuring Wheel Alignment .
