Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

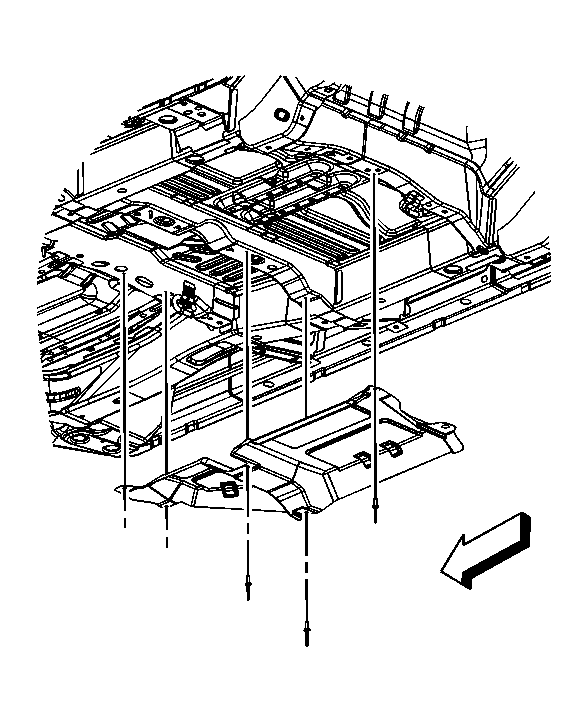

Fig 1: View Of Catalytic Converter Heat Shield

Courtesy of GENERAL MOTORS CORP.

Position the catalytic converter heat shield to the underbody.
Install NEW catalytic converter heat shield rivets.
Install the catalytic converter. Refer to one of the following:
- Catalytic Converter Replacement (2.2L (L61) and 2.4L (LAT))
- Catalytic Converter Replacement - Left Side (3.5L (L66)) and Catalytic Converter Replacement - Right Side (3.5L (L66))
