Rear Axle Disassembled Views
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

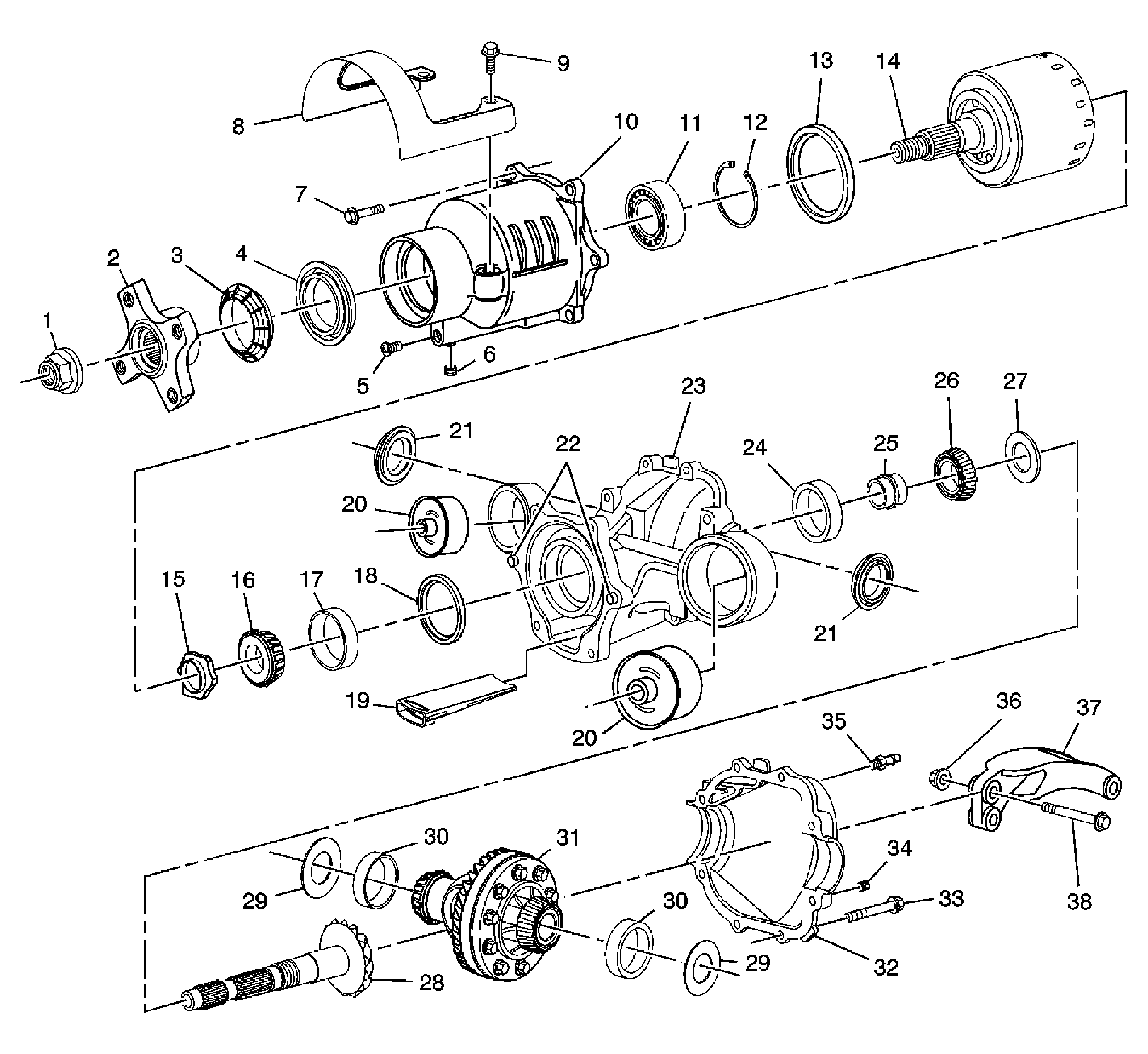

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Nut |
| 2 |
Input Flange |
| 3 |
Dust Shield |
| 4 |
Oil Seal |
| 5 |
Drain Plug |
| 6 |
Plug |
| 7 |
Bolt |
| 8 |
Shield |
| 9 |
Bolt |
| 10 |
Clutch Cover |
| 11 |
Bearing |
| 12 |
Snap Ring |
| 13 |
Seal |
| 14 |
Clutch Drum |
| 15 |
Pinion Nut |
| 16 |
Bearing |
| 17 |
Cup |
| 18 |
Seal |
| 19 |
Filter |
| 20 |
Mount |
| 21 |
Axle Seals |
| 22 |
Hollow Dowel |
| 23 |
Differential Carrier |
| 24 |
Cup |
| 25 |
Collapsible Spacer |
| 26 |
Bearing |
| 27 |
Shim |
| 28 |
Pinion Gear |
| 29 |
Shim |
| 30 |
Cup |
| 31 |
Differential Carrier Assembly |
| 32 |
Cover |
| 33 |
Bolt |
| 34 |
Fill Plug |
| 35 |
Vent |
| 36 |
Nut |
| 37 |
Bracket |
| 38 |
Bolt |

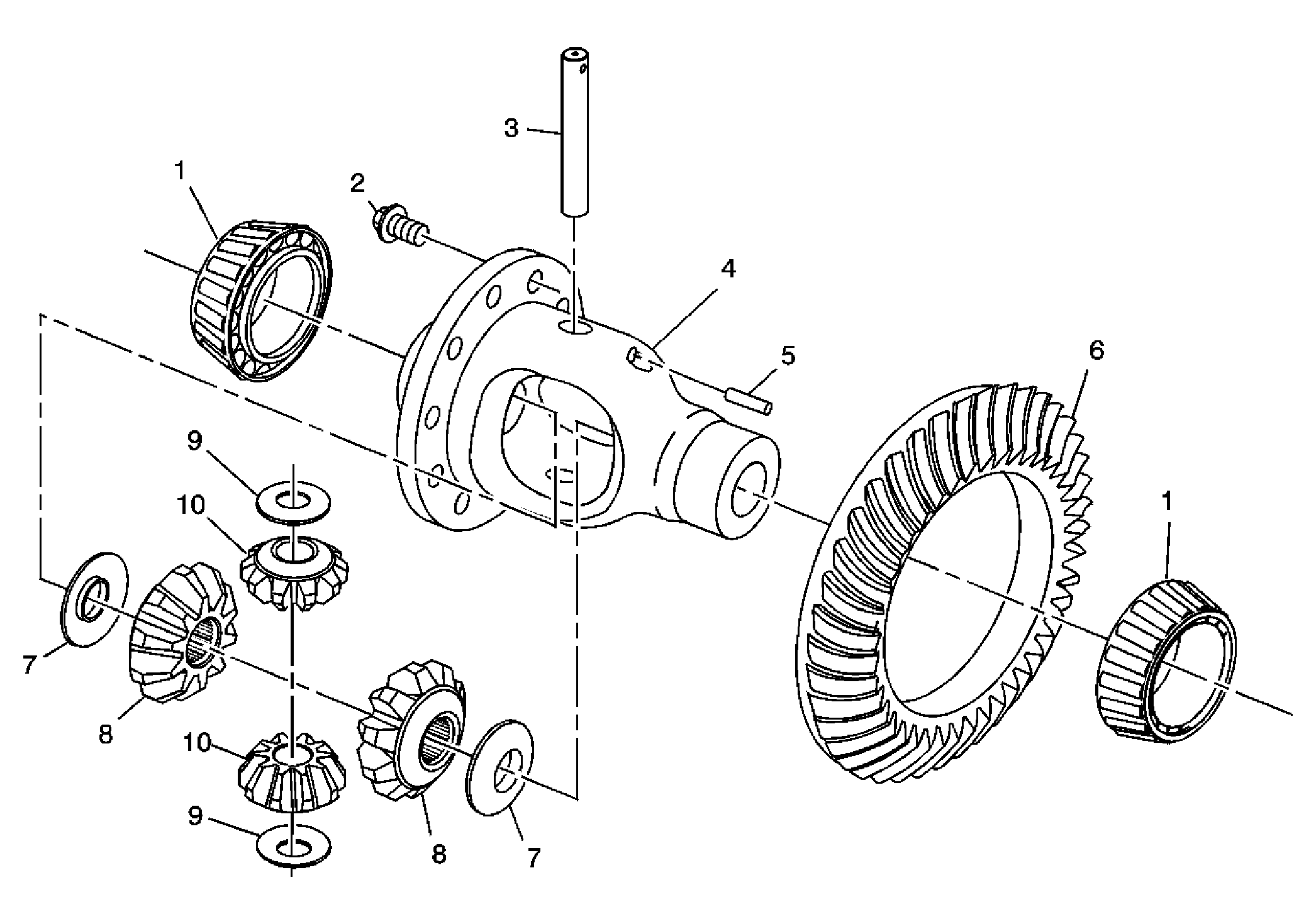

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Bearing |
| 1 |
Bearing |
| 2 |
Bolt |
| 3 |
Pinion Shaft Pin |
| 4 |
Differential Case |
| 5 |
Pinion Shaft Lock Pin |
| 6 |
Ring Gear |
| 7 |
Washer |
| 7 |
Washer |
| 8 |
Axle Side Gear |
| 8 |
Axle Side Gear |
| 9 |
Washer |
| 9 |
Washer |
| 10 |
Pinion Gears |
| 10 |
Pinion Gears |
