Front Drive Axle Disassembled Views

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 Chevrolet Tahoe, and 2002 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

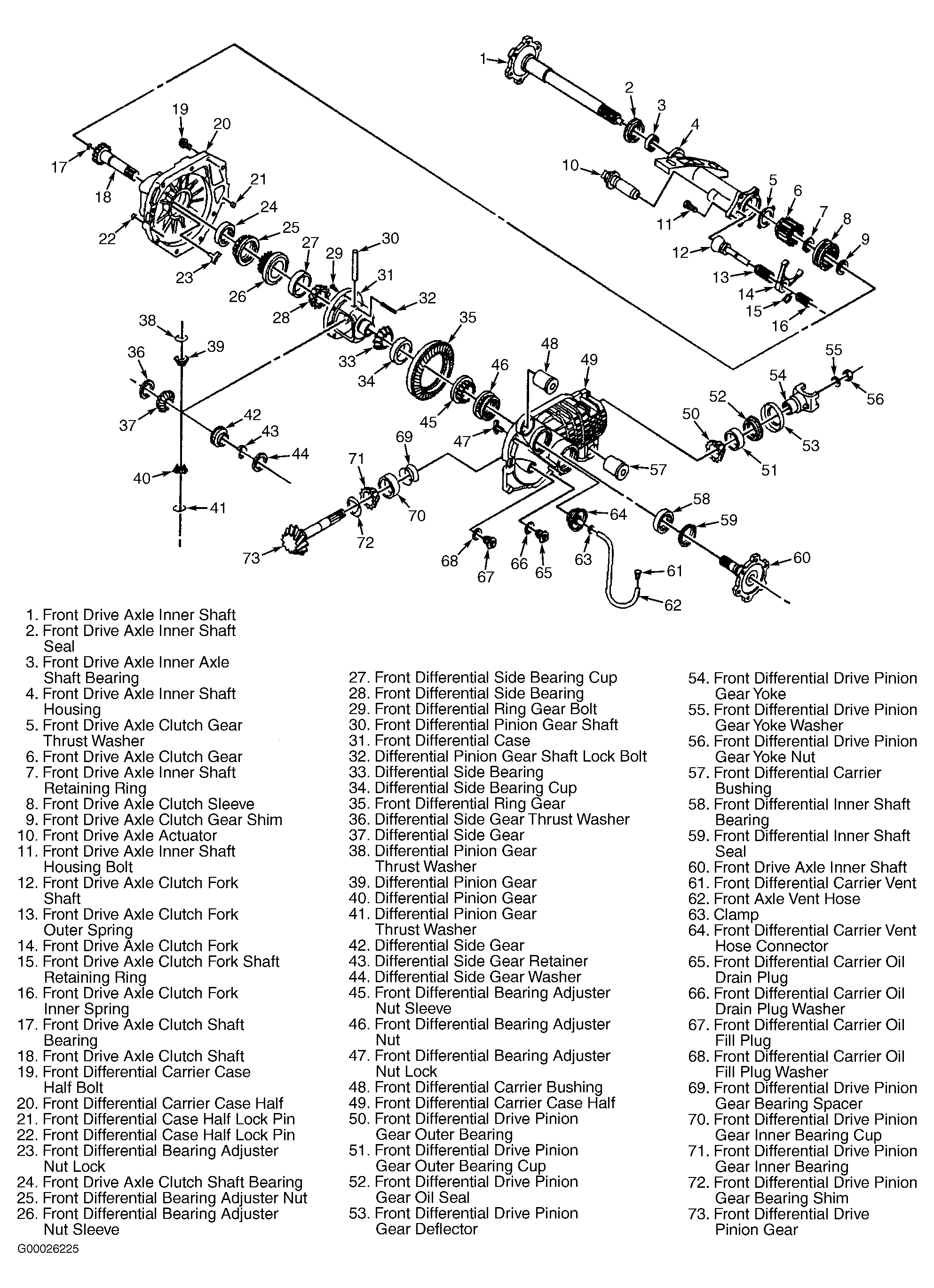

Fig 1: Exploded View Of Front Axle Assembly (8.25 inch) (S4WD) - 1st Design

G00026225

Courtesy of GENERAL MOTORS CORP.

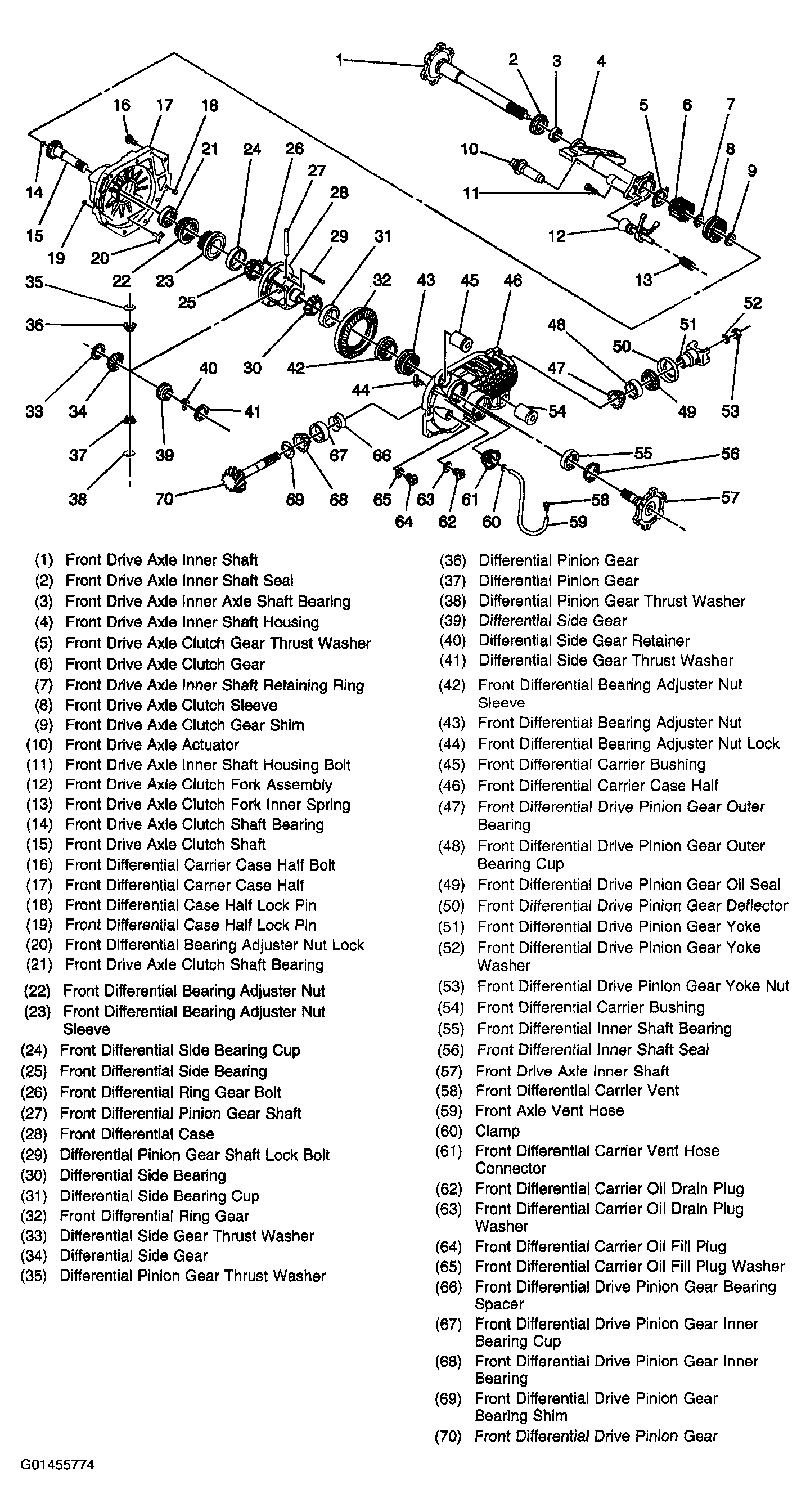

Fig 2: Exploded View Of Front Drive Axle (8.25 inch) (S4WD) - 2nd Design

G01455774

Courtesy of GENERAL MOTORS CORP.

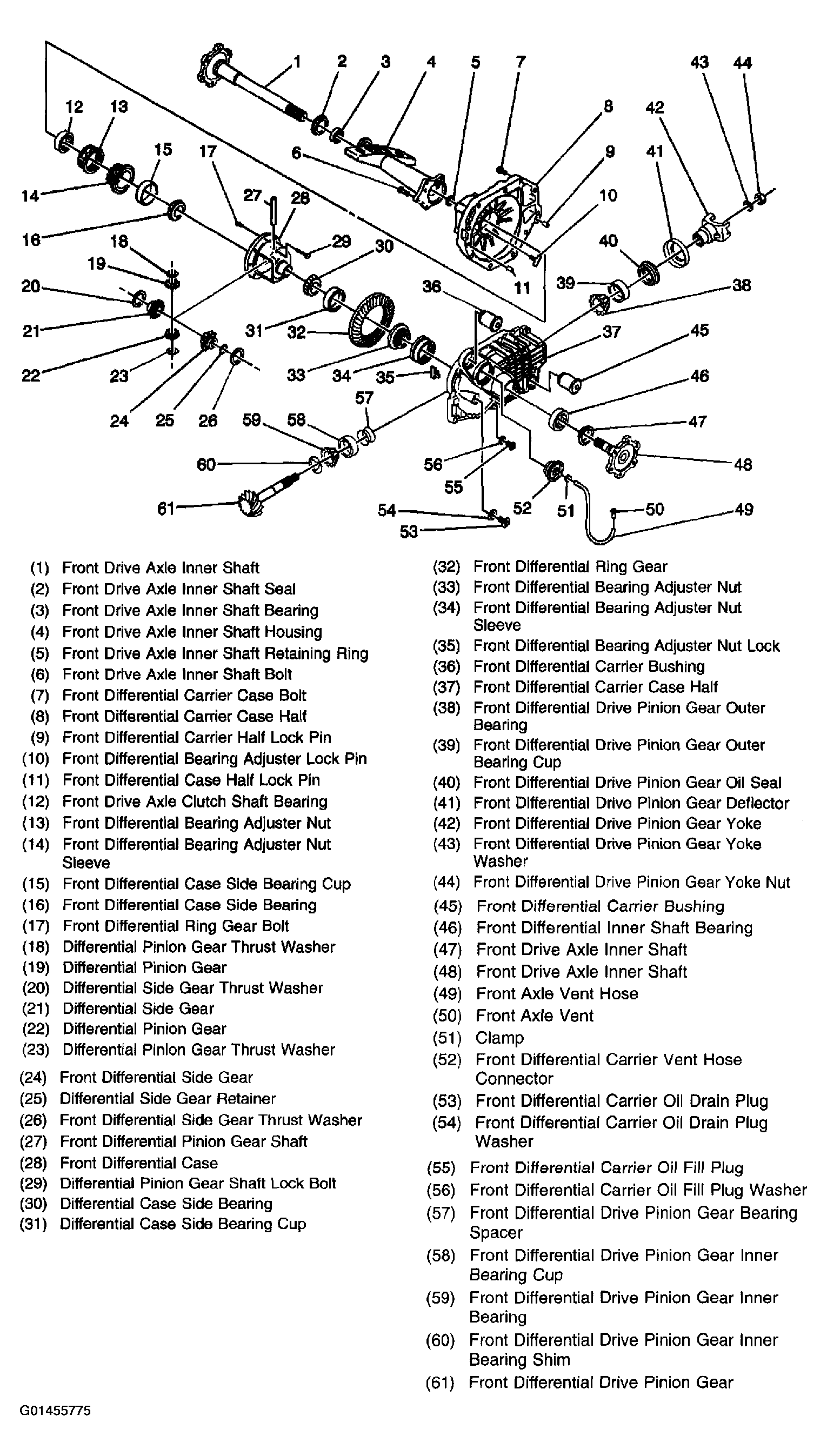

Fig 3: Exploded View Of Front Drive Axle (8.25 in) (F4WD)

G01455775

Courtesy of GENERAL MOTORS CORP.

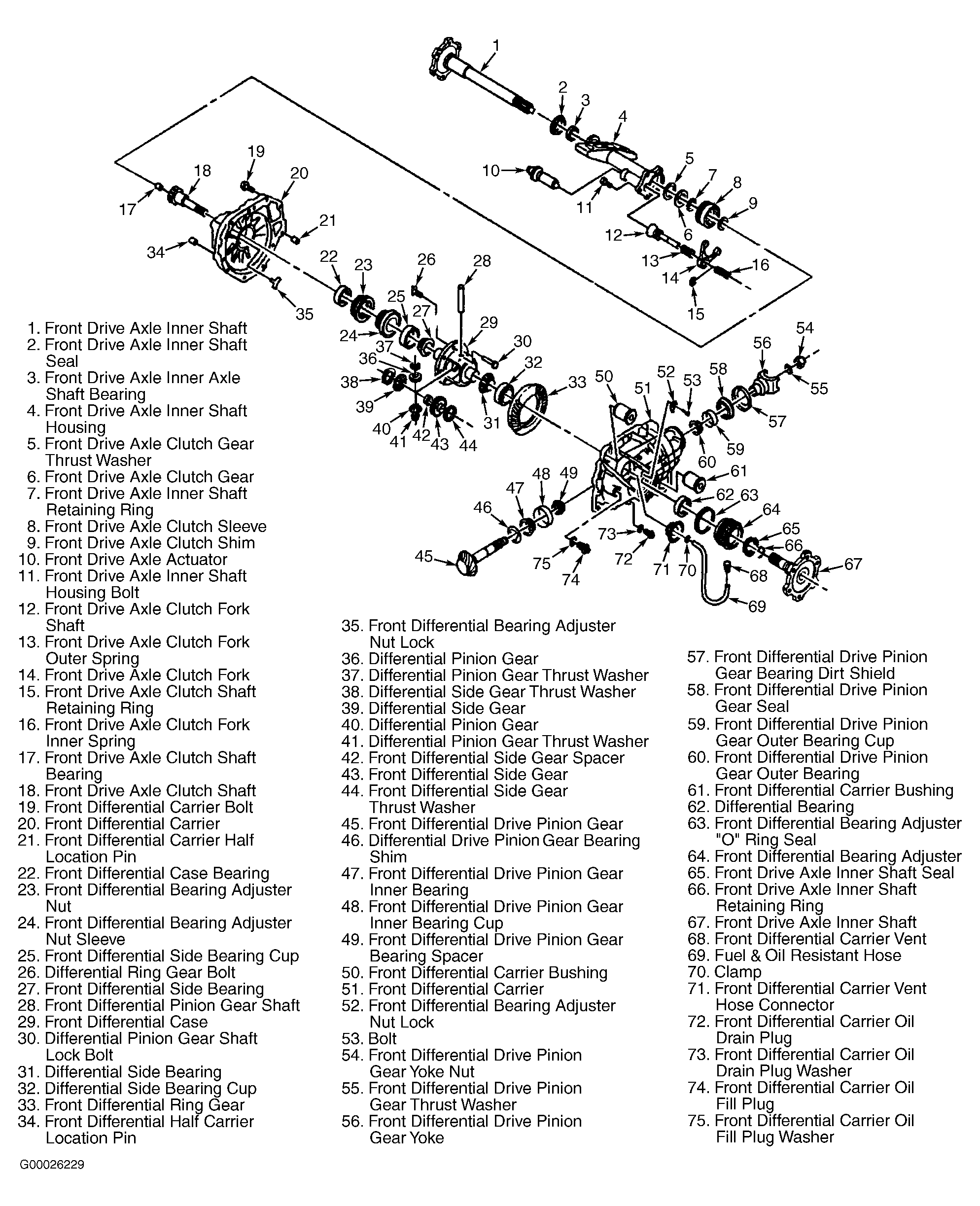

Fig 4: Exploded View Of Front Axle Assembly (9.25 inch) - 1st Design

G00026229

Courtesy of GENERAL MOTORS CORP.

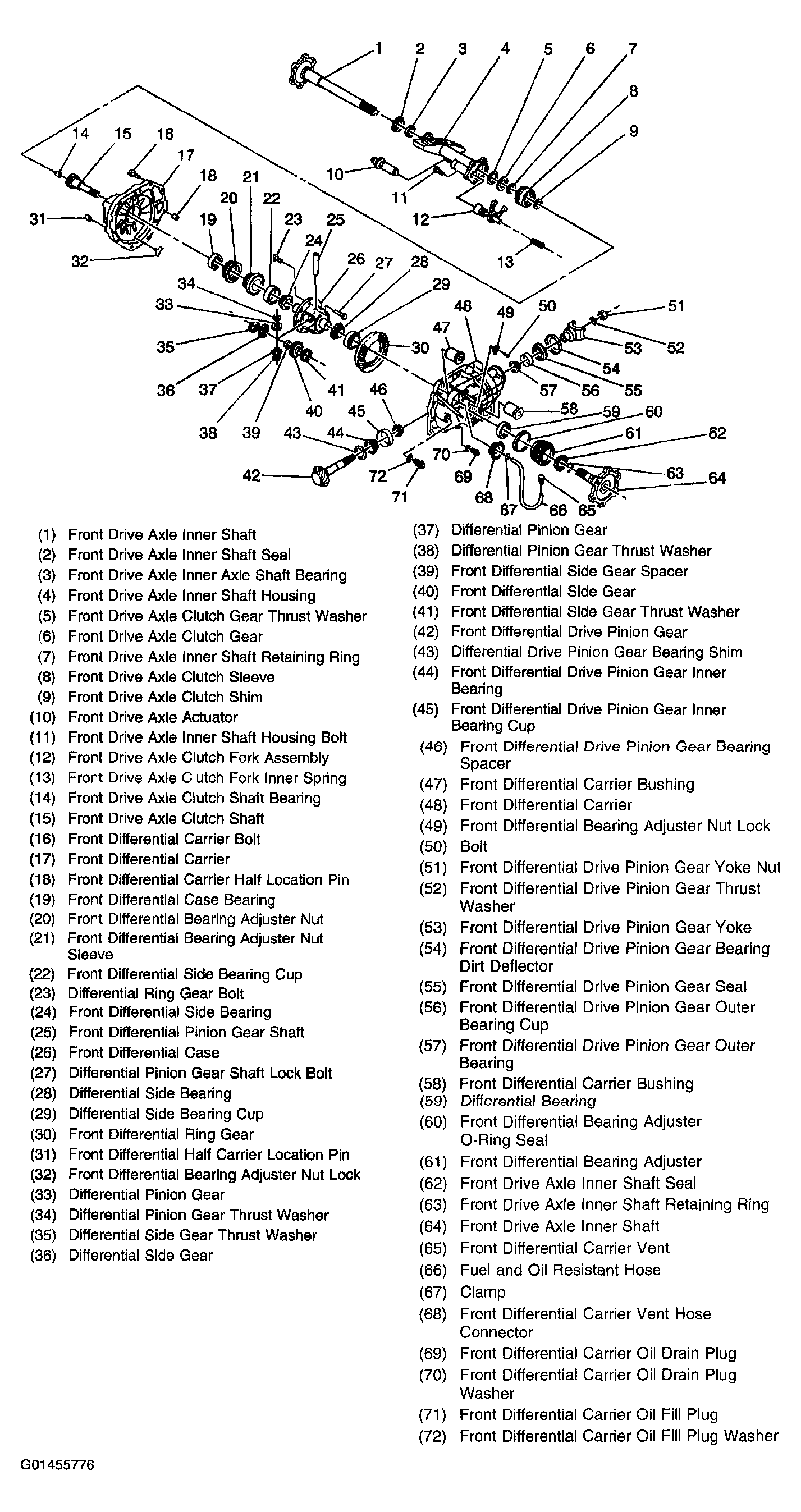

Fig 5: Exploded View Of Front Drive Axle (9.25 inch) - 2nd Design

G01455776

Courtesy of GENERAL MOTORS CORP.
