Installation Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 Chevrolet Tahoe, and 2002 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front differential carrier shield.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the front differential carrier shield bolts.

    Tighten

    Tighten the front differential carrier shield bolts to 20 N.m (15 lb ft).

  3. Lower the vehicle.

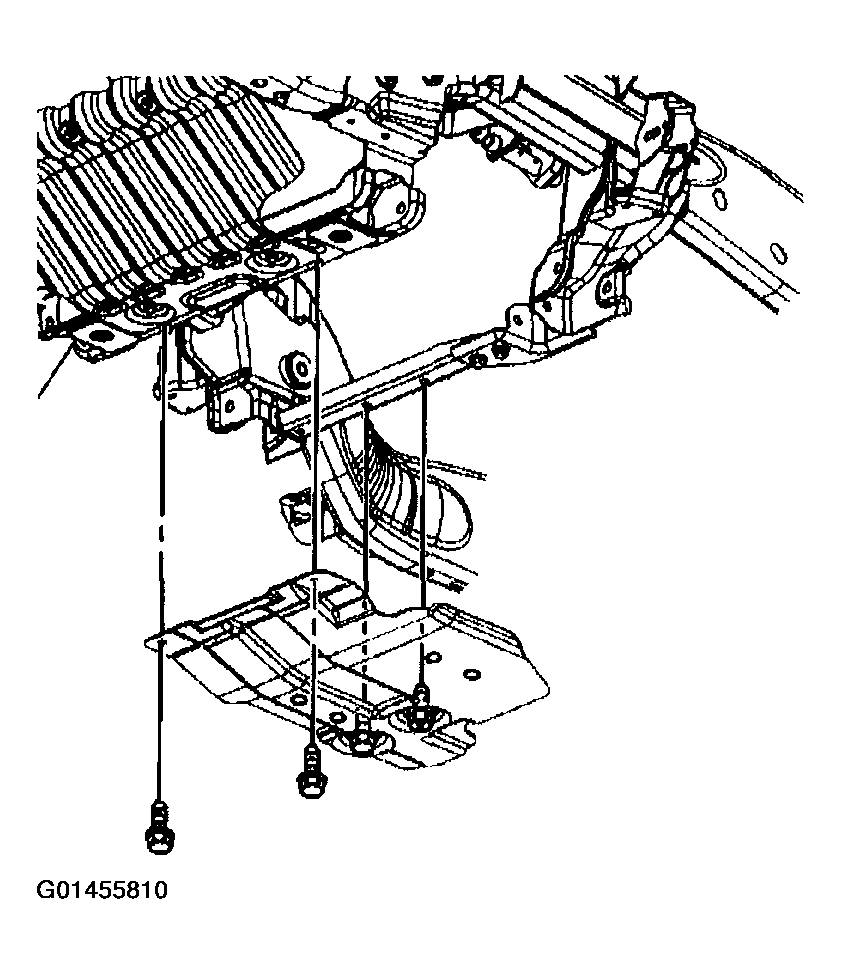

    Fig 1: Installing Front Differential Carrier Shield Bolts
    G01455810Courtesy of GENERAL MOTORS CORP.
