Liftgate Trim Panel Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

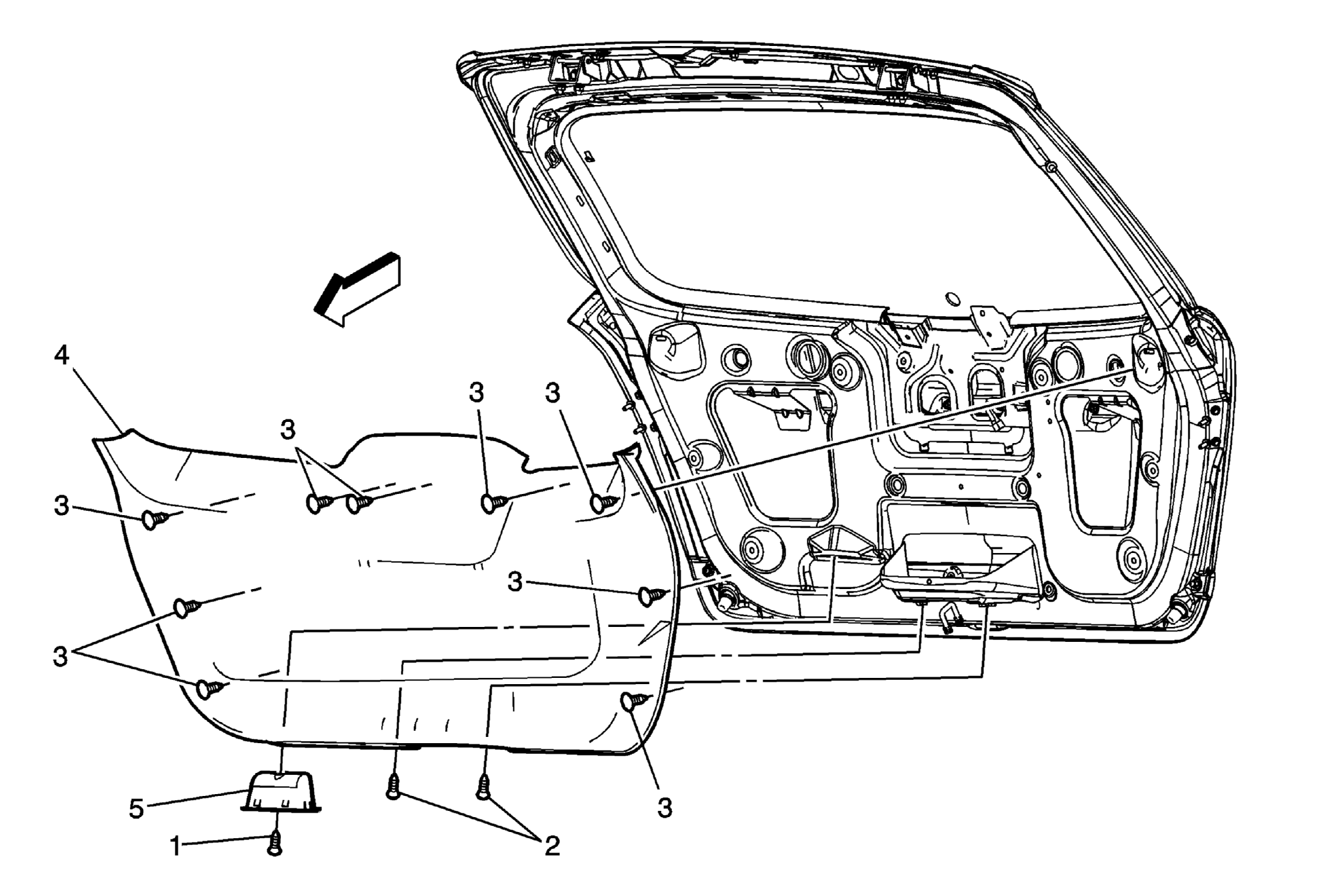

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the liftgate window garnish molding. Refer to Liftgate Garnish Molding Replacement . |
|
| 1 | Liftgate Inside Pull Handle Screw
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Liftgate Trim Finish Panel Screw (Qty: 2) Tighten: 2 N.m (18 lb in) |
| 3 | Liftgate Trim Finish Panel Retainer (Qty: 9) |
| 4 | Liftgate Trim Finish Panel |
| 5 | Liftgate Trim Finish Panel Pull Handle |
