Door Lamp Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

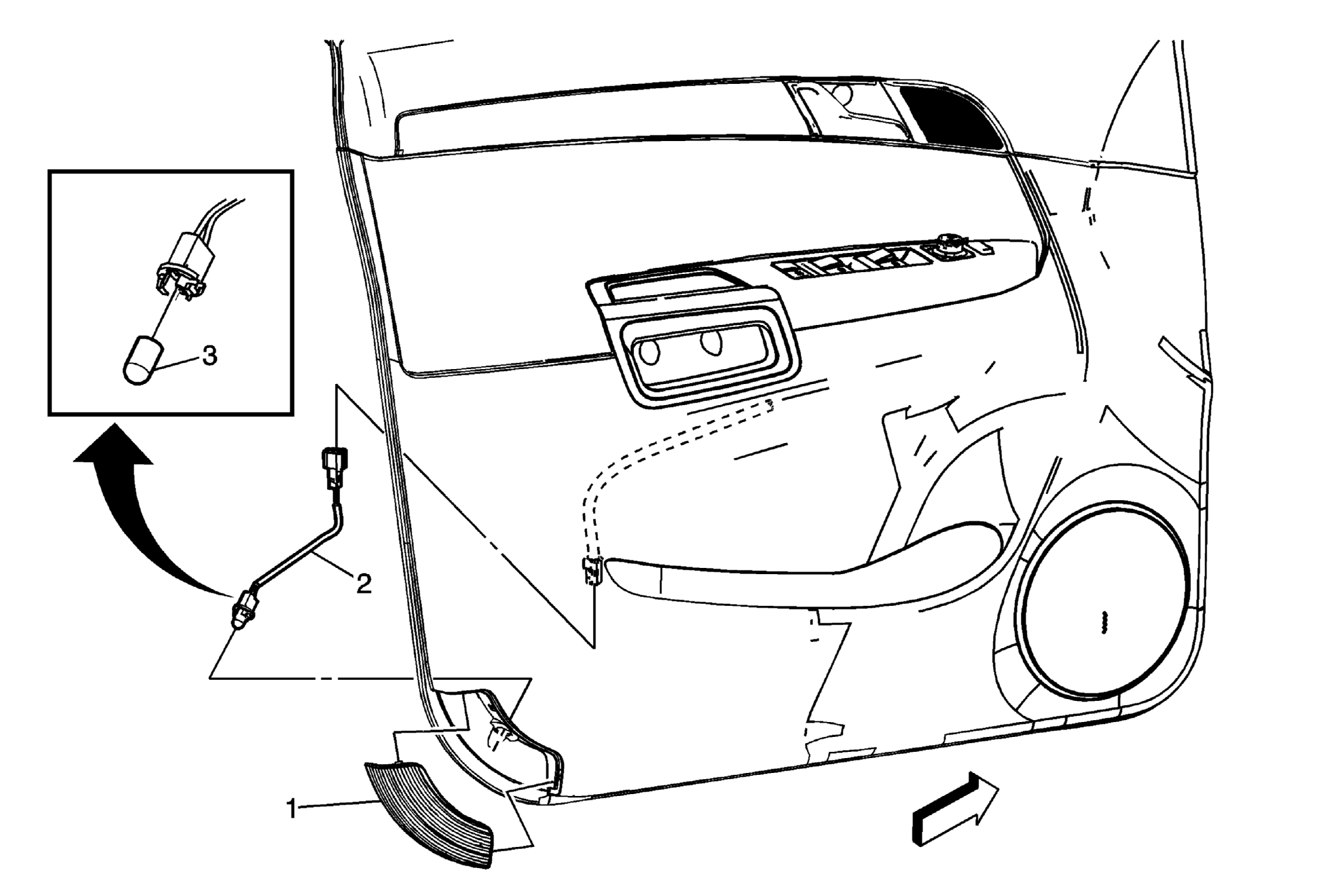

Fig 1: Door Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front side door trim. Refer to Front Side Door Trim Panel Replacement .
1	Front Side Door Courtesy Lamp Lens
2	Front Side Door Courtesy Lamp Retainer Assembly Procedure: Disconnect the electrical connector.
3	Front Side Door Courtesy Lamp Bulb
