Rear Side Marker Lamp Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

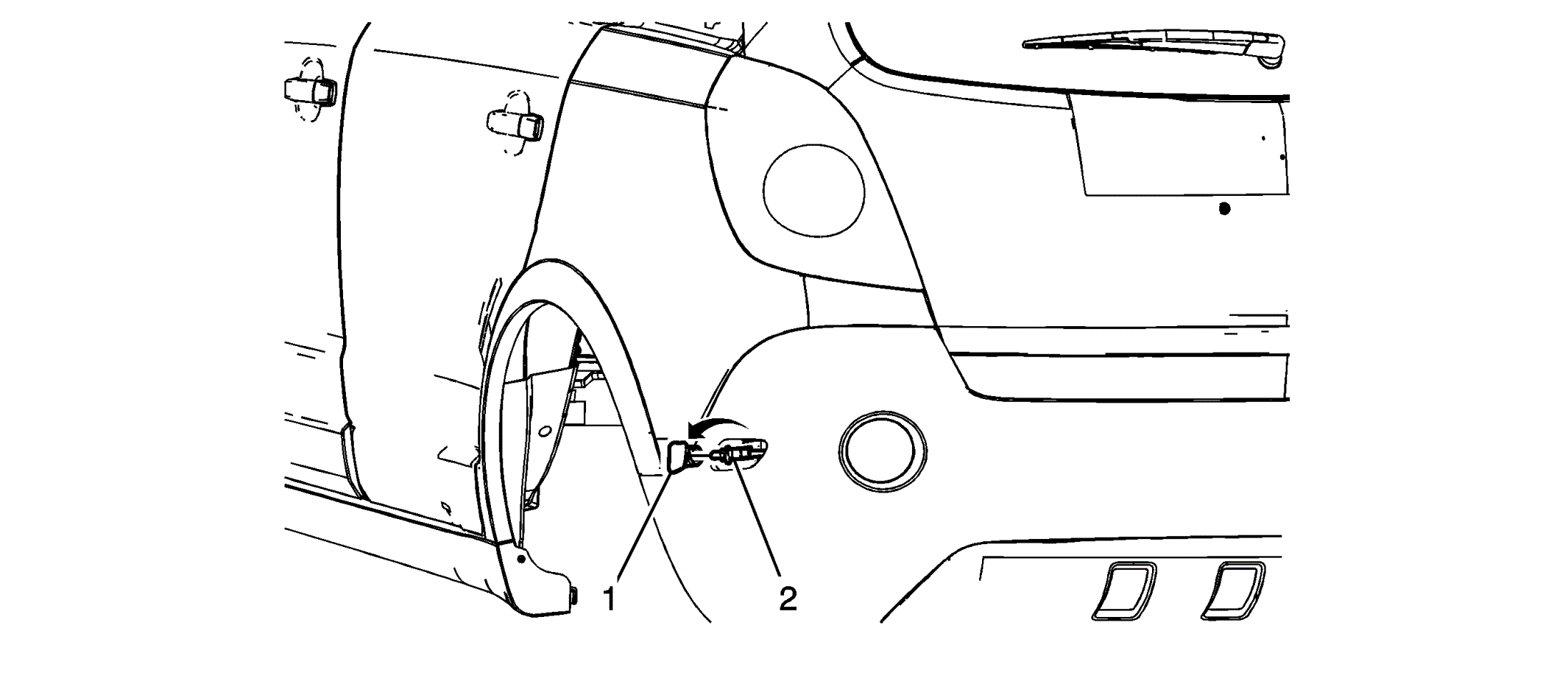

Fig 1: Rear Side Marker Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Rear Side Marker Lamp Assembly Tip: Push the forward clip edge of the lamp assembly outward from the rear bumper fascia.
2	Rear Side Marker Lamp Assembly Bulb Socket
