Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the trailing arm to the vehicle.

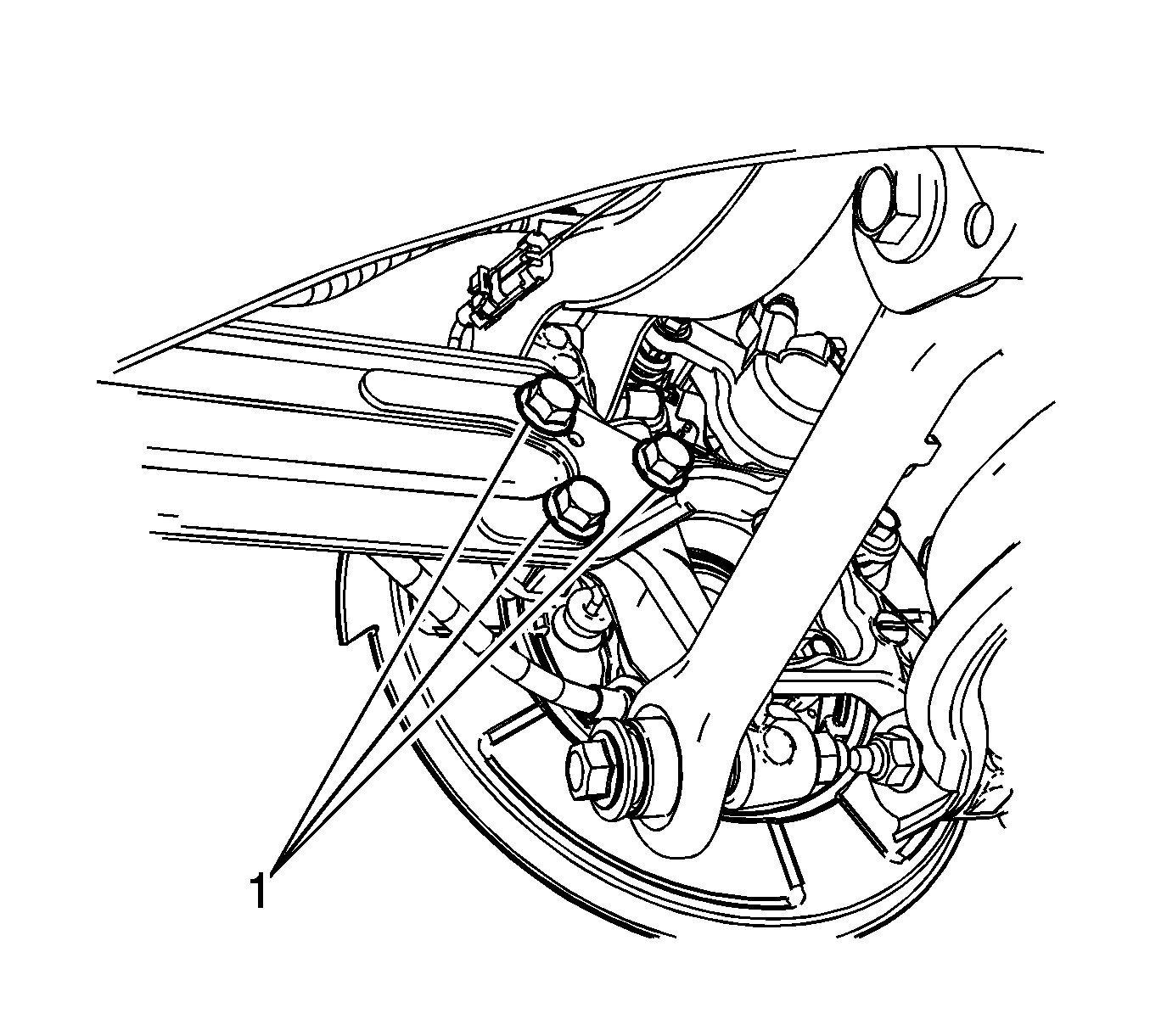

    2. Fig 1: Identifying Trailing Arm To Knuckle Bolts
    GM1877479Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the trailing arm to knuckle bolts (1) and tighten to 110 N.m (81 lb ft).
  3. Position the trailing arm bracket to the trailing arm.

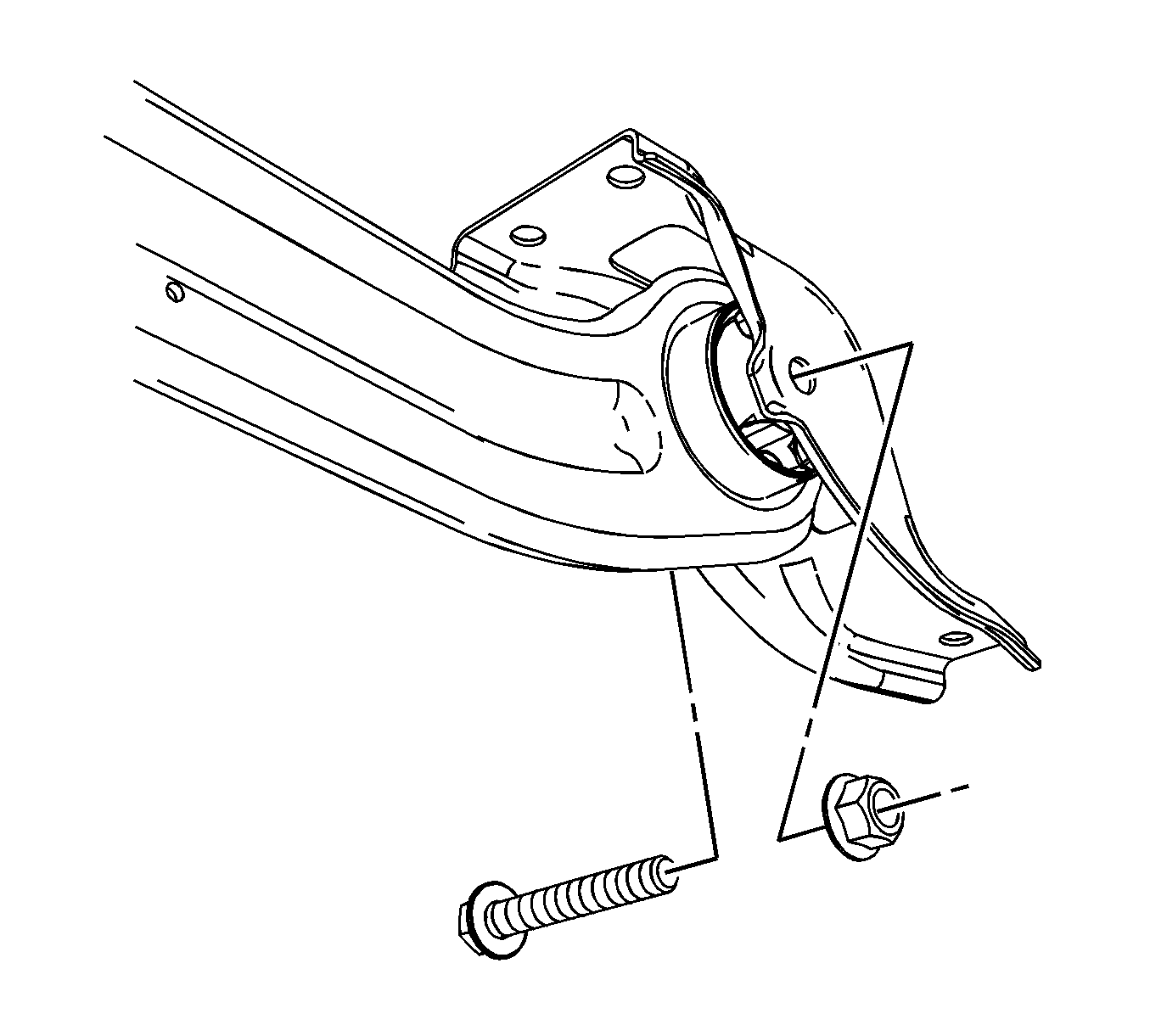

    4. Fig 2: View Of Trailing Arm Bushing-To-Bracket Nut & Bolt
    GM1828605Courtesy of GENERAL MOTORS CORP.
  4. Loosely install the trailing arm bushing to bracket nut and bolt.
  5. Install the trail arm bracket. Refer to Trailing Arm Bracket Replacement .
  6. Tighten the trailing arm bushing to bracket nut and bolt to 160 N.m (118 lb ft).
  7. Install the park brake cable bolt to trailing arm and to the frame. Refer to Parking Brake Rear Cable Replacement .
  8. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  9. Lower the vehicle.
