Immobilizer Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

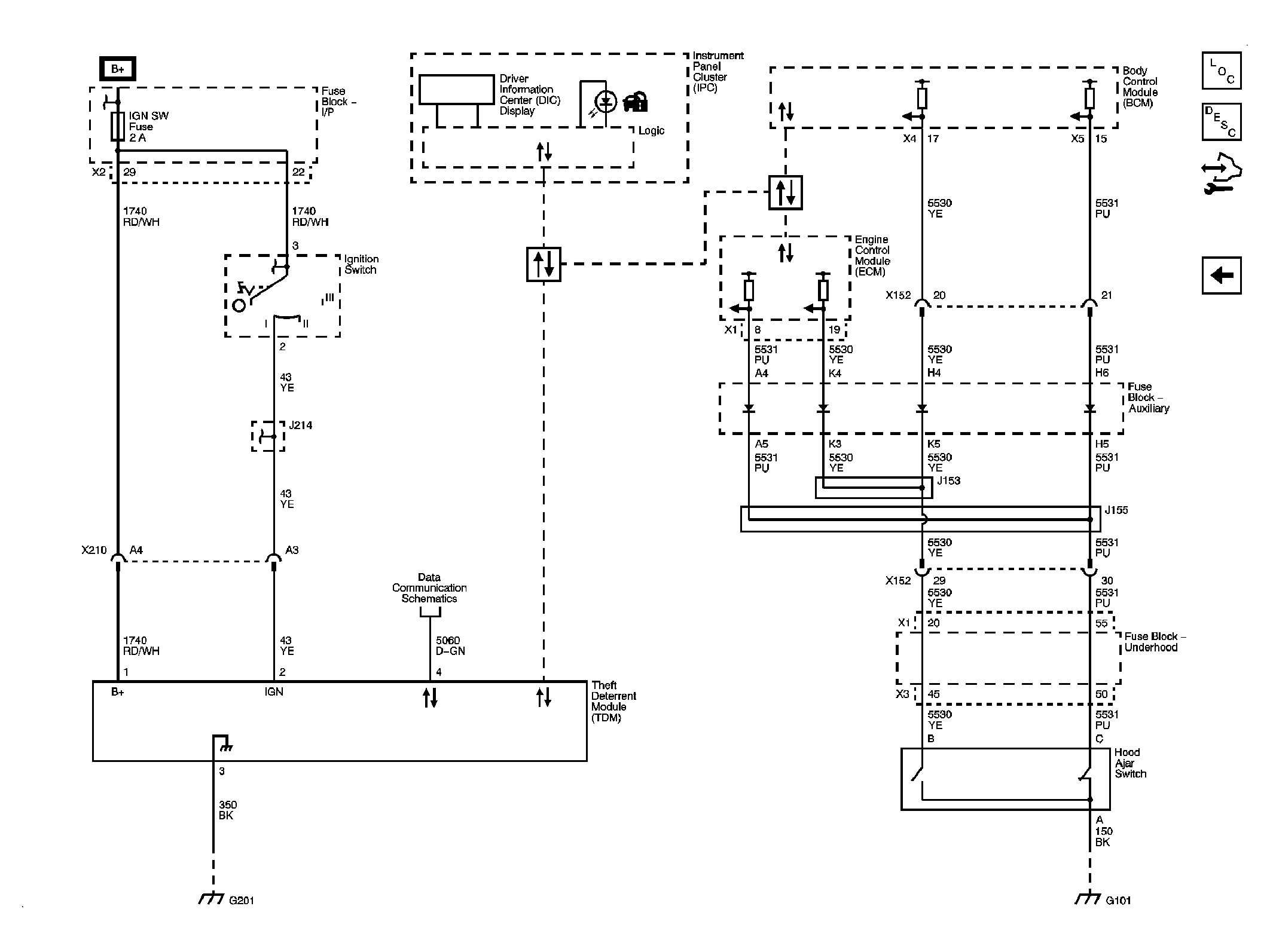

Fig 1: Immobilizer (without HP5)

Courtesy of GENERAL MOTORS CORP.

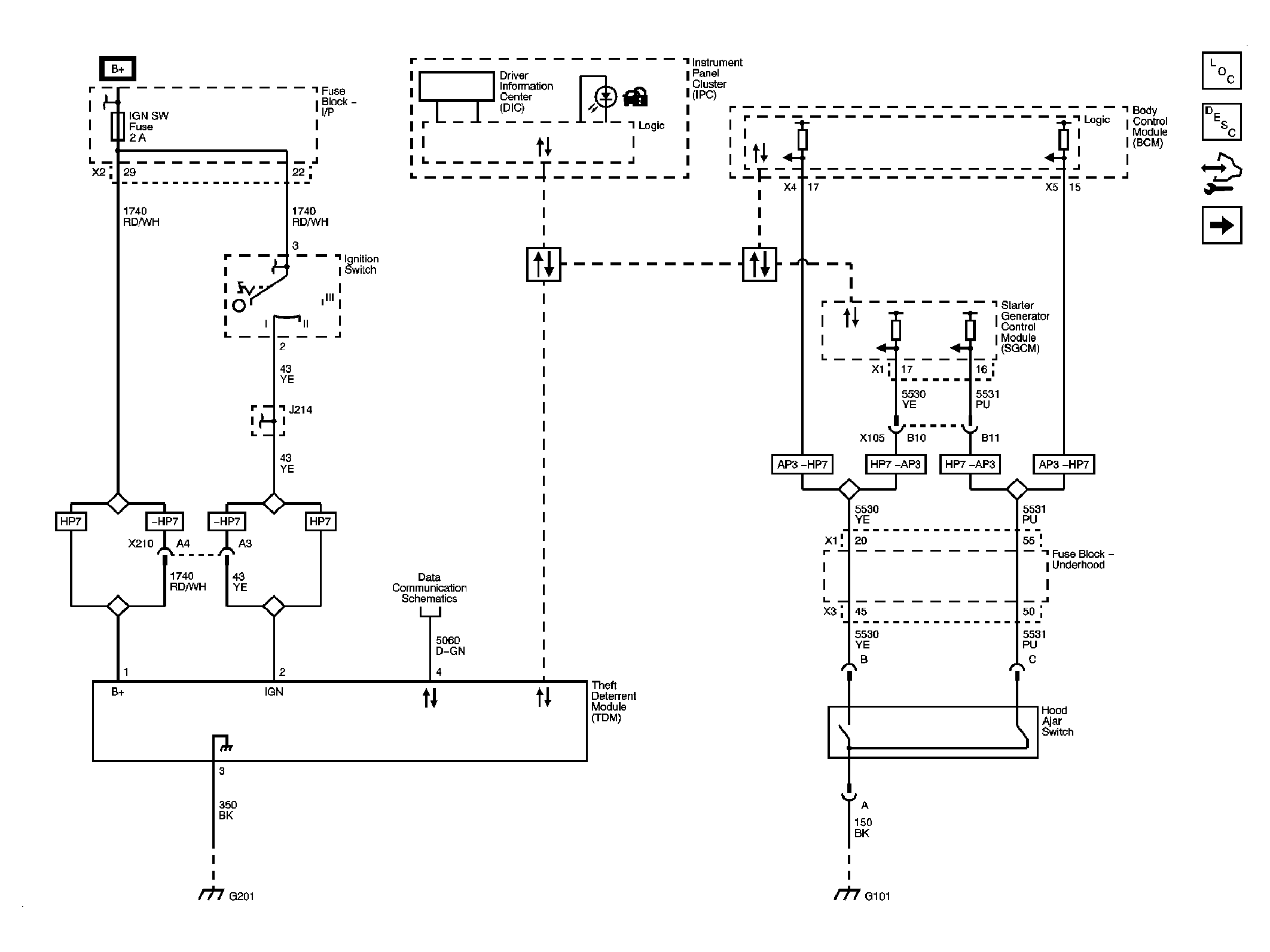

Fig 2: Immobilizer (with HP5)

Courtesy of GENERAL MOTORS CORP.
