HVAC Connector End Views

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

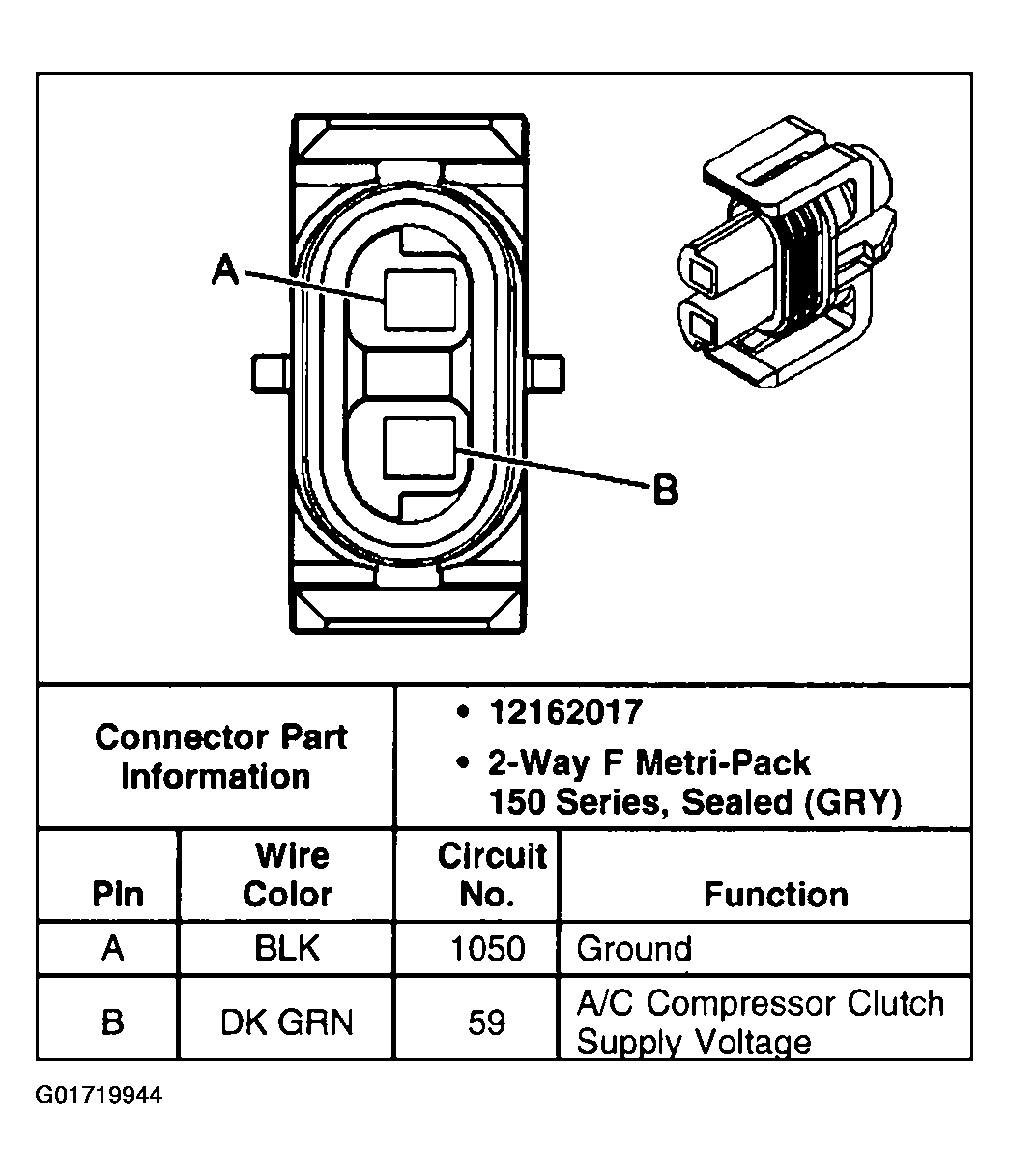

Fig 1: A/C Compressor Clutch

G01719944

Courtesy of GENERAL MOTORS CORP.

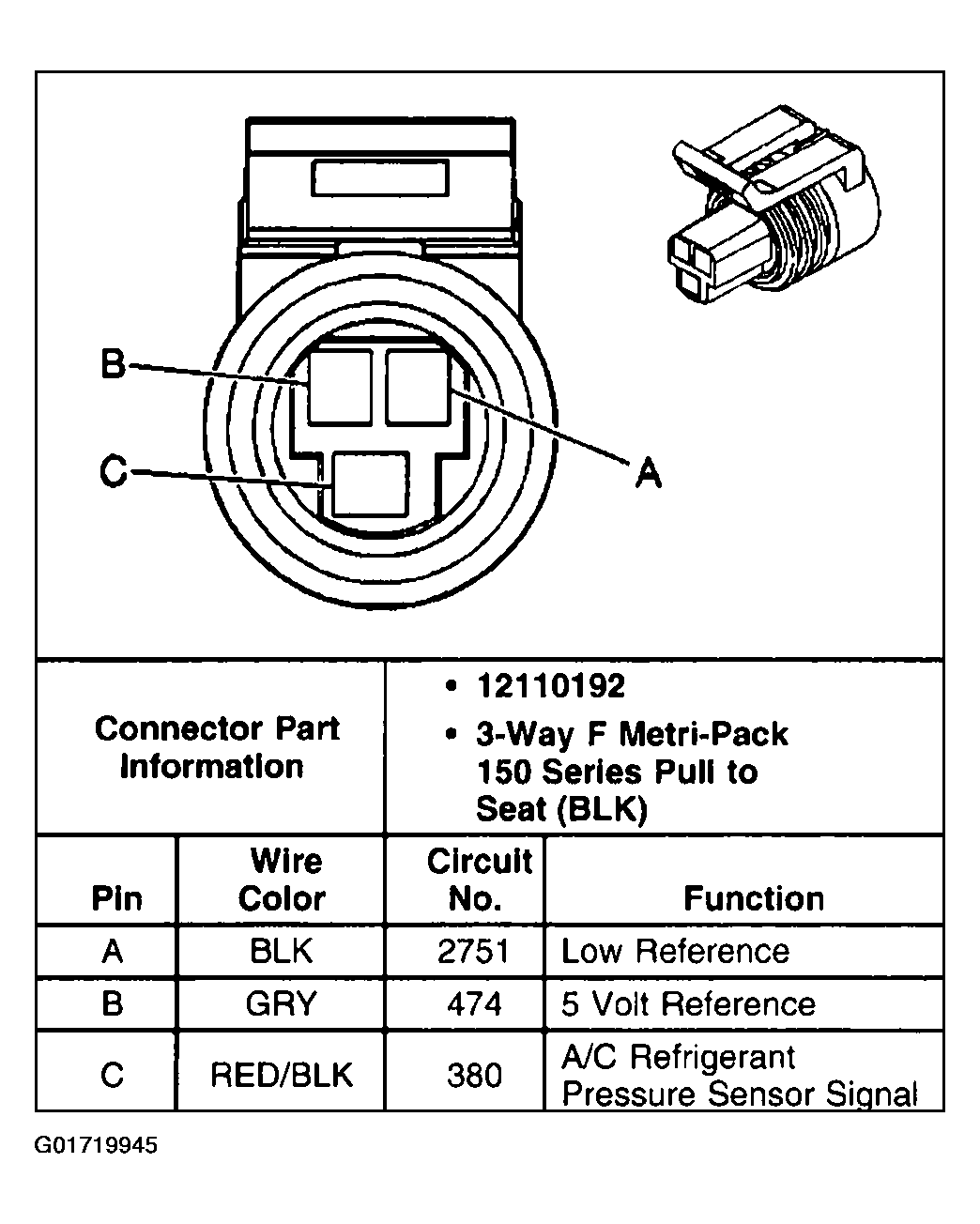

Fig 2: A/C Refrigerant Pressure Sensor

G01719945

Courtesy of GENERAL MOTORS CORP.

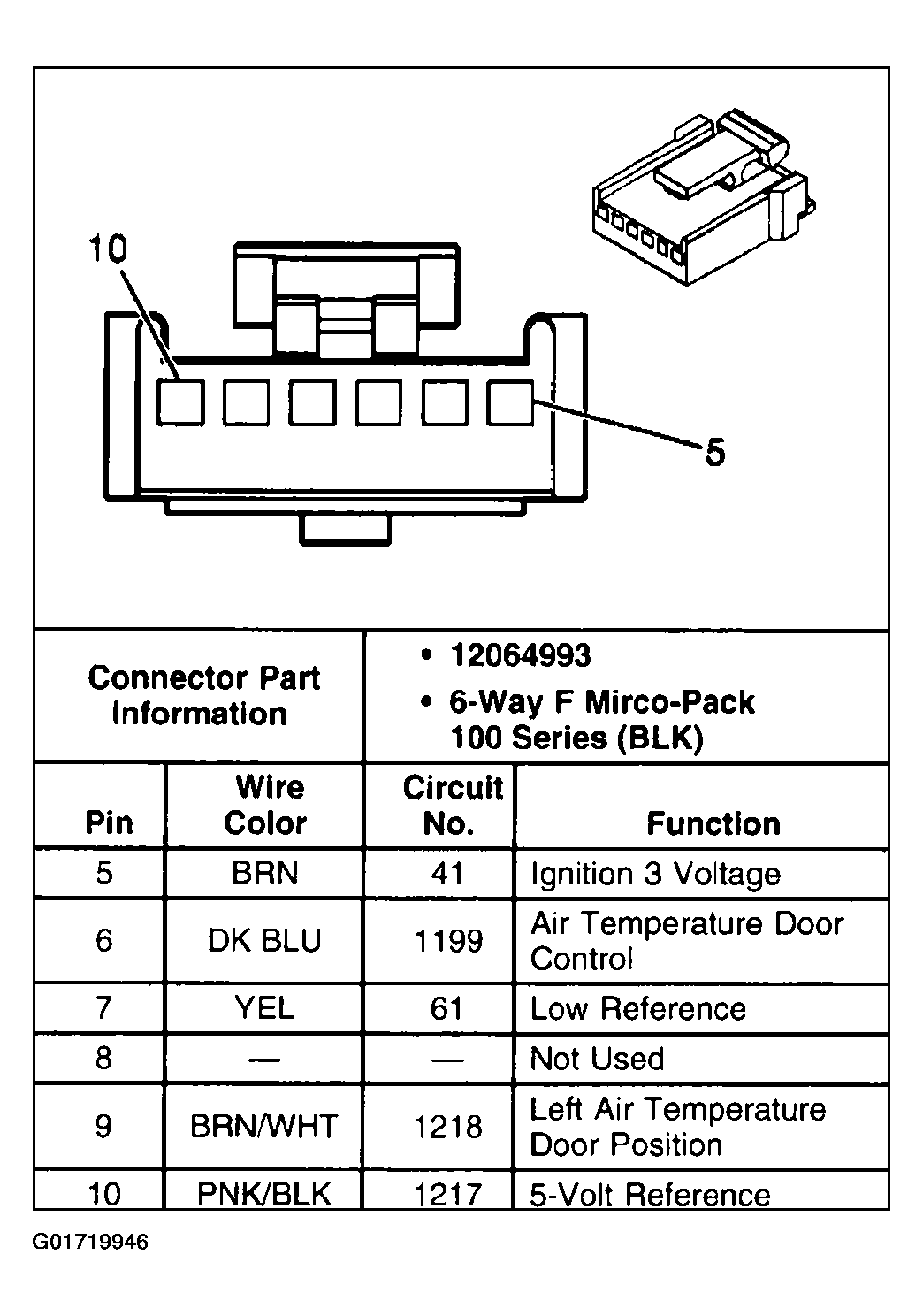

Fig 3: Air Temperature Actuator-Left

G01719946

Courtesy of GENERAL MOTORS CORP.

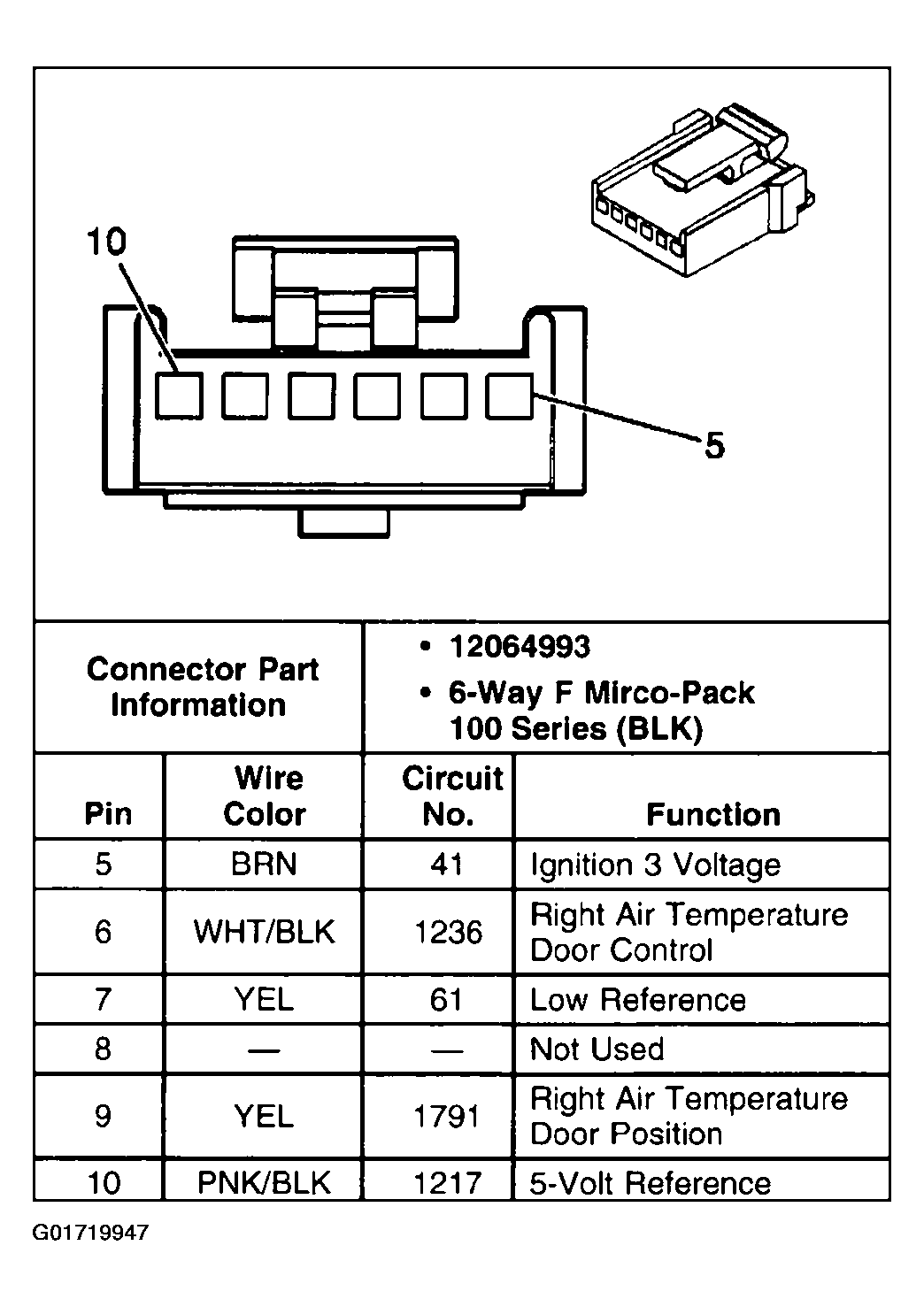

Fig 4: Air Temperature Actuator-Right

G01719947

Courtesy of GENERAL MOTORS CORP.

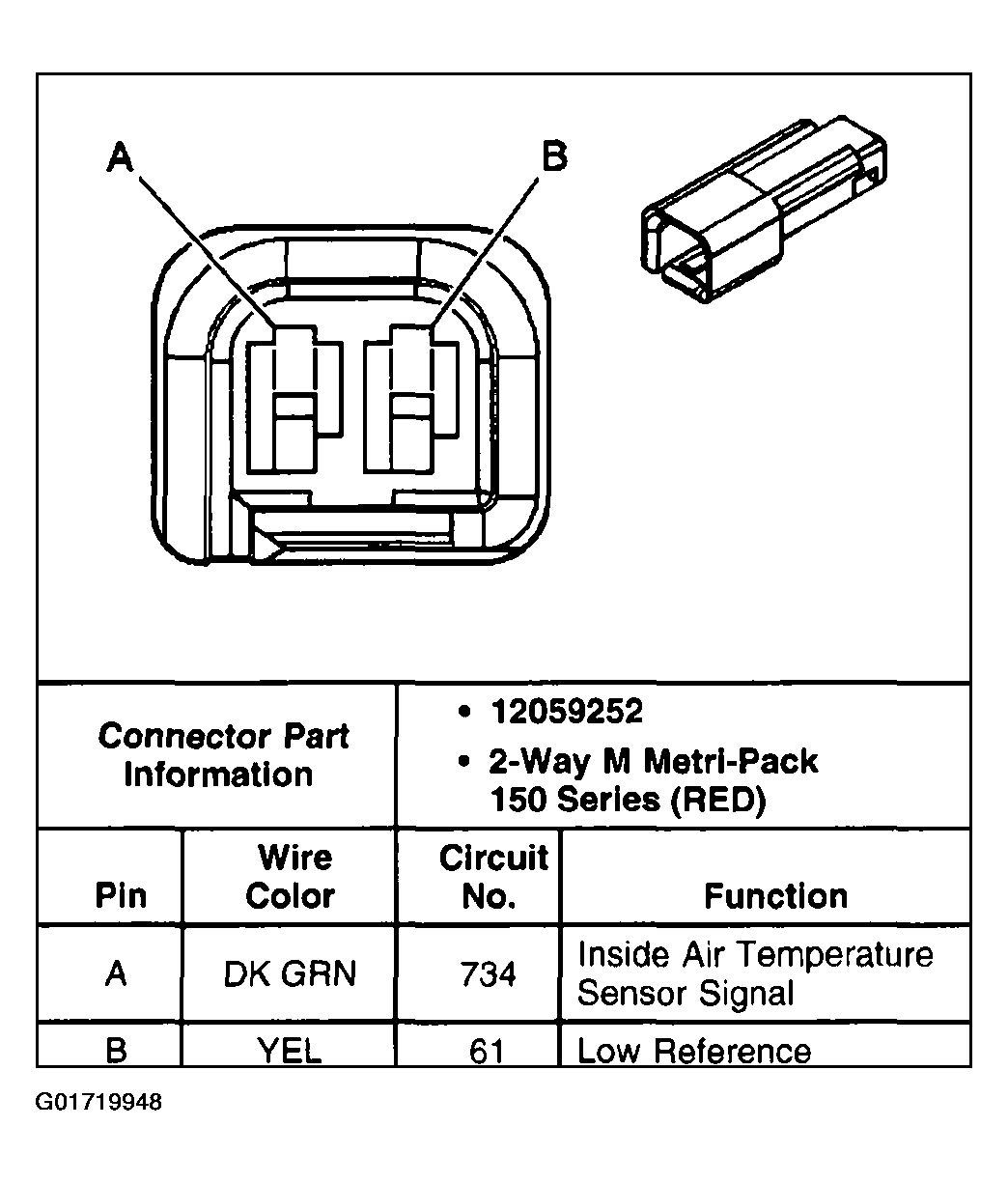

Fig 5: Air Temperature Sensor-Inside

G01719948

Courtesy of GENERAL MOTORS CORP.

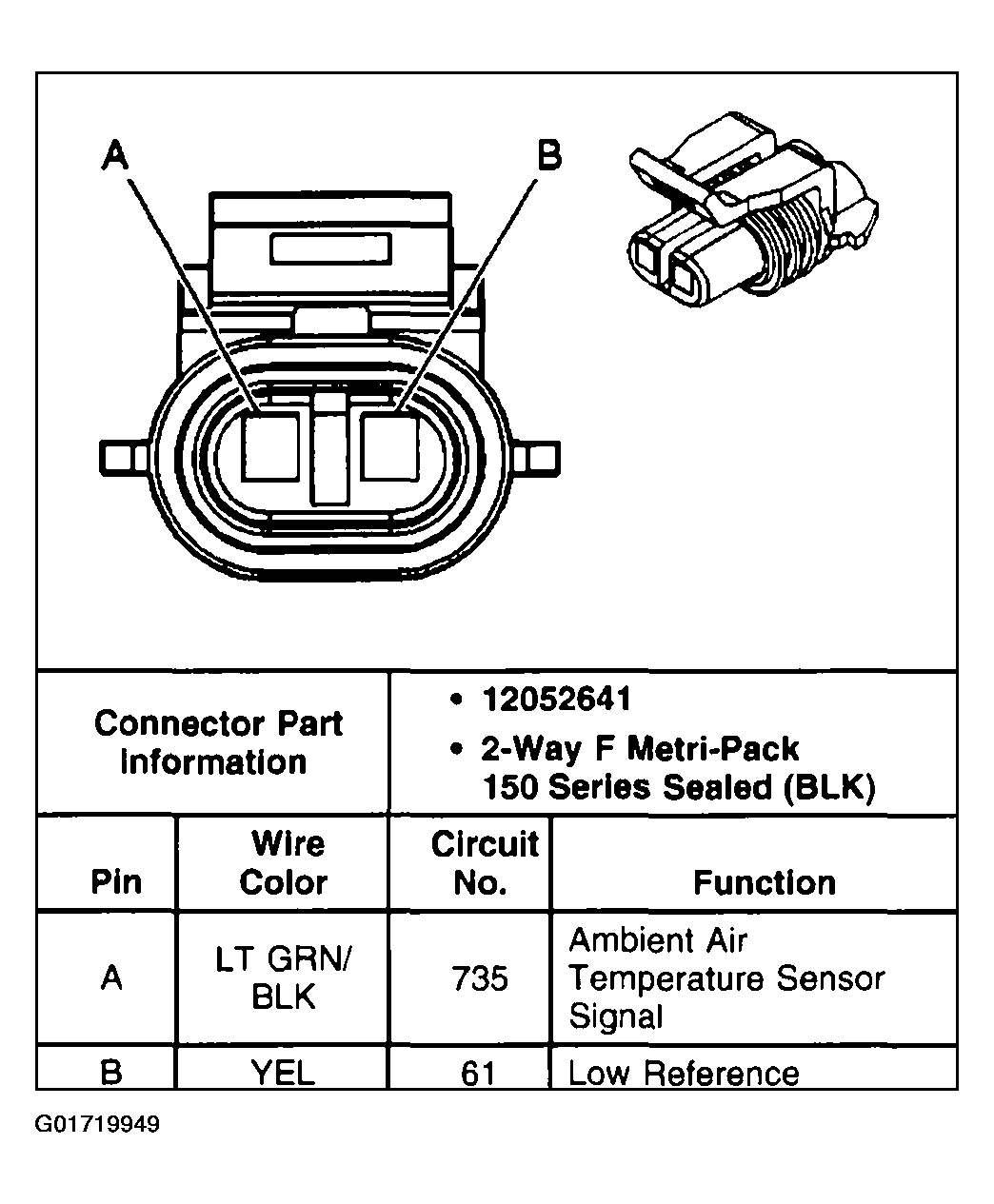

Fig 6: Ambient Air Temperature Sensor-Outside

G01719949

Courtesy of GENERAL MOTORS CORP.

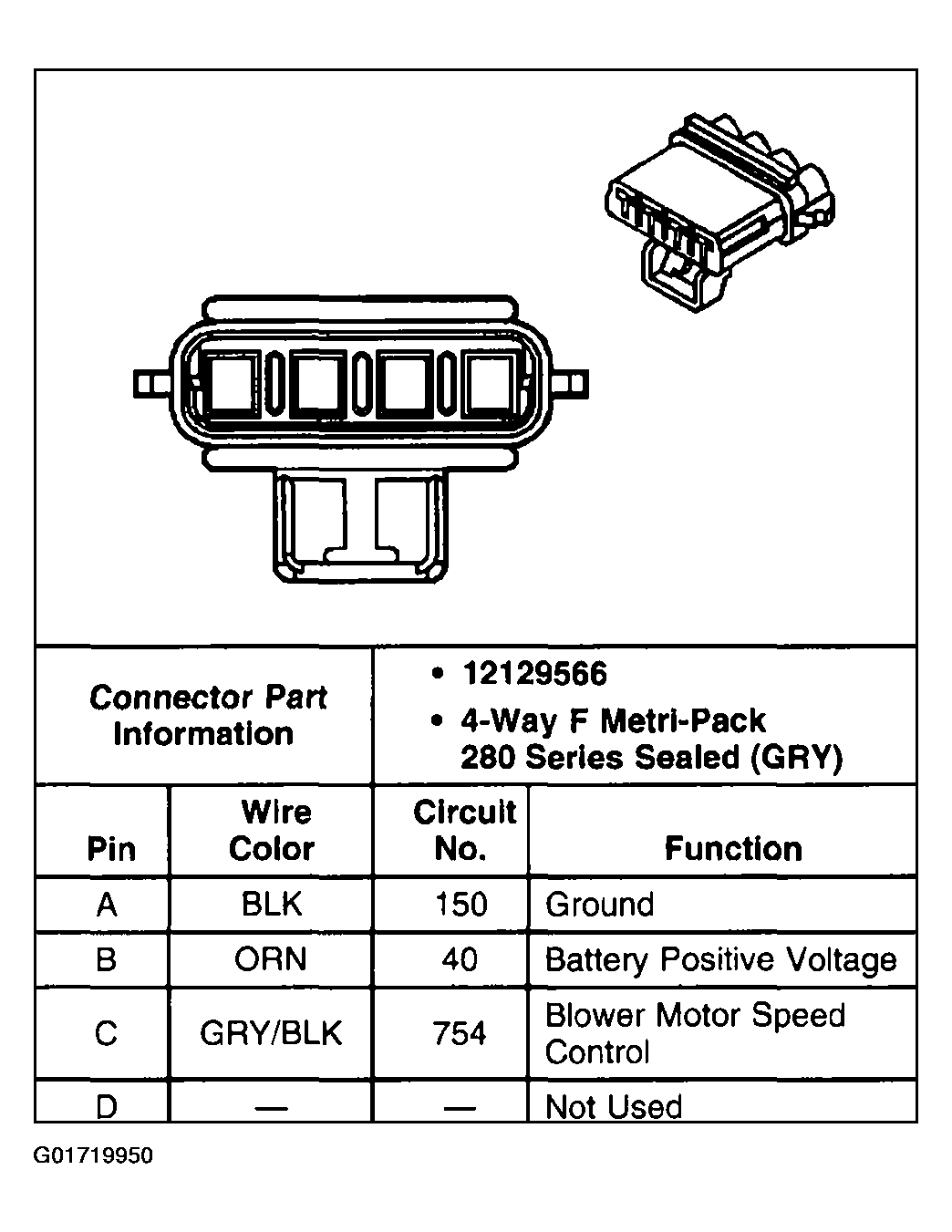

Fig 7: Blower Motor Control Processor

G01719950

Courtesy of GENERAL MOTORS CORP.

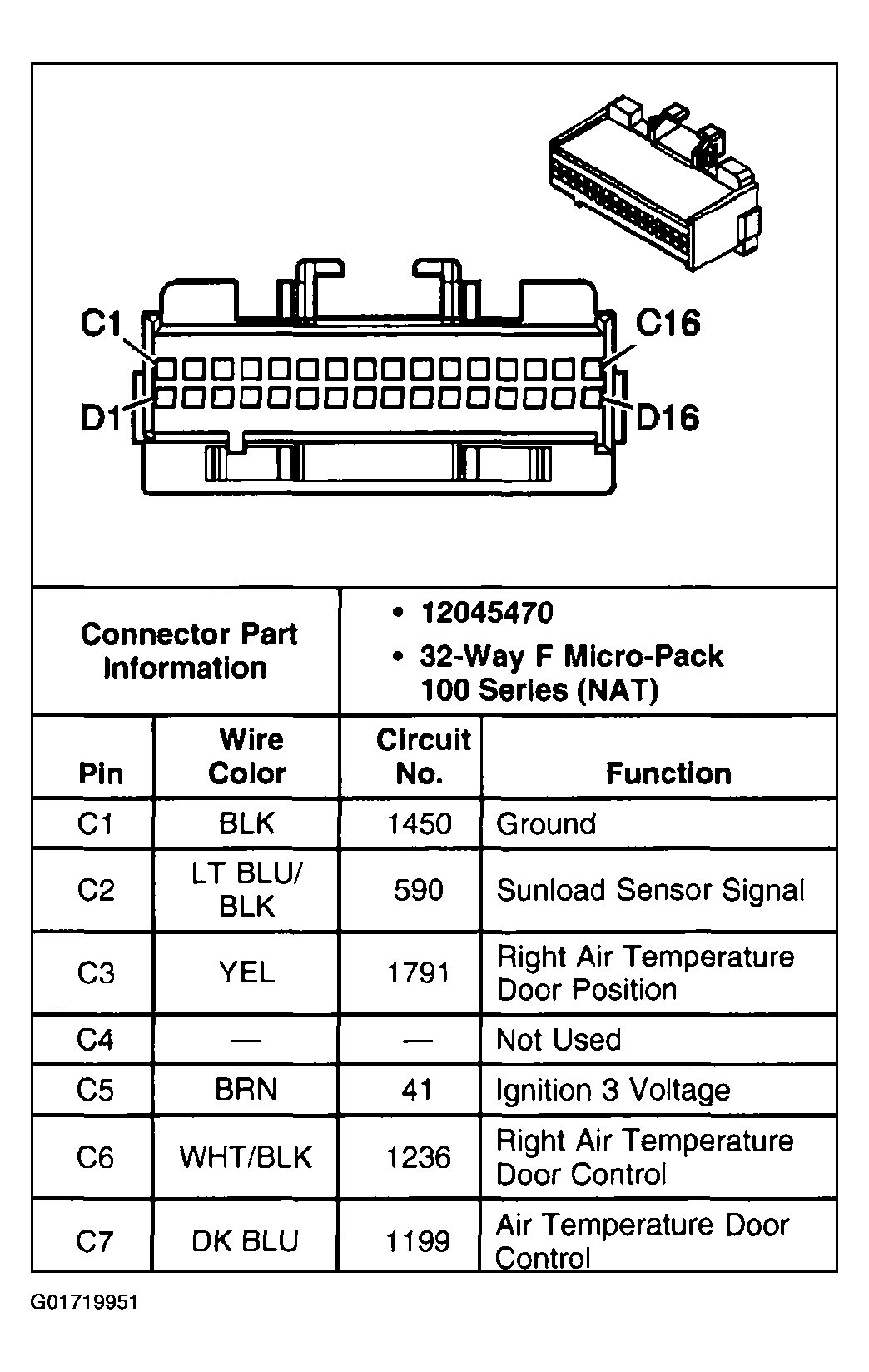

Fig 8: HVAC Control Module (1 of 2)

G01719951

Courtesy of GENERAL MOTORS CORP.

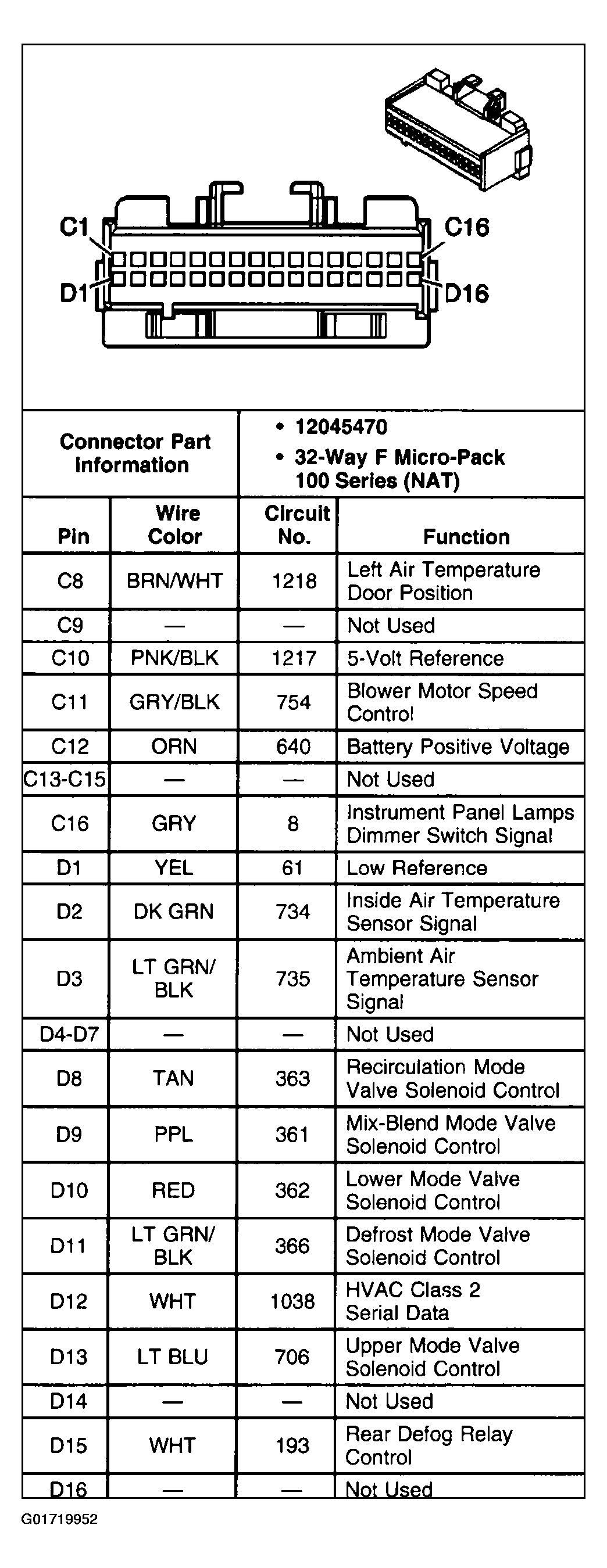

Fig 9: HVAC Control Module (2 of 2)

G01719952

Courtesy of GENERAL MOTORS CORP.

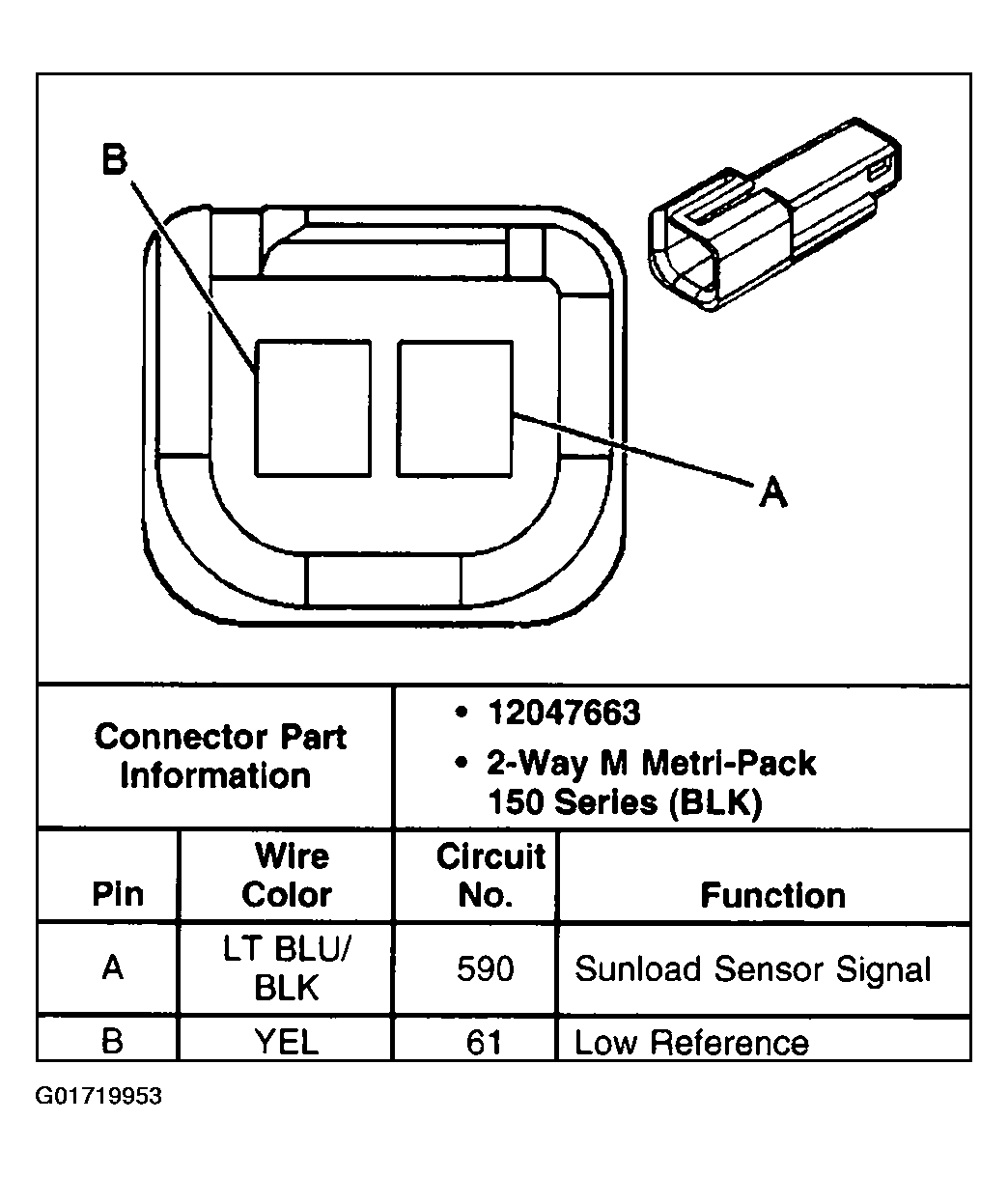

Fig 10: Sunload Sensor

G01719953

Courtesy of GENERAL MOTORS CORP.

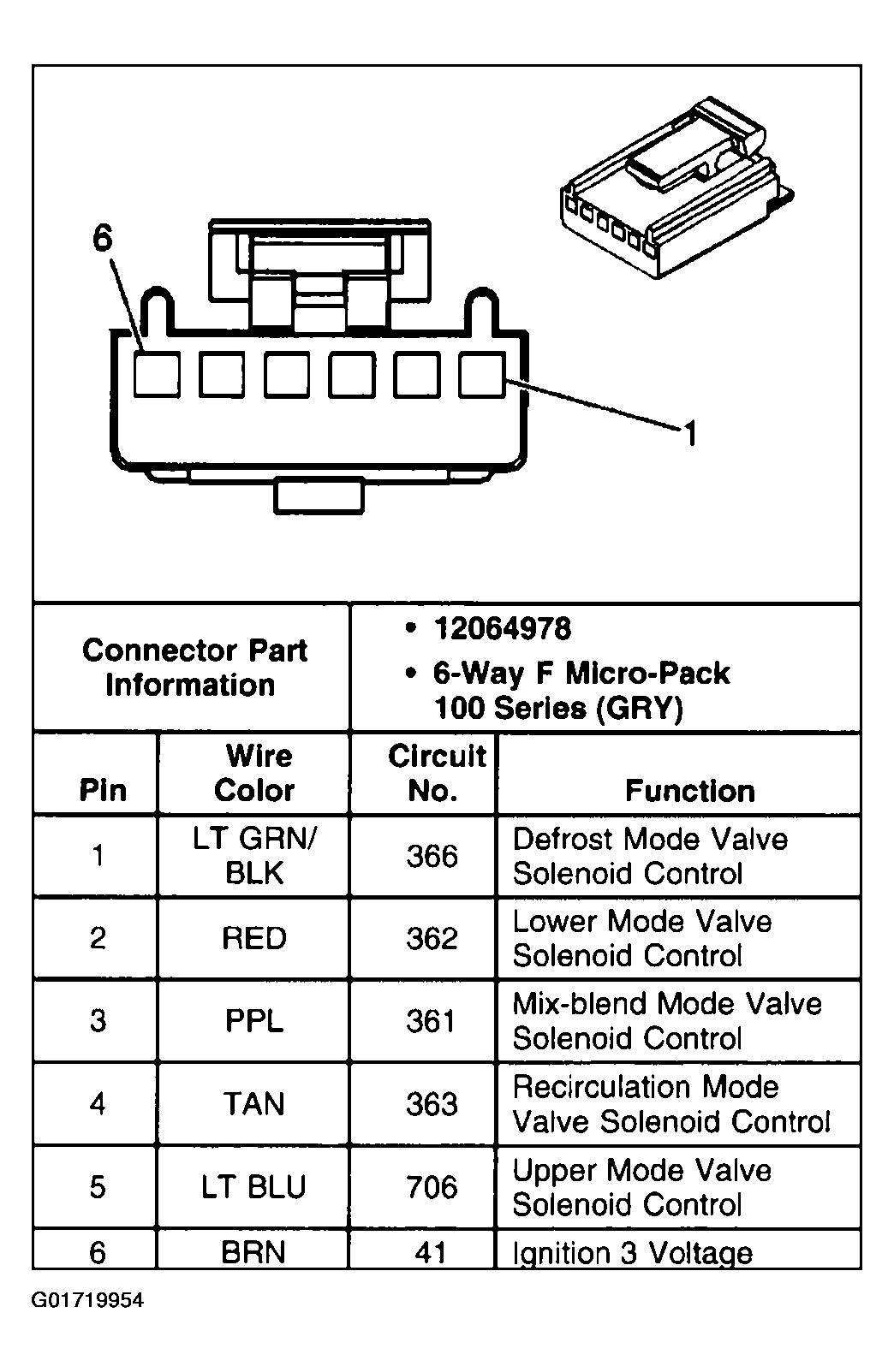

Fig 11: Vacuum Control Assembly

G01719954

Courtesy of GENERAL MOTORS CORP.
