EVAP Canister: Installation
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

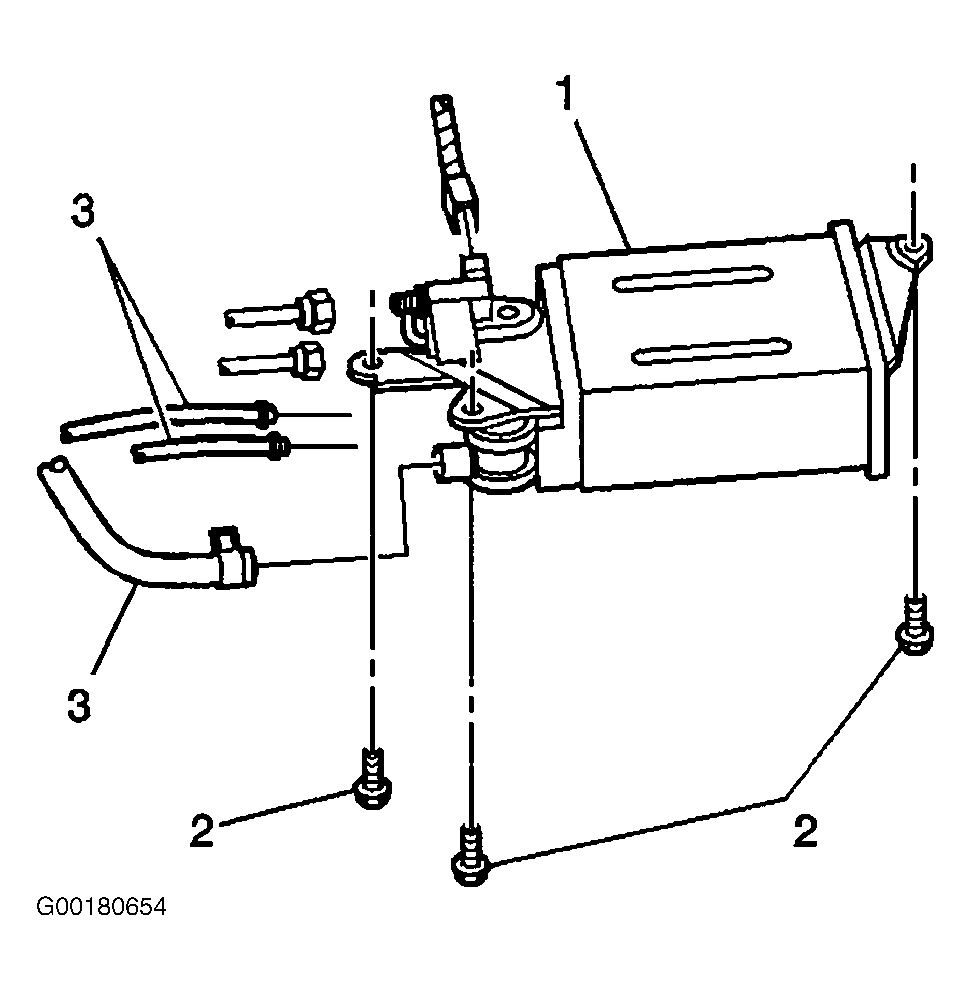

- Install EVAP canister (1) to vehicle underbody and secure with the 3 bolts (2).
- Tighten the EVAP canister bracket support bolts (2) to specification. See TORQUE SPECIFICATIONS .
- Connect 3 EVAP hoses (3) to EVAP canister (1). See Figure .
- Connect EVAP pressure switching solenoid harness connector (4).

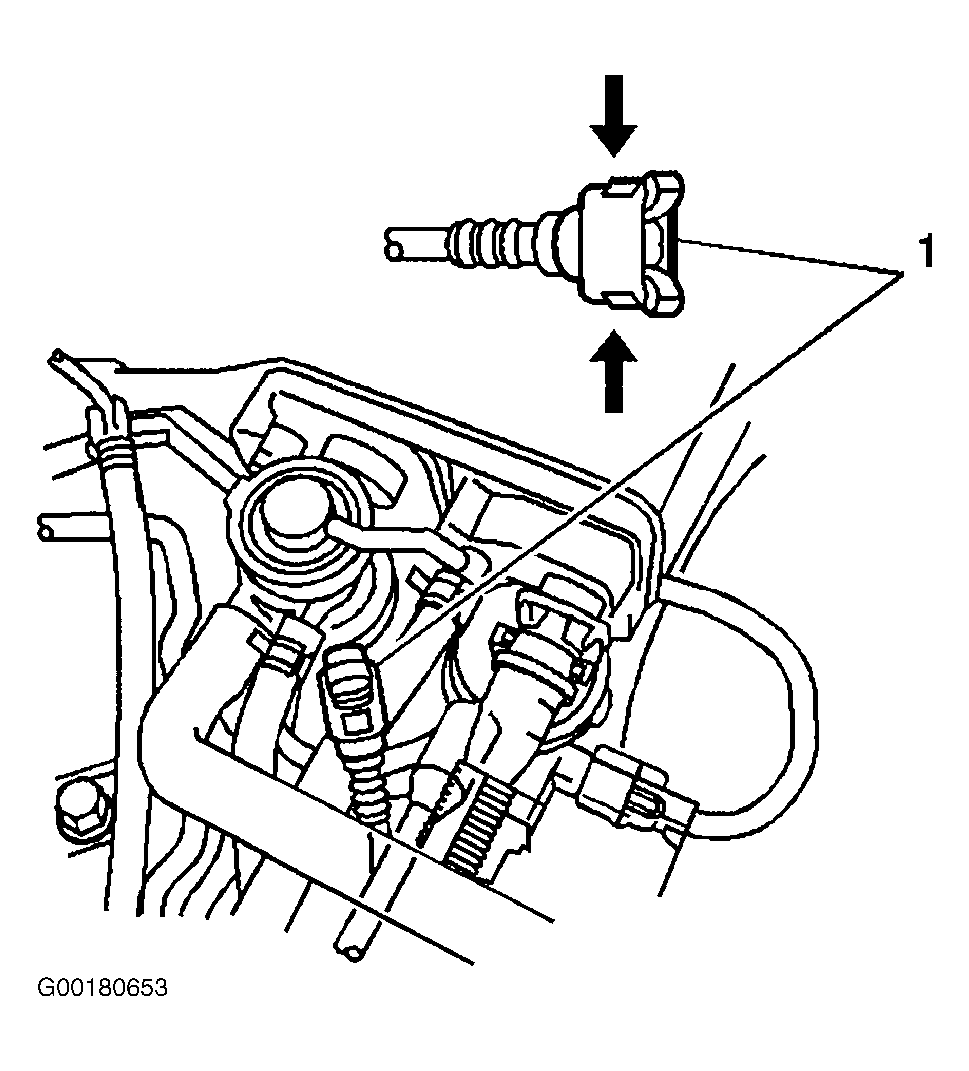

- Connect EVAP vapor line (1) to EVAP canister port by pinching both sides of the hose connector (1). See Figure .

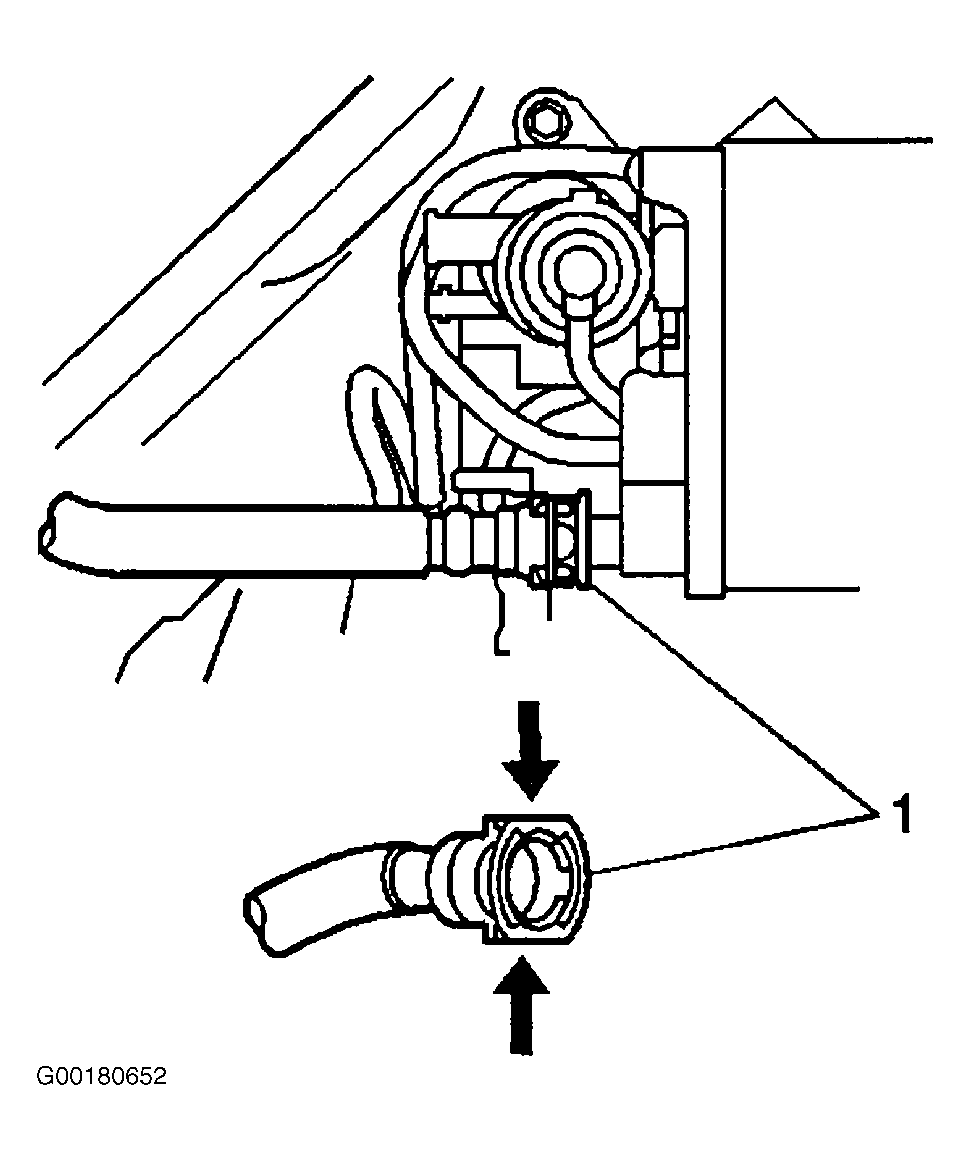

- Connect ORVR vent line (1) to EVAP canister port by pinching both sides of the hose connector (1). See Figure .
- Lower vehicle.
