Fill Limiter Vent Valve: Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Remove fuel tank. See FUEL TANK .
Use a screwdriver to release the lock tab of the Fill Limiter Vent Valve (FLVV) cover (1). See Fig 1 .
Remove the FLVV cover (1) by rotating the cover counter clockwise while lifting up.
Insert a pry tool (2) between the FLVV (1) and the FLVV gasket. See Fig 2 .
Lift all around the outer edge of the FLVV and remove the FLVV (1) from the fuel tank.

Fig 1: Releasing FLVV Cover Lock Tab

Courtesy of GENERAL MOTORS CORP.

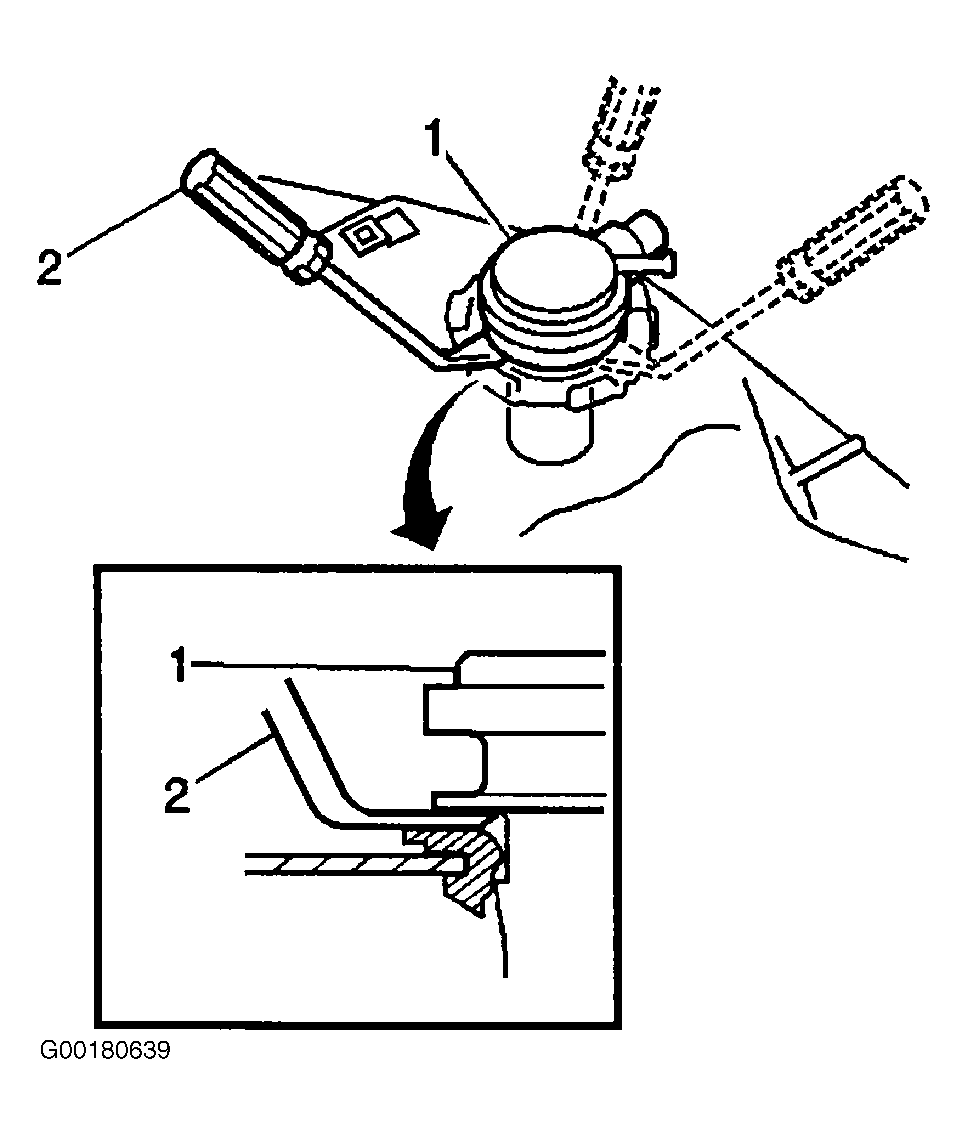

Fig 2: Removing FLVV From Fuel Tank

Courtesy of GENERAL MOTORS CORP.
