Installation (Engine Has Been Rotated With Distributor Removed)

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Installing the driven gear 180 degrees out of alignment, or locating the rotor in the wrong holes, will cause a no-start condition. Premature engine wear or damage may result. If the malfunction indicator lamp illuminates after installing the distributor and DTC P1345 is set, the distributor has been installed incorrectly.
  1. If engine was rotated after distributor was removed, remove No. 1 spark plug. Place finger over cylinder No. 1 spark plug hole. Crank engine slowly until compression is felt. The 2 marks on the crankshaft pulley should align with the 2 engine front cover tabs. See Fig 1 . If necessary, rotate engine by hand until timing marks are fully aligned.
  2. Align White paint mark on bottom stem of distributor and the pre-drilled indent hole in the bottom of the gear. See Fig 2 . Using a long screwdriver, align the oil pump driveshaft to the drive tab on the distributor.
  3. Carefully lower distributor into engine with flat side of distributor housing facing toward front of vehicle. See Fig 3 . Once distributor is fully seated, distributor rotor should be aligned with pointer cast into distributor housing.
  4. If distributor rotor is not properly aligned, remove distributor and repeat procedure until mark aligns properly. Install distributor hold-down bolt and tighten to specification. See TORQUE SPECIFICATIONS  . To complete installation, reverse removal procedure. Install new distributor cap screws. Tighten to specification. Repeat installation procedure if the malfunction indicator lamp illuminates after installing the distributor.

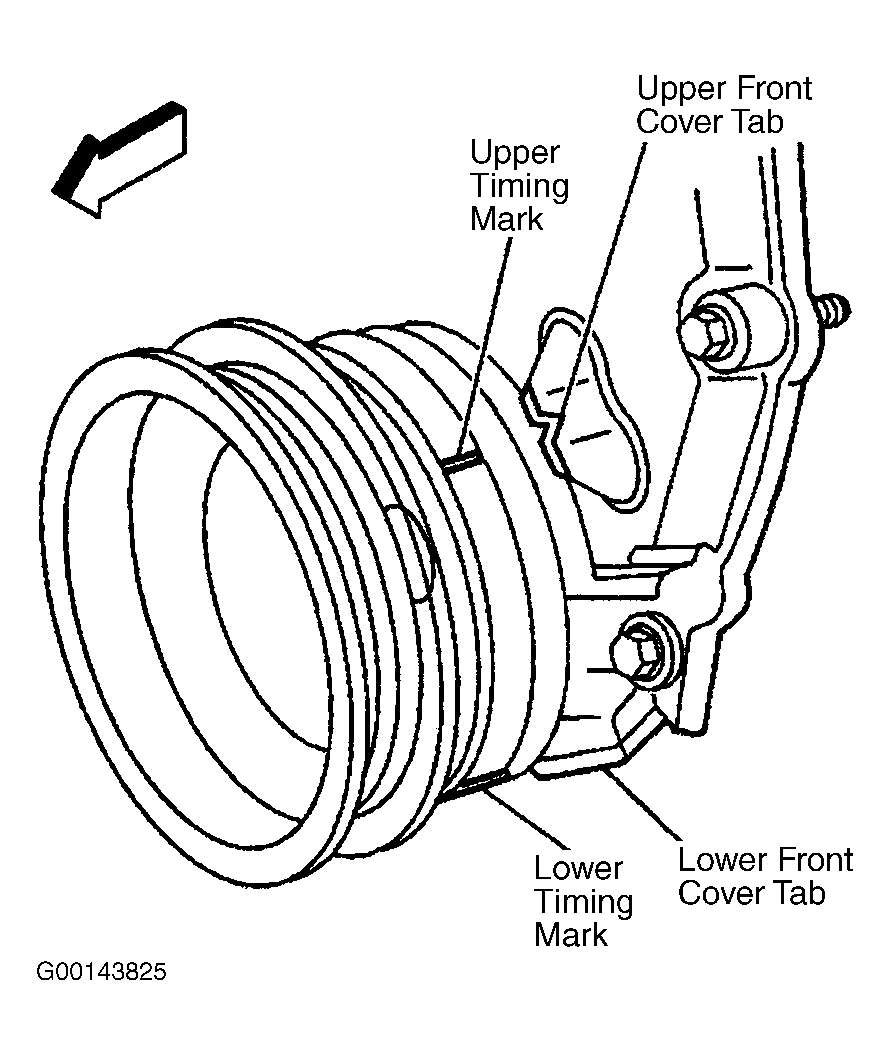

Fig 1: Aligning Timing Marks
G00143825Courtesy of GENERAL MOTORS CORP.

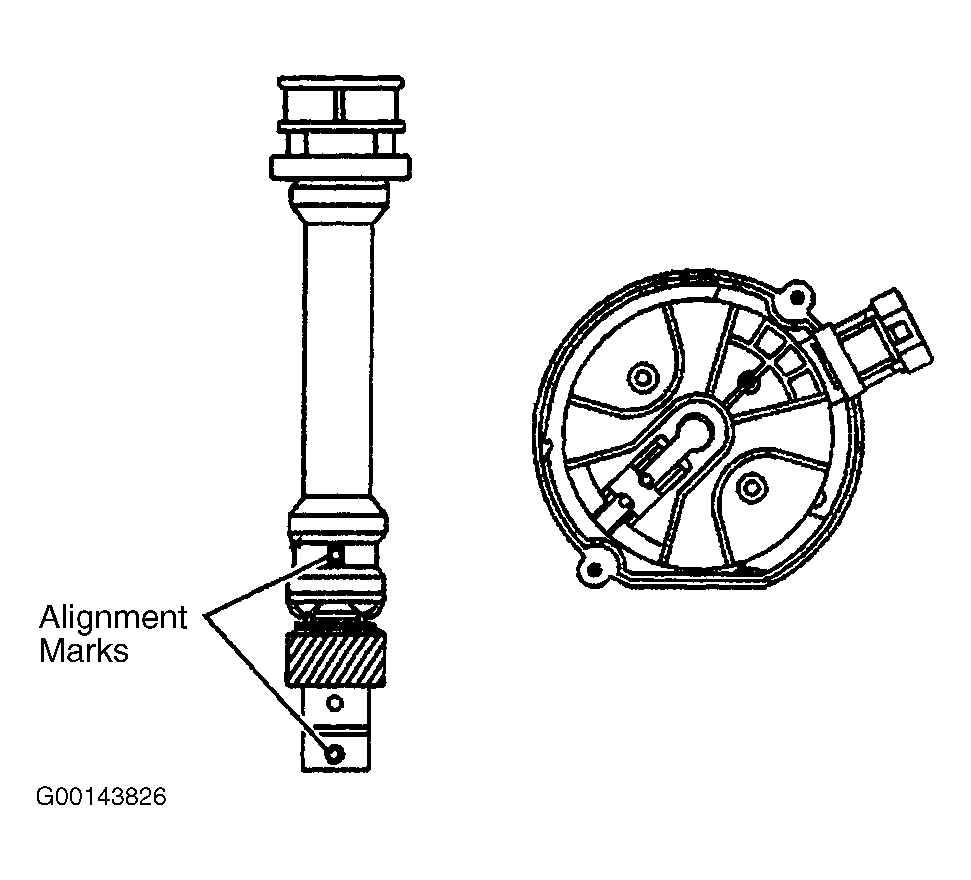

Fig 2: Aligning Distributor Marks
G00143826Courtesy of GENERAL MOTORS CORP.

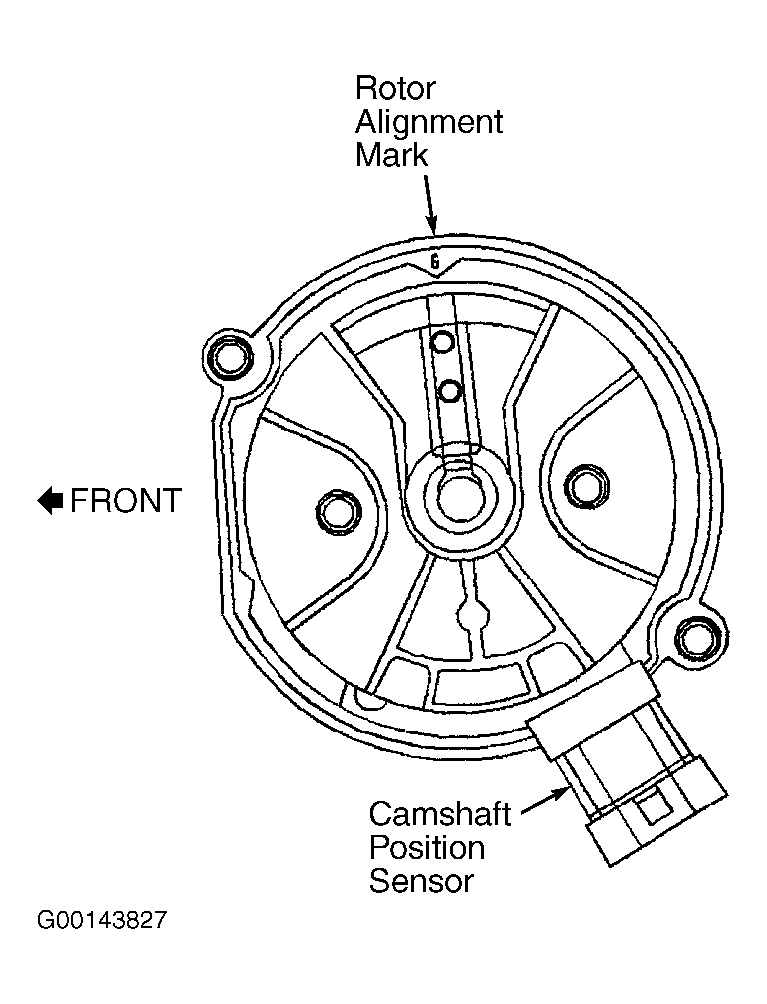

Fig 3: Rotor Position With Distributor Installed
G00143827Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying Rotor Positions
G00217043Courtesy of GENERAL MOTORS CORP.
