Component Location

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATION

Components Location
Air Temperature Actuator Bottom Right Of HVAC Module
Blower Motor Bottom Left Of HVAC Module
Blower Motor Resistor Bottom Left Of HVAC Module
Front Auxiliary Control Assembly In Headliner
Heater Core Top Of HVAC Module
Mode Actuator Top Right Of HVAC Module
Passenger Compartment Air Filter Left Side Of HVAC Module
Recirculation Actuator Top Left Of HVAC Module

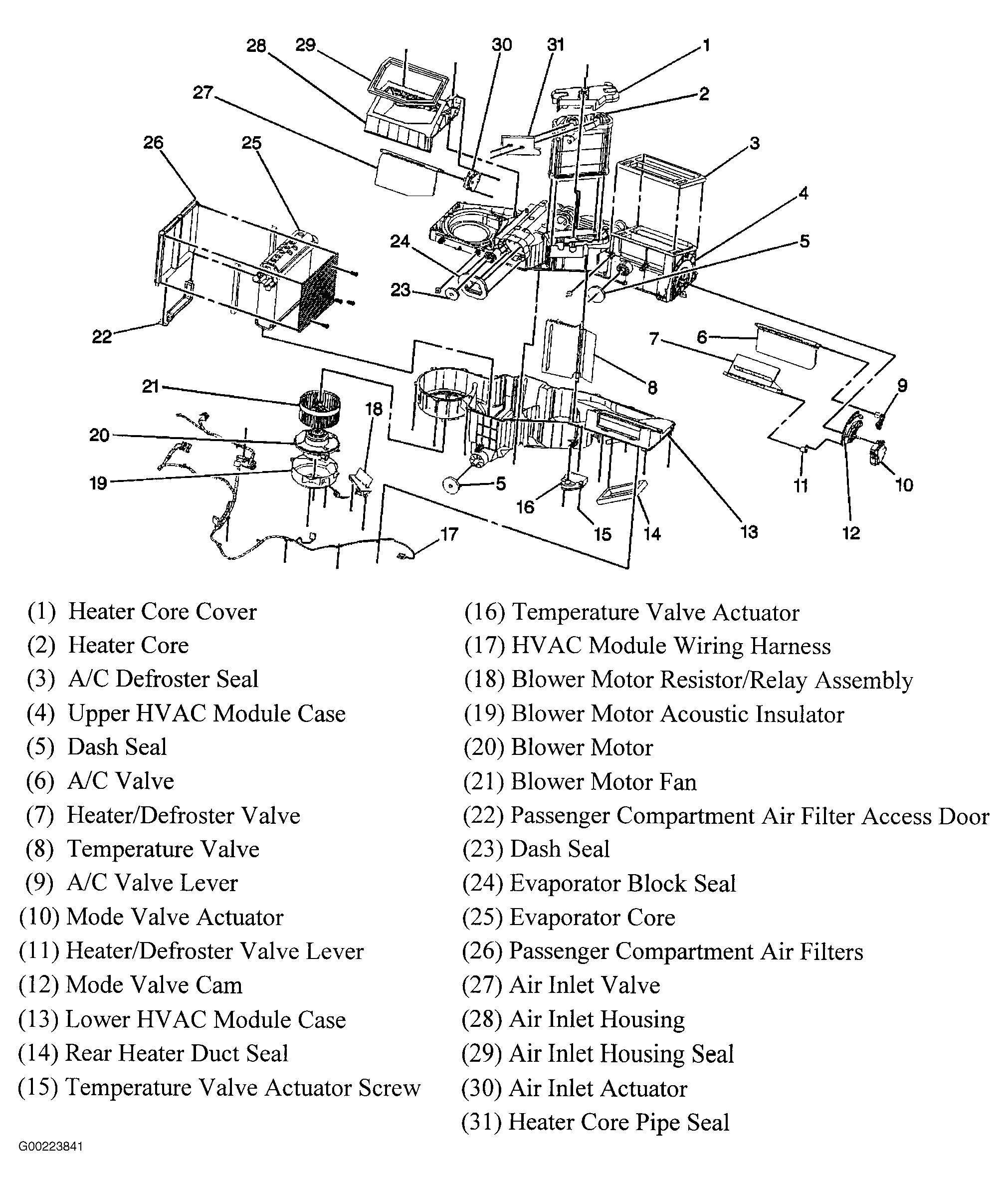

Fig 1: Locating HVAC Module Components (1 Of 8)
G00223841Courtesy of GENERAL MOTORS CORP.

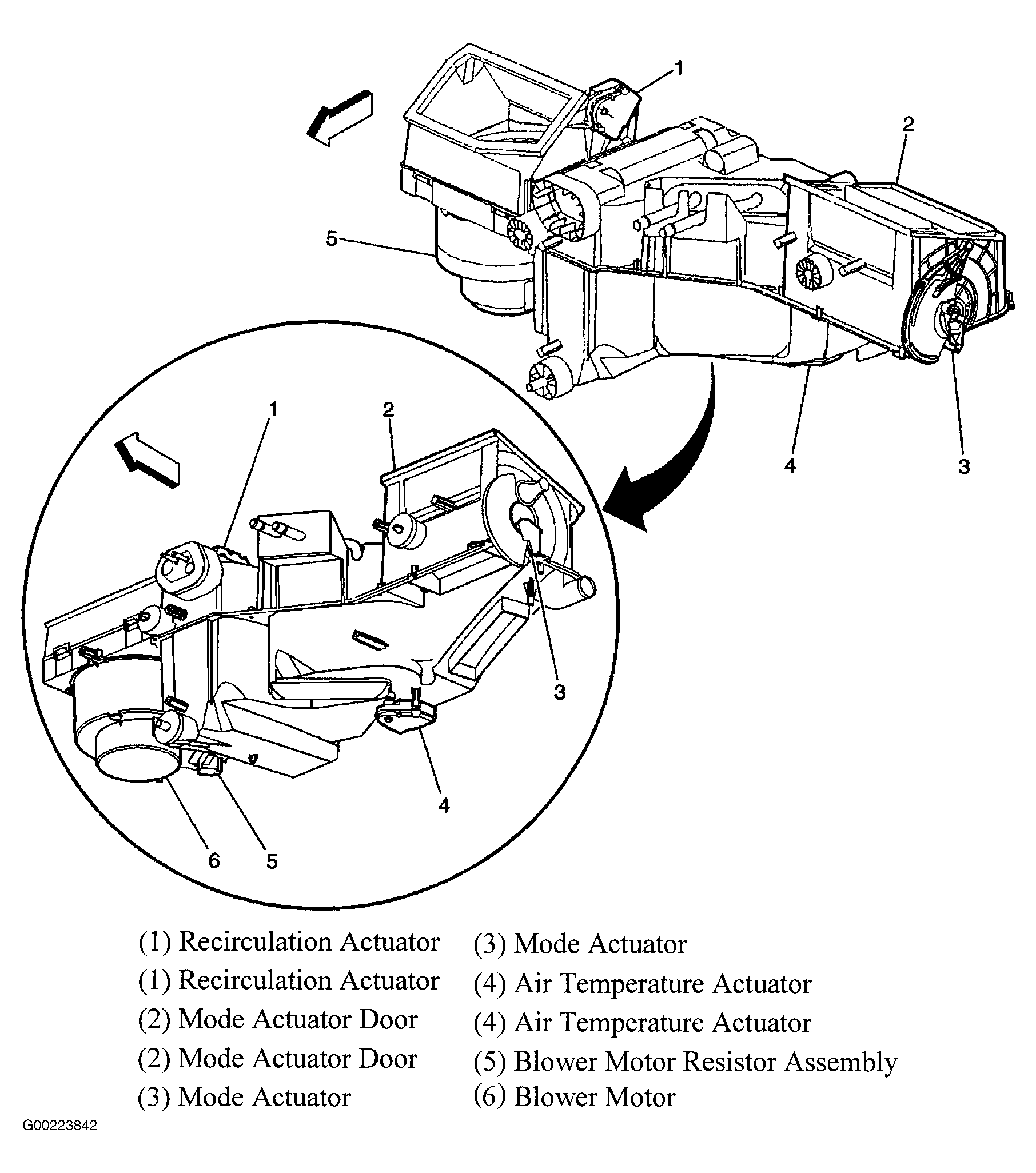

Fig 2: Locating HVAC Module Components (2 Of 8)
G00223842Courtesy of GENERAL MOTORS CORP.
Fig 3: Locating HVAC Module Components (3 Of 8)
G00223843Courtesy of GENERAL MOTORS CORP.

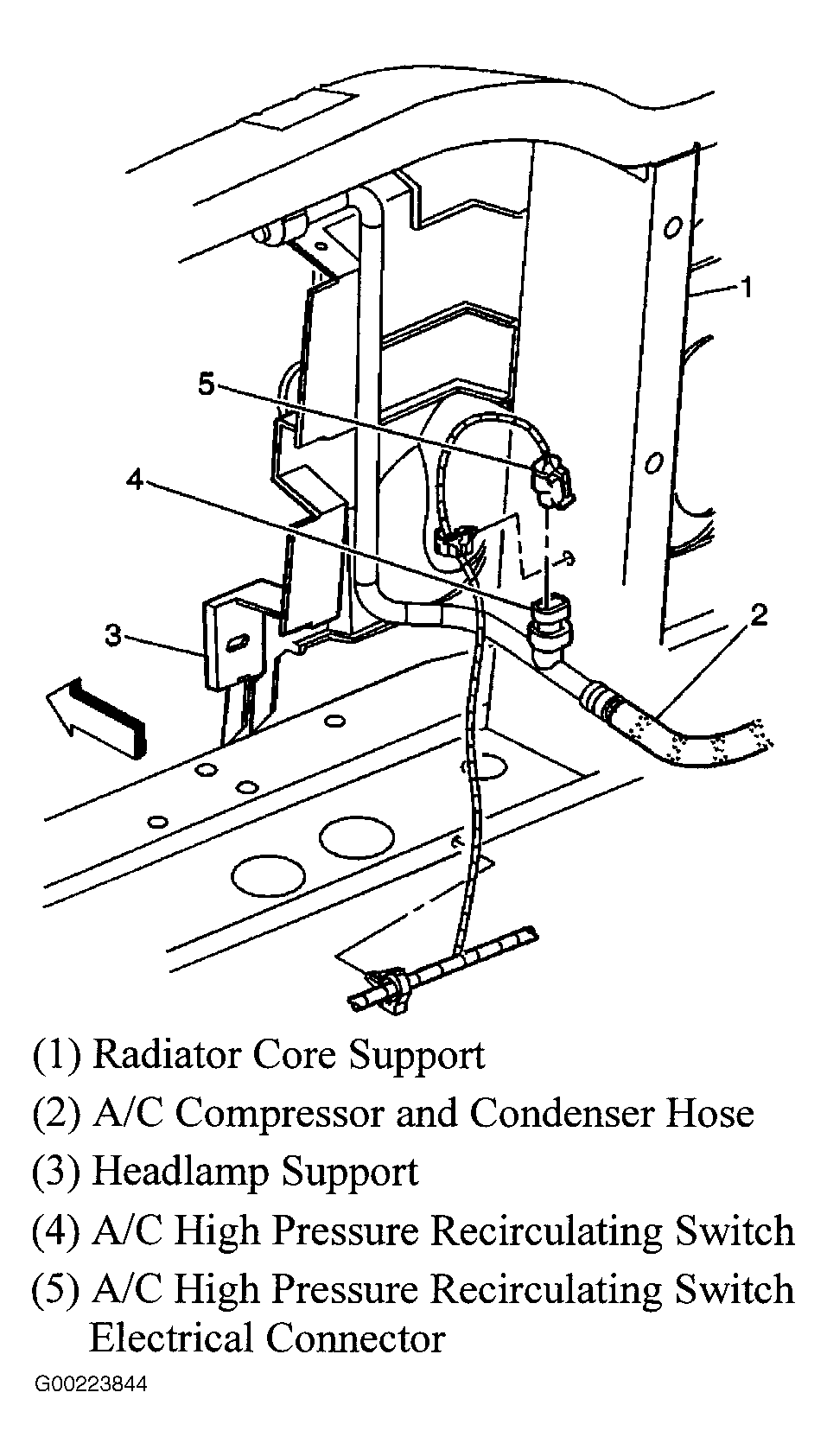

Fig 4: Locating HVAC Module Components (4 Of 8)
G00223844Courtesy of GENERAL MOTORS CORP.

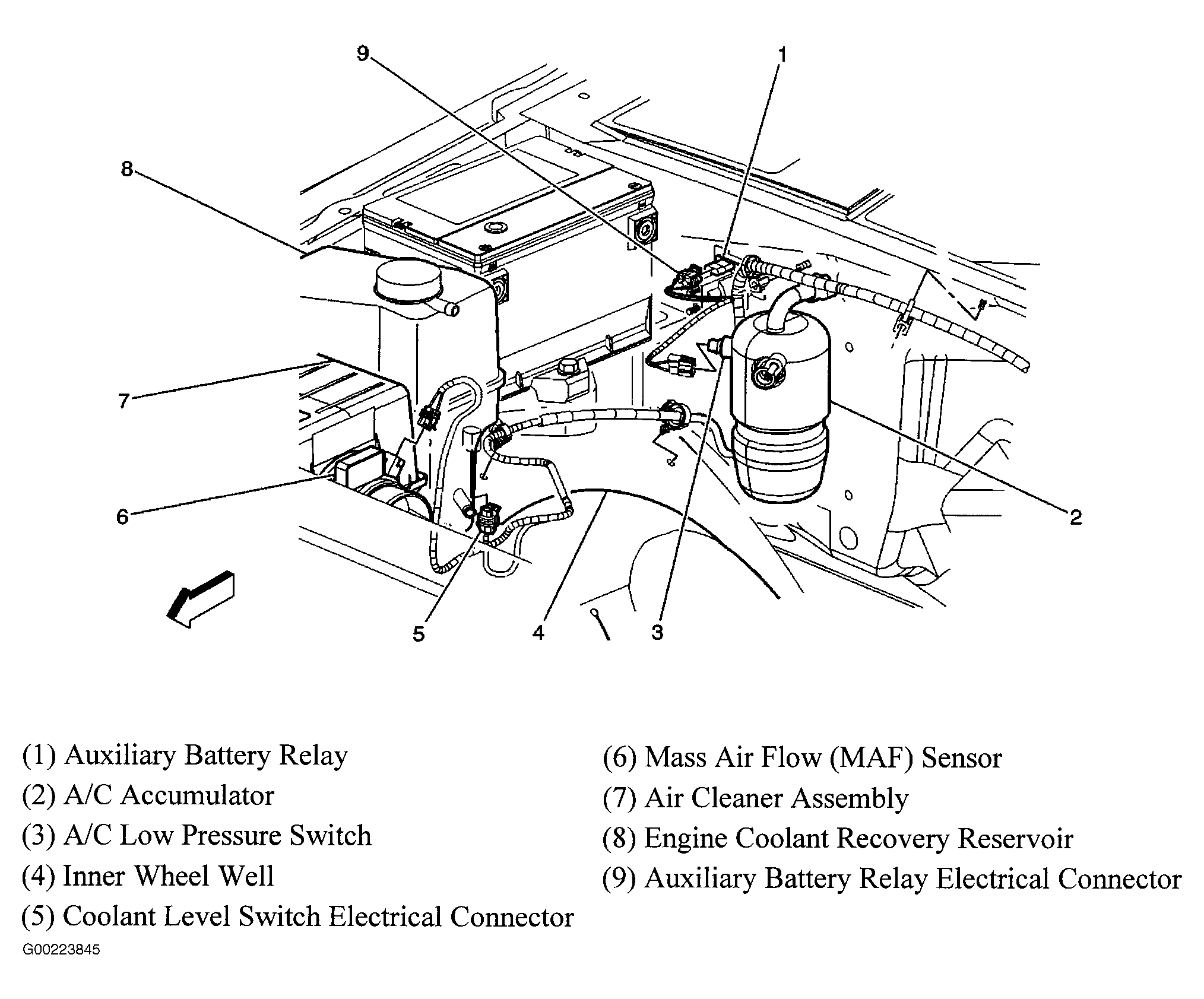

Fig 5: Locating HVAC Module Components (5 Of 8)
G00223845Courtesy of GENERAL MOTORS CORP.

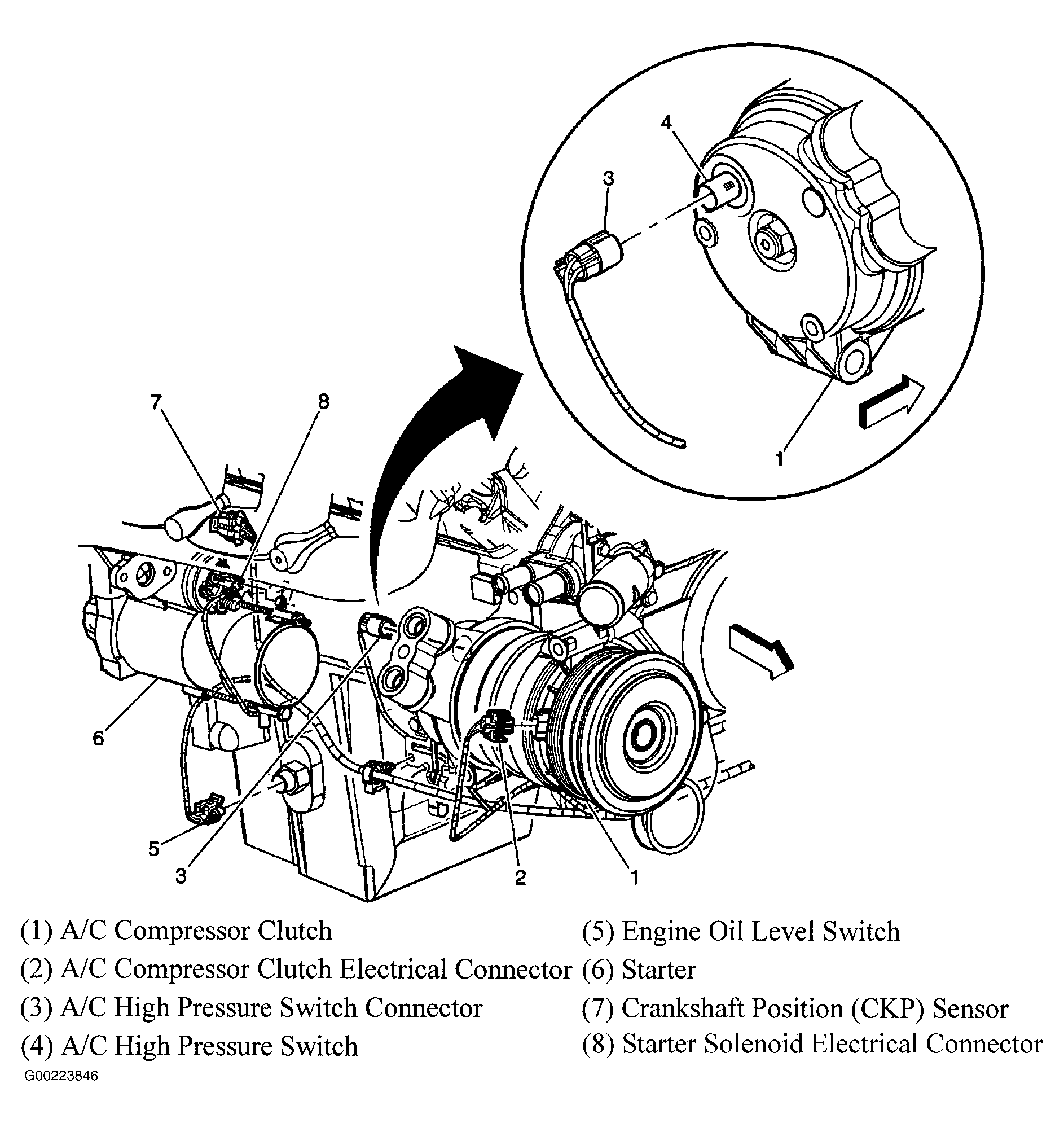

Fig 6: Locating HVAC Module Components (6 Of 8)
G00223846Courtesy of GENERAL MOTORS CORP.

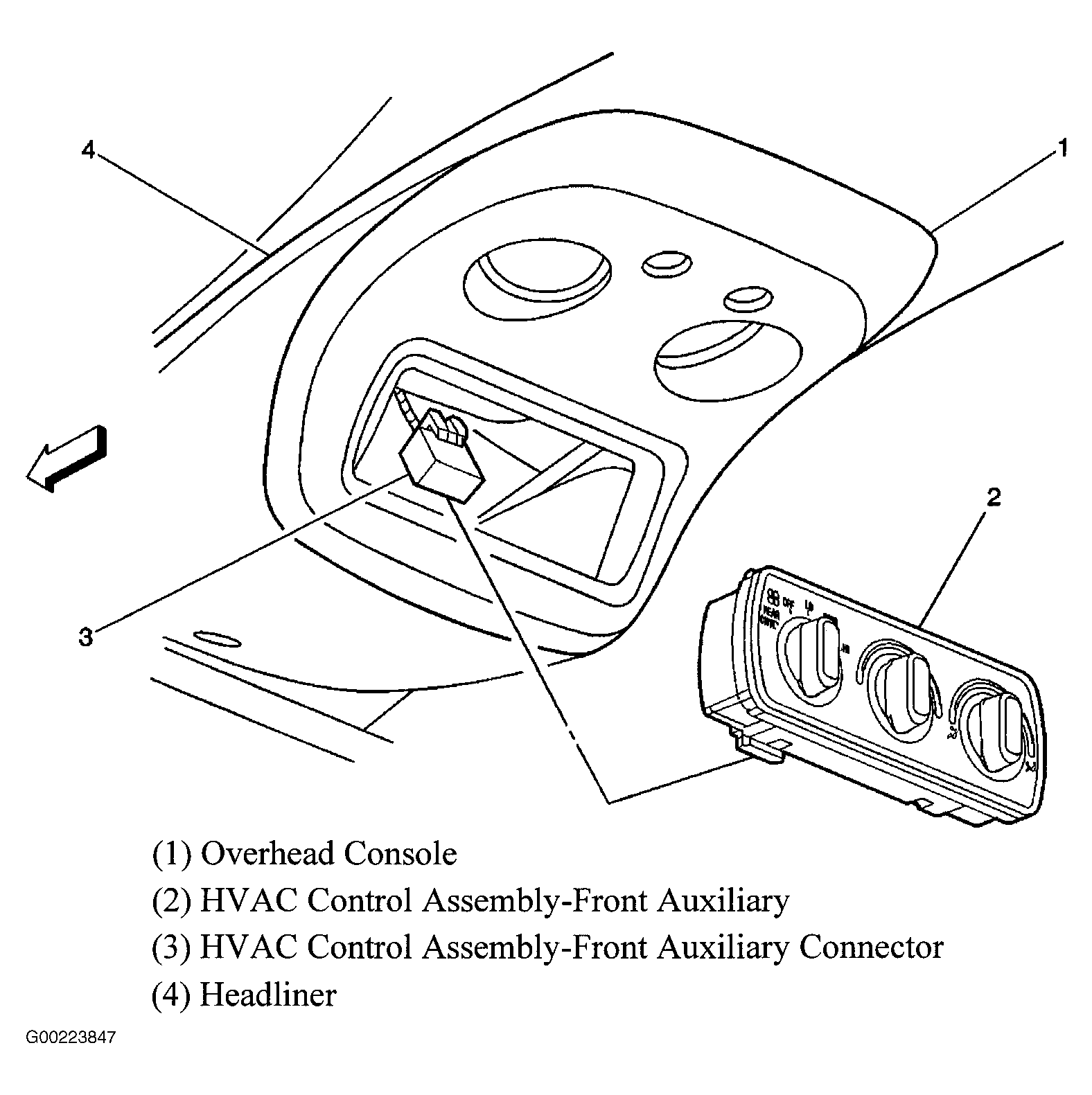

Fig 7: Locating HVAC Module Components (7 Of 8)
G00223847Courtesy of GENERAL MOTORS CORP.

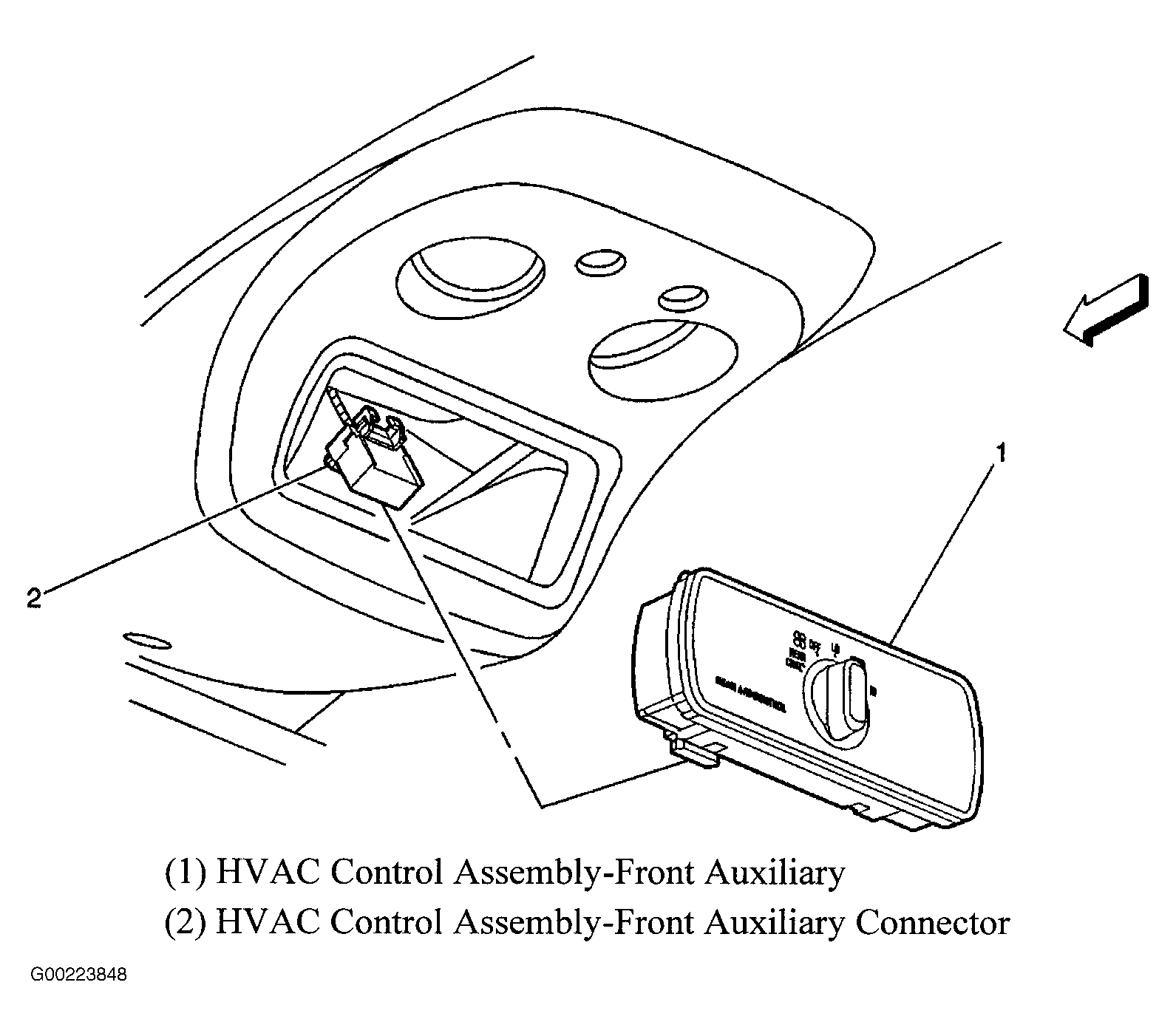

Fig 8: Locating HVAC Module Components (8 Of 8)
G00223848Courtesy of GENERAL MOTORS CORP.
