Mode Linkage
WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the left insulator panel. Remove the knee bolster screws. Pull on the knee bolster to release the upper retainers. Remove the knee bolster.

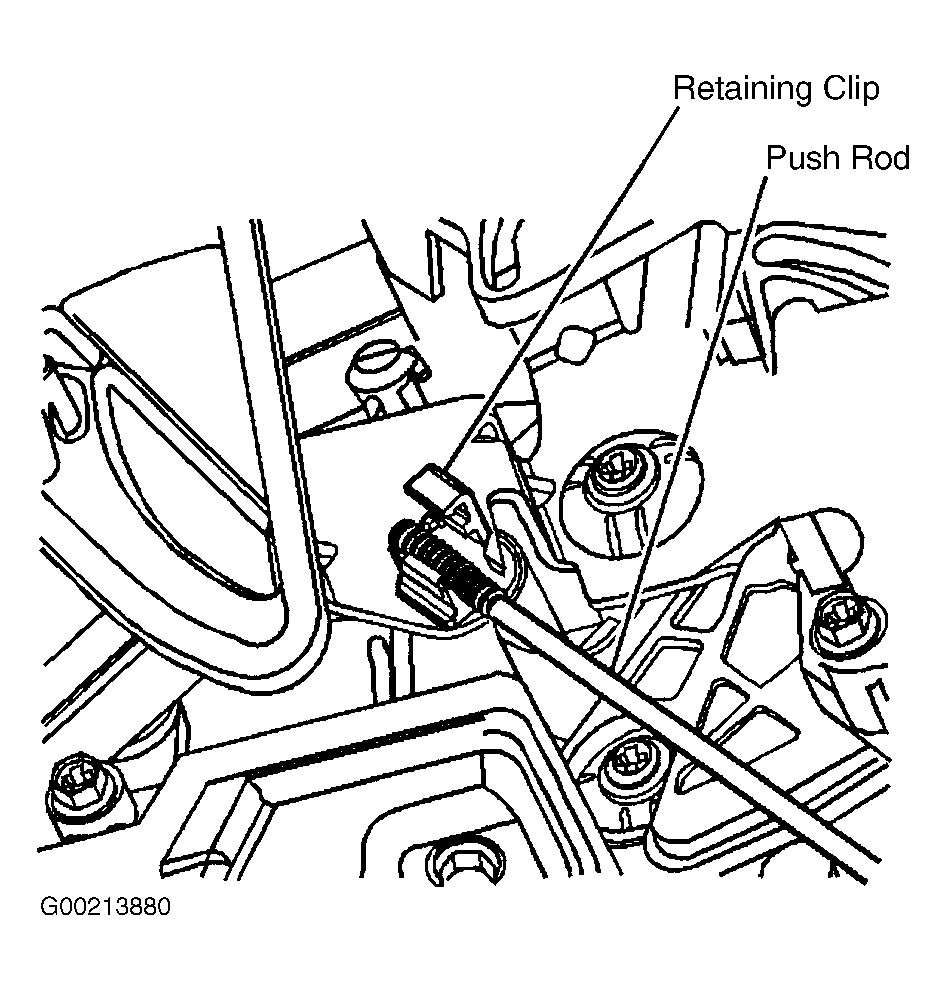

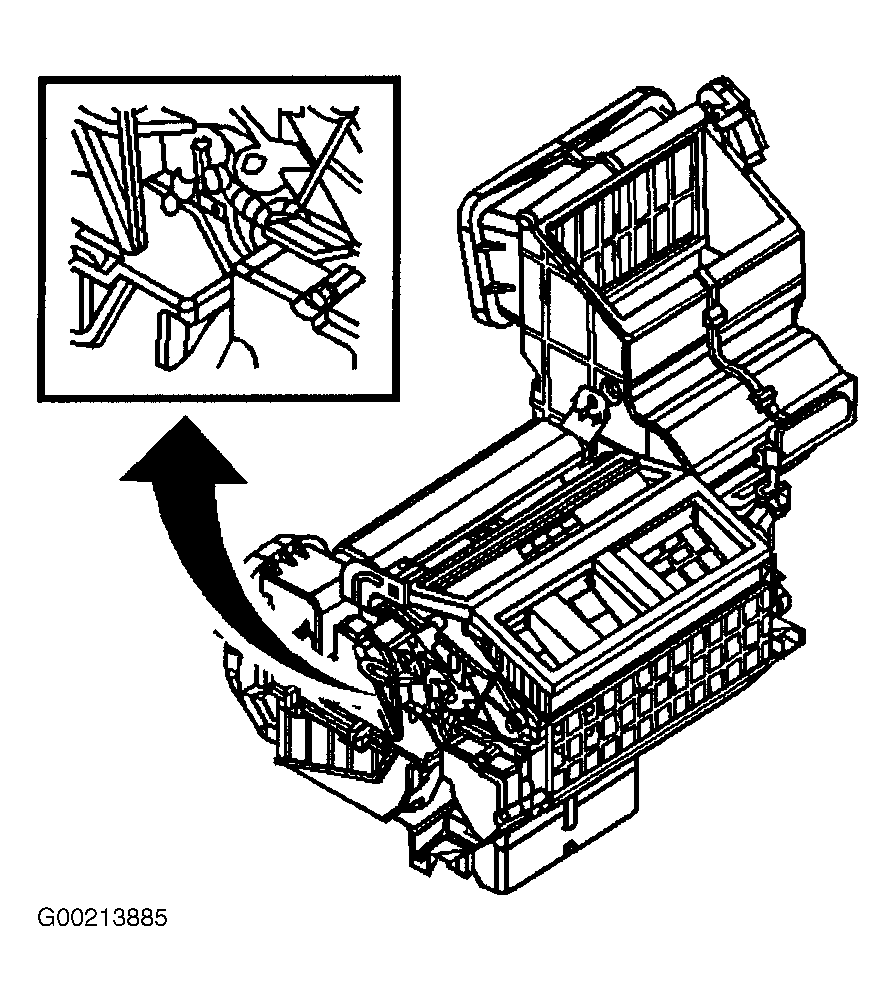

- Locate to mode door linkage. See Fig 1 . Open the push rod retainer clip with a small flat bladed screwdriver. Disconnect the push rod from the retainer clip. See Fig 2 .
- Align the third thread on the push rod with the end of the retainer clip. Close the push rod retainer clip. Inspect the air flow during the following conditions to verify proper operation; no significant air bleed from the vent outlet during HEATER mode. Suitable air flow from the vent outlet during BI-LEVEL mode.
- Open the push rod retainer clip with a small flat bladed screwdriver. Disconnect the push rod from the retainer. Position the push rod so that the tip of the push rod will appear longer by one thread. Close the retainer clip and test again for air bleed. Repeat adjustment procedure if necessary.
- Open the push rod retainer clip with a small flat bladed screwdriver. Disconnect the push rod from the retainer. Position the push rod so that the tip of the push rod will appear shorter by one thread. Close the retainer clip and test again for suitable air flow. Repeat adjustment procedure if necessary.
- Align the clips on the knee bolster with the corresponding slots on the I/P. Push in to secure the knee bolster to the I/P. Install the knee bolster screws. Install the left insulator panel.
NOTE:
Perform the following if air bleed is felt from the vent outlet during HEATER mode.
NOTE:
Perform the following if there is no air flow from the vent outlet during BI-LEVEL mode.
