Component Location
WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS
| Component | Location | |
|---|---|---|
| A/C Refrigerant Pressure Sensor | Left Side Of Engine Compartment | |
| Air Temperature Actuator | ||
| Left | Left Side Of HVAC Module | |
| Right | Right Side Of HVAC Module | |
| Blower Motor | Behind Right Side Of Instrument Panel | |

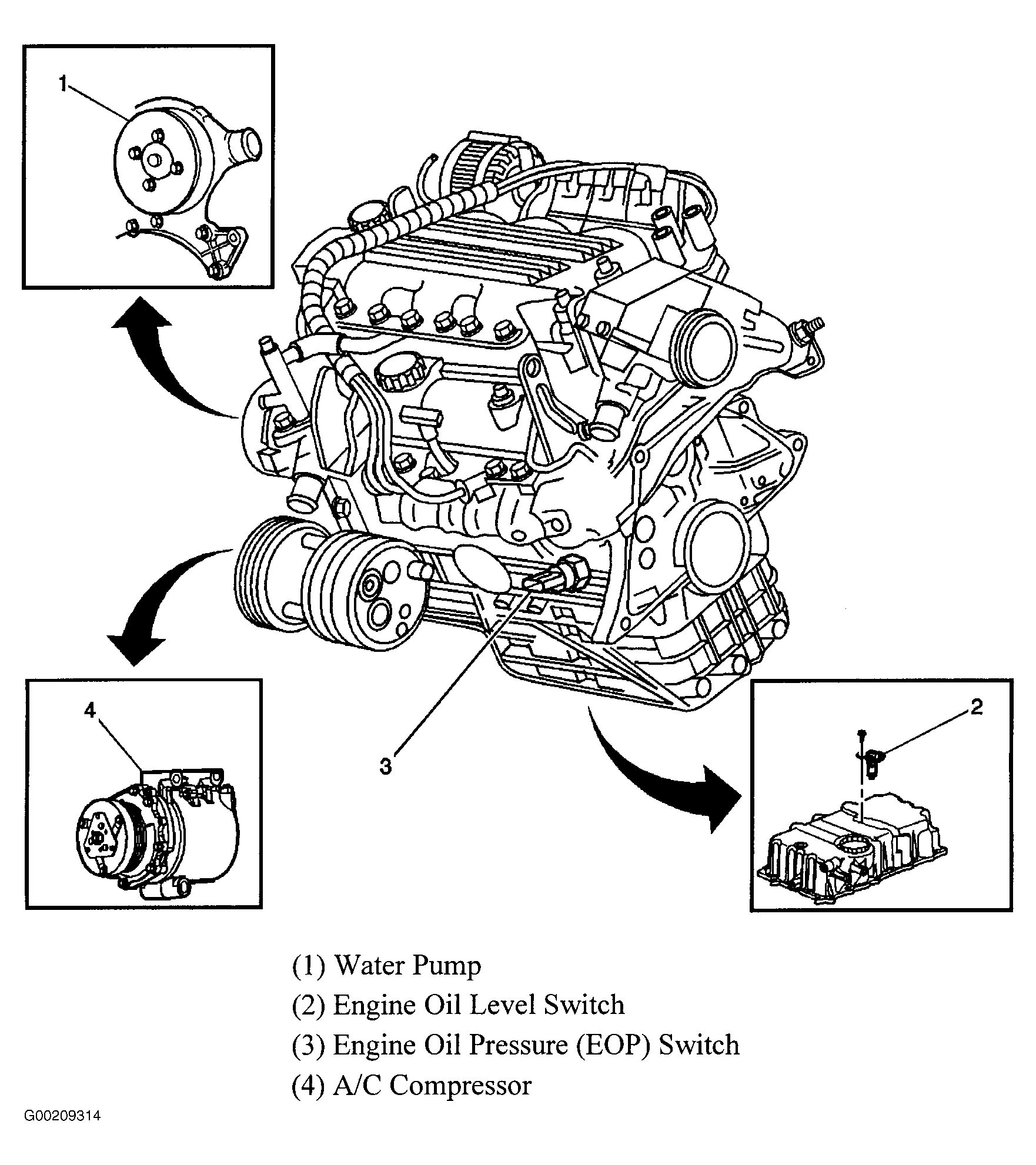

| Compressor | Left Side Of Engine | |
| Compressor Relay | In Electrical Center | |
| Evaporator Temperature Sensor | In HVAC Module | |
| Mode Actuator | Left Side Of HVAC Module | |
| Recirculation Actuator | In Instrument Panel | |
