Connector Identification

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Pressure Sensor Harness Connector Terminals

G00194572

Courtesy of GENERAL MOTORS CORP.

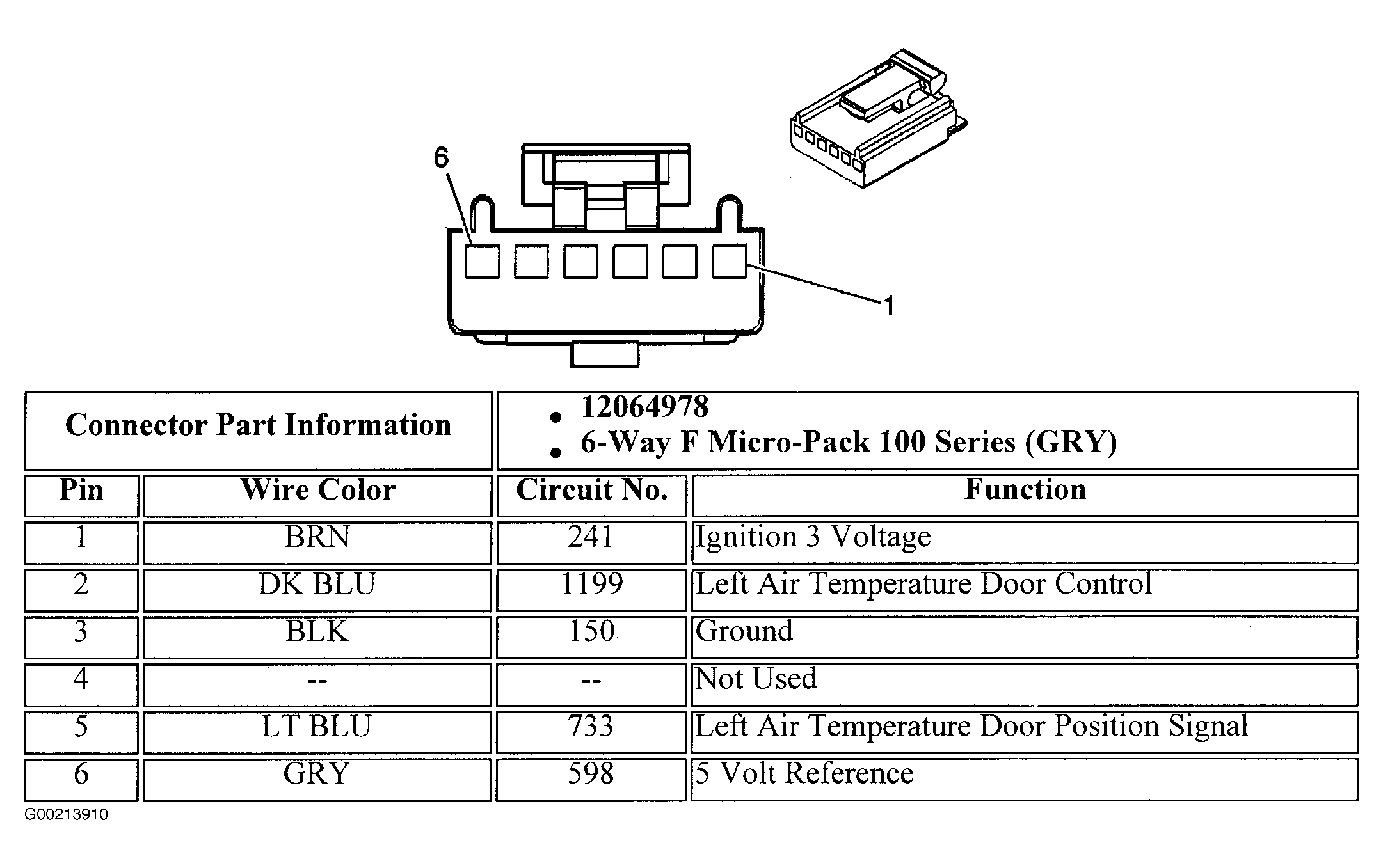

Fig 2: Identifying Air Temperature Actuator (Left) Harness Connector Terminals

G00213910

Courtesy of GENERAL MOTORS CORP.

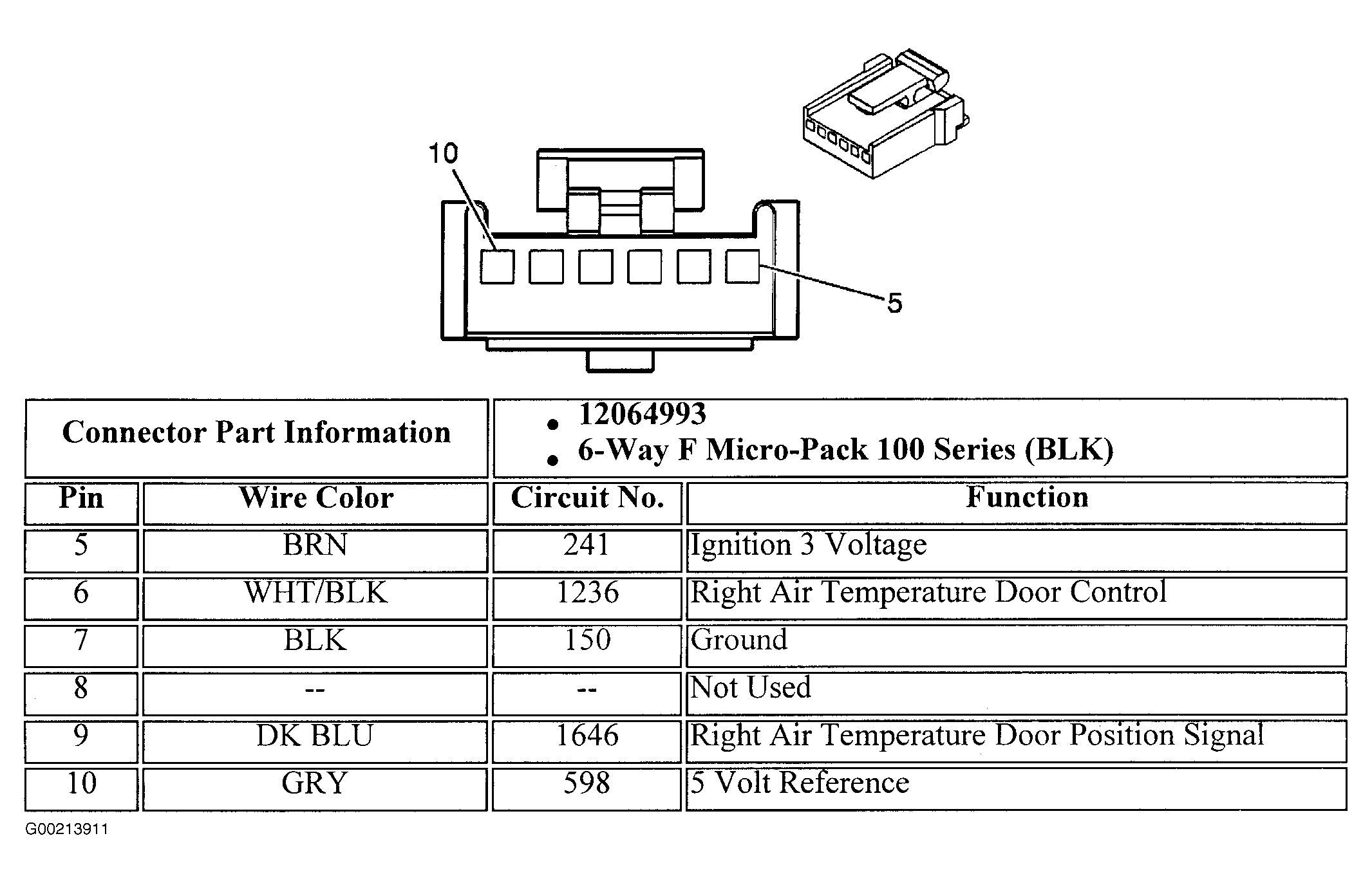

Fig 3: Identifying Air Temperature Actuator (Right) Harness Connector Terminals

G00213911

Courtesy of GENERAL MOTORS CORP.

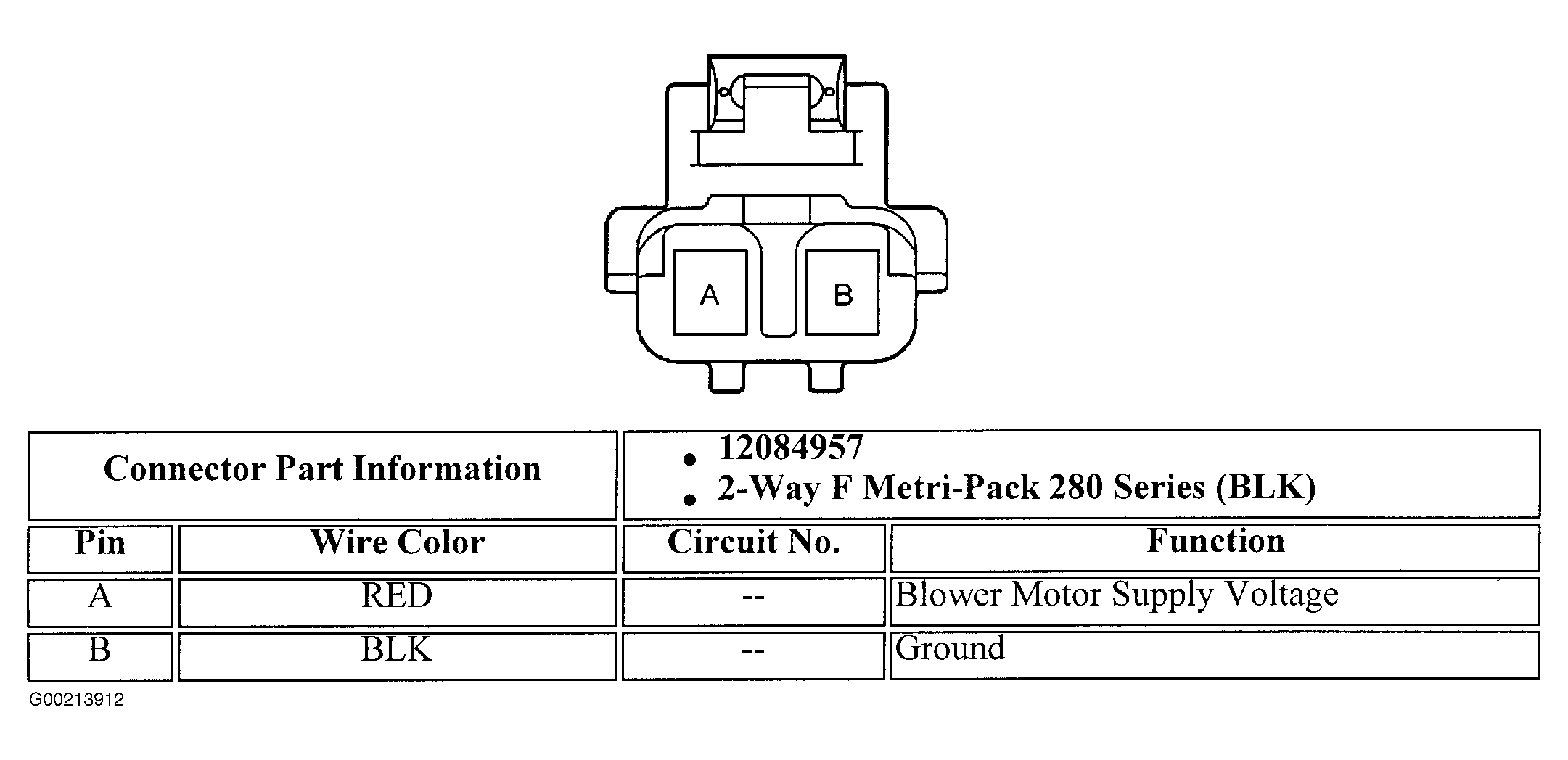

Fig 4: Identifying Blower Motor Electrical Harness Connector Terminals

G00213912

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Blower Motor Control Processor Harness Connector Terminals

G00213913

Courtesy of GENERAL MOTORS CORP.

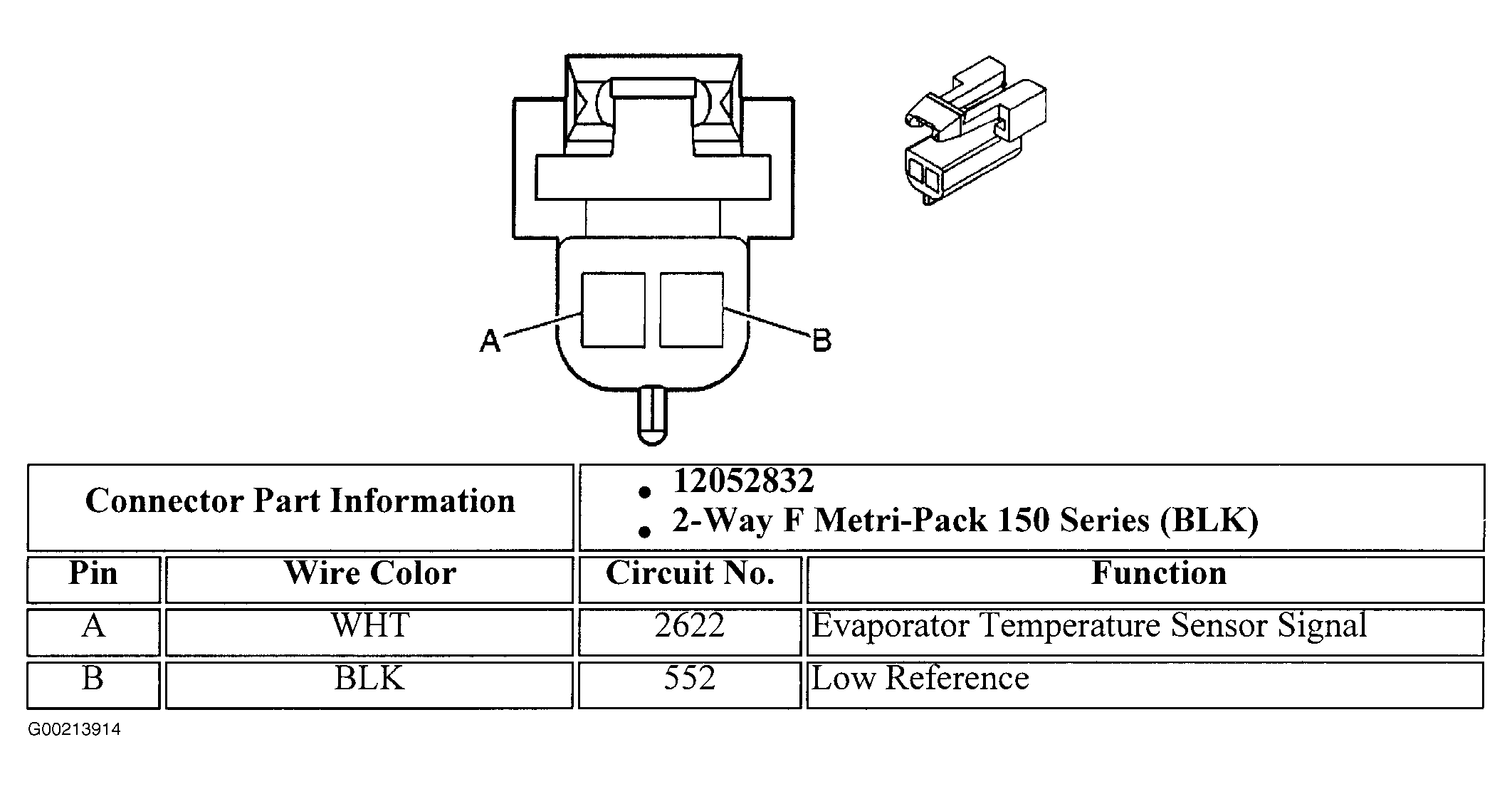

Fig 6: Identifying Evaporator Temperature Sensor Harness Connector Terminals

G00213914

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying HVAC Control Module Harness Connector Terminals

G00213915

Courtesy of GENERAL MOTORS CORP.

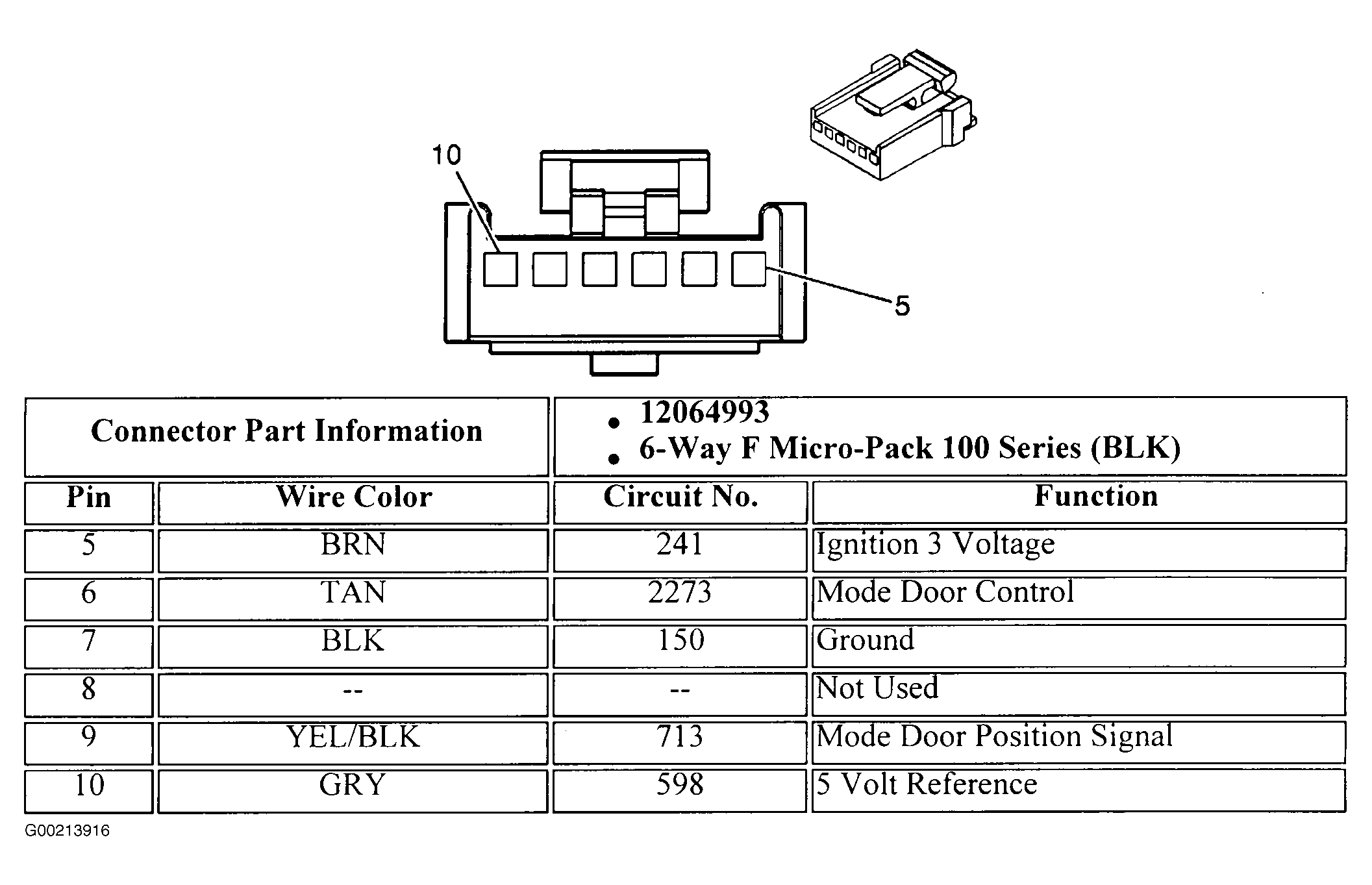

Fig 8: Identifying Mode Actuator Harness Connector Terminals

G00213916

Courtesy of GENERAL MOTORS CORP.

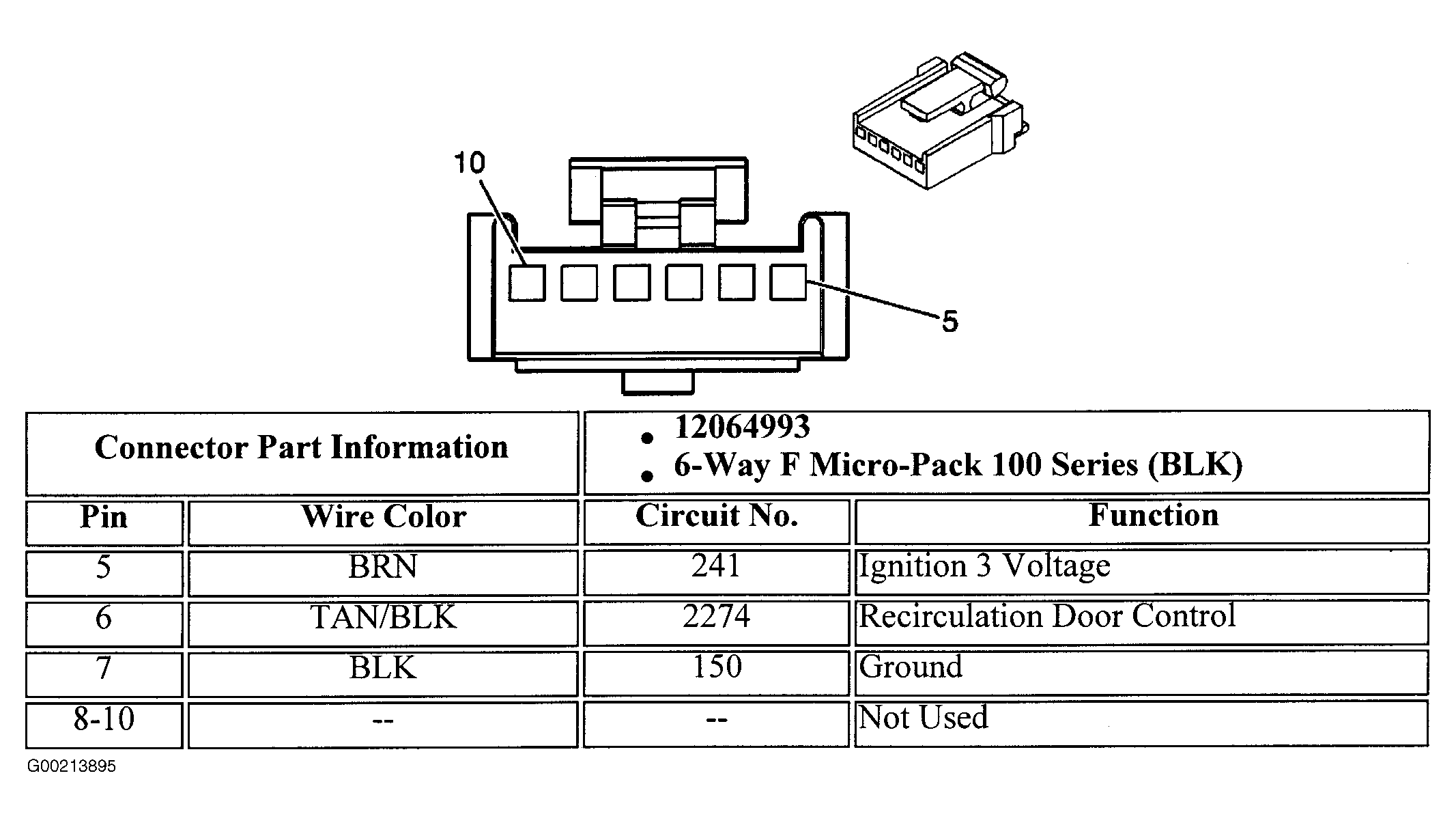

Fig 9: Identifying Recirculation Actuator Harness Connector Terminals

G00213895

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Sunload Sensor Harness Connector Terminals

G00213917

Courtesy of GENERAL MOTORS CORP.
