Blower Motor Control Processor: Installation

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

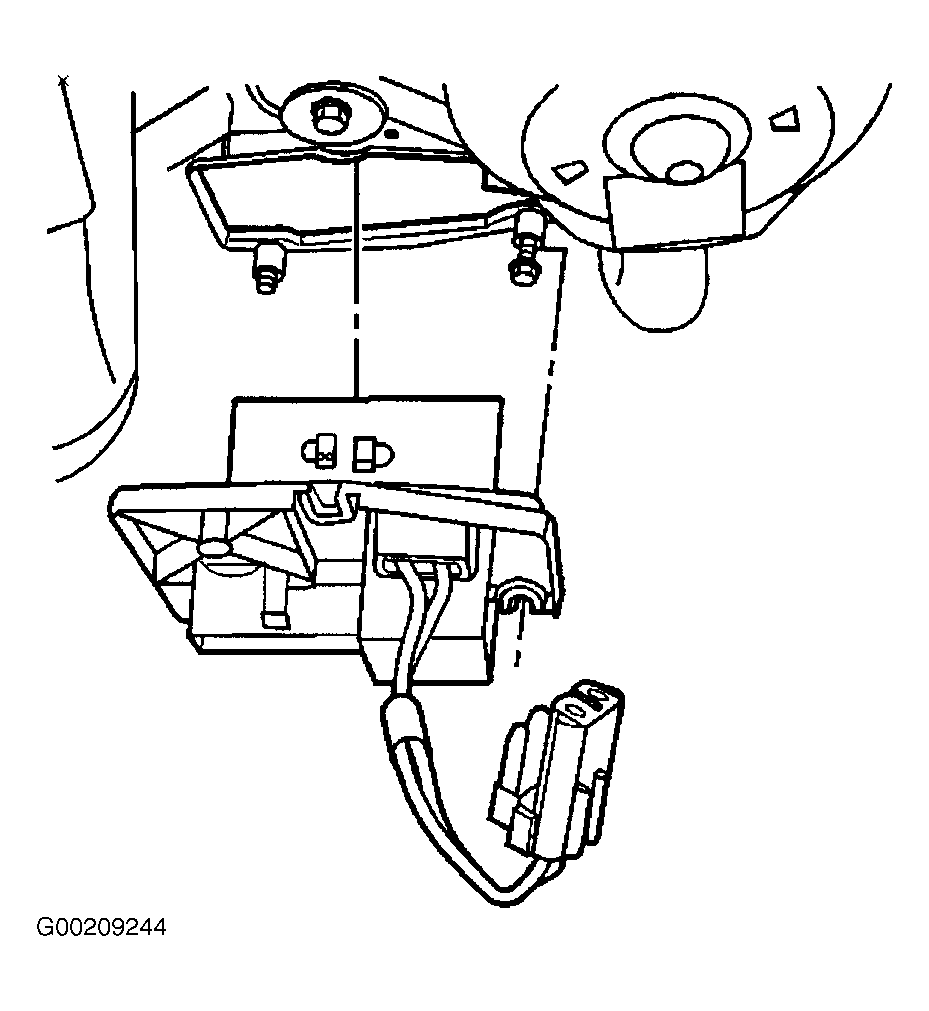

  1. Install the blower motor control processor assembly to the HVAC module assembly. See Figure . Install the rearward and forward mounting screw. Tighten to specified torque. See TORQUE SPECIFICATIONS  .
  2. Connect the electrical connector to the blower control processor assembly. See Figure . Install the blower motor to the HVAC module assembly. Install the blower motor mounting screws. Tighten to specified torque.
  3. Connect the blower motor electrical connector. See Figure . Install the right side instrument panel insulator.
