HVAC Control Module: Installation
WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

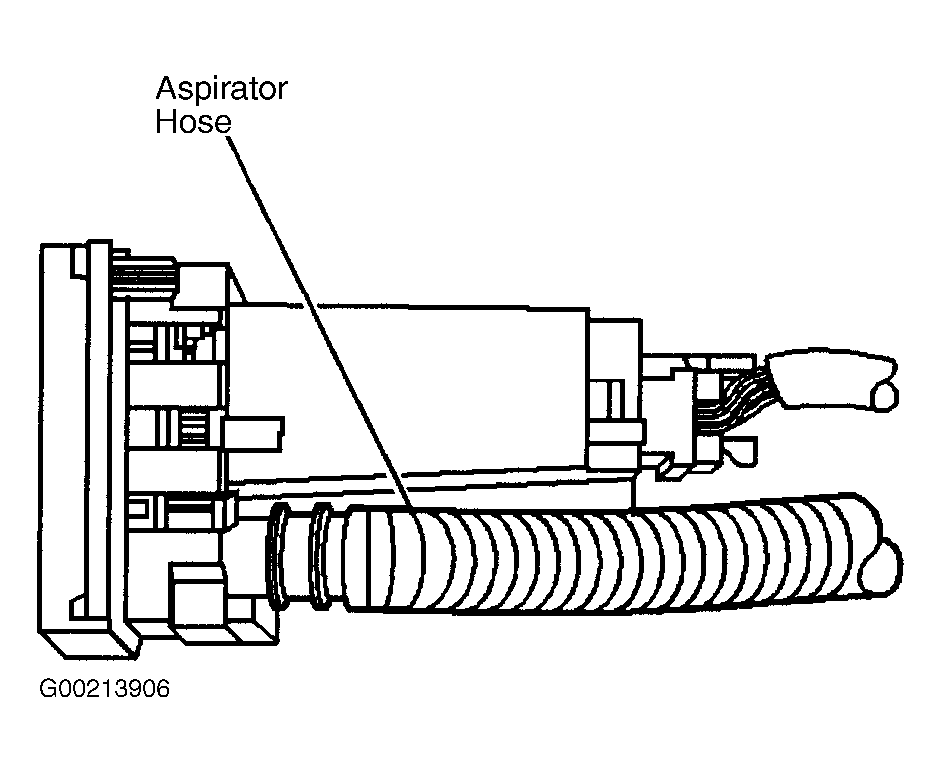

- Connect the electrical connector to the HVAC Control Module. Connect the aspirator hose to the HVAC Control Module. See Figure . Install the HVAC Control Module to the I/P.
- Install the HVAC Control Module retaining screws. Tighten to specified torque. See TORQUE SPECIFICATIONS . Install the I/P cluster trim plate bezel.
