Sun Load Sensor: Installation

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

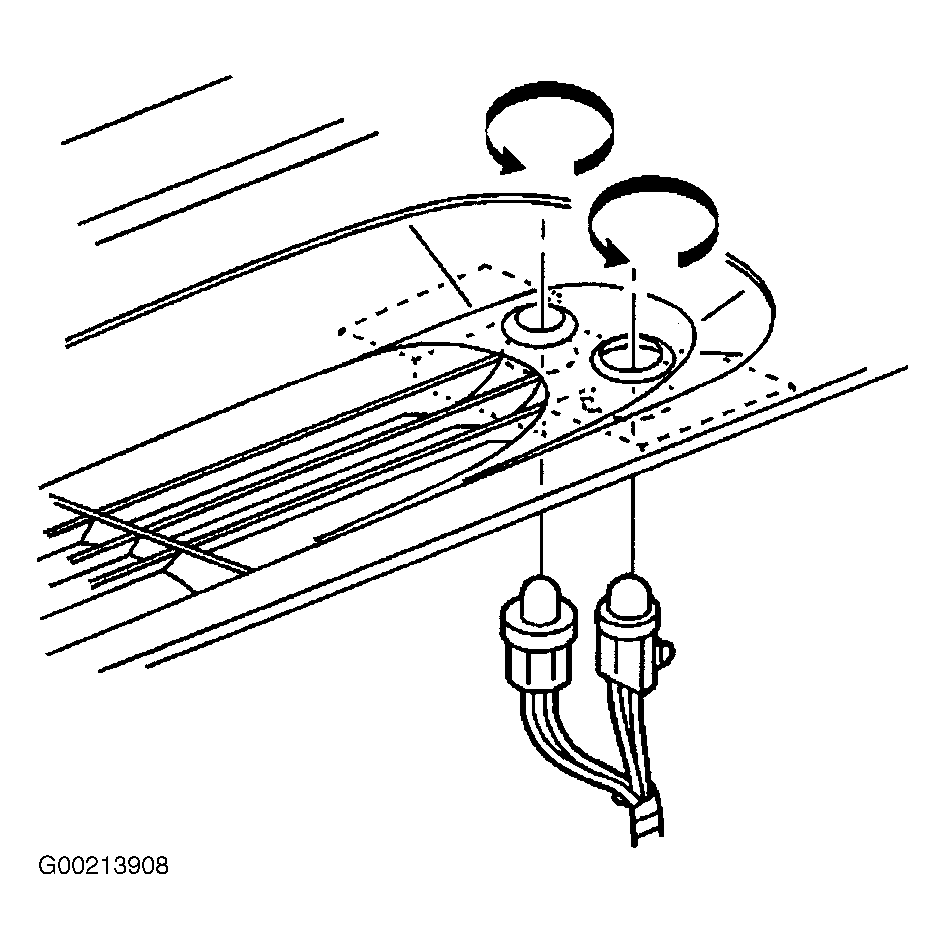

Install sun load sensor. Connect the sunload sensor electrical connector. Align the instrument panel upper trim locating pins and the retainers to the slots in the instrument panel. See Fig 1 .
Push forward and down on the instrument panel upper trim panel to lock into place. See Figure . Install the windshield garnish molding.

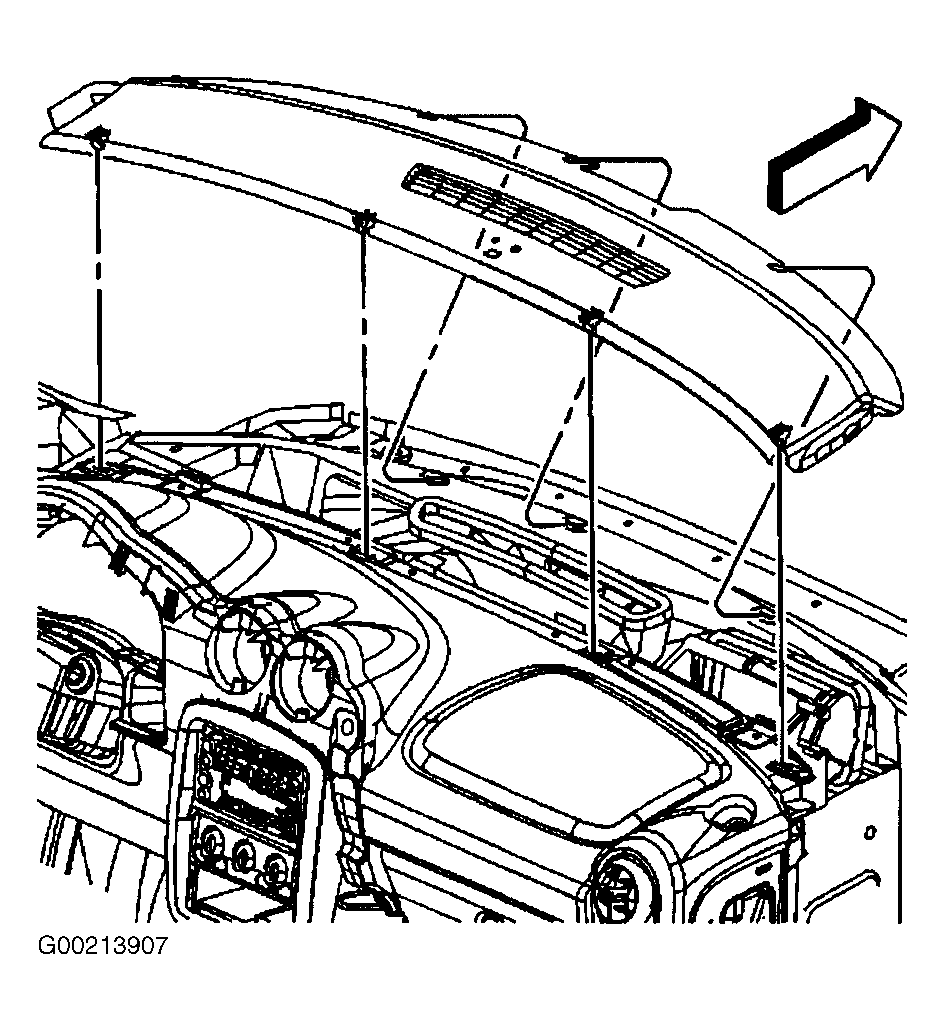

Fig 1: Installing Upper Trim Panel Pins & Retainers

Courtesy of GENERAL MOTORS CORP.
