Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wheel bearing/hub.
    WARNING: These fasteners MUST be replaced with new fasteners anytime they become loose or are removed. Failure to replace these fasteners after they become loose or are removed may cause loss of vehicle control and personal injury.
  2. Install NEW wheel bearing/hub bolts.

    Tighten:

    Tighten the NEW wheel bearing/hub bolts to 130 N.m (96 lb ft)

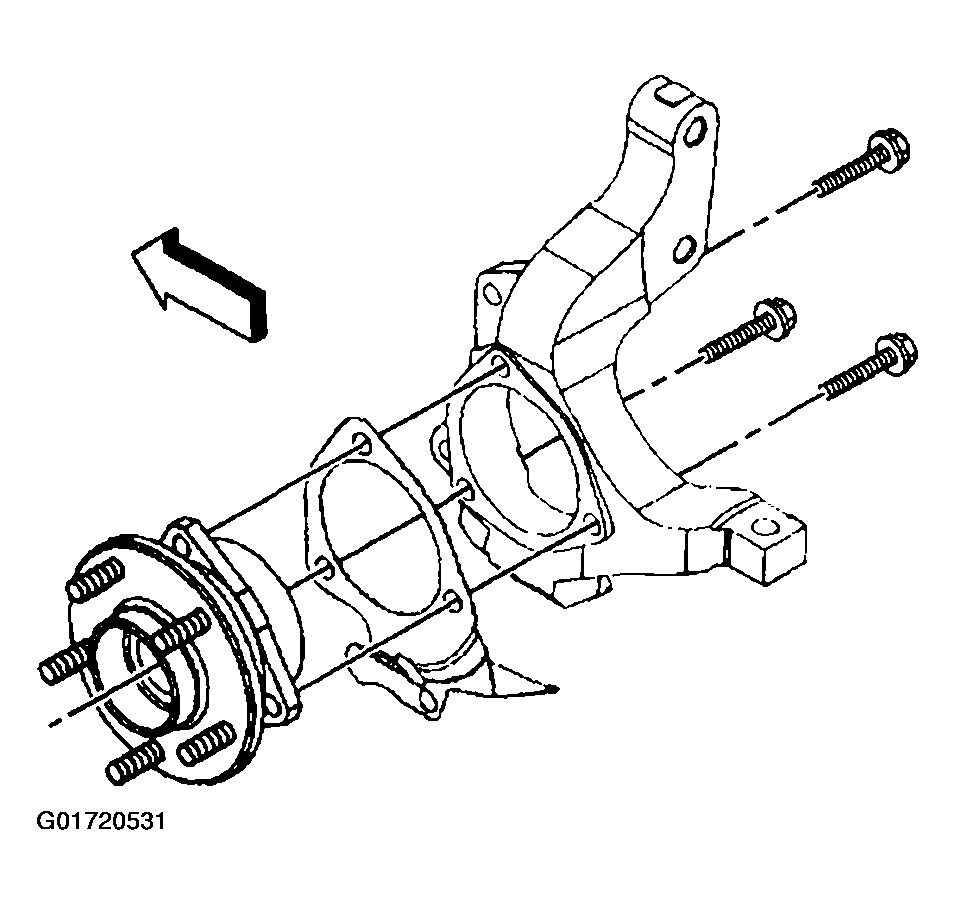

    Fig 1: Wheel Bearing/Hub Bolts And Assembly
    G01720531Courtesy of GENERAL MOTORS CORP.
  3. Install the axle shaft nut. Refer to AXLE SHAFTS .
  4. Install the brake rotor. Refer to BRAKE ROTOR (FRONT) .
  5. Install the brake caliper bracket with the brake caliper. Refer to CALIPER BRACKET (FRONT) .
    NOTE: Ensure that the connector clip engages the bracket properly.
  6. Install the wheel speed sensor electrical connector to the bracket.

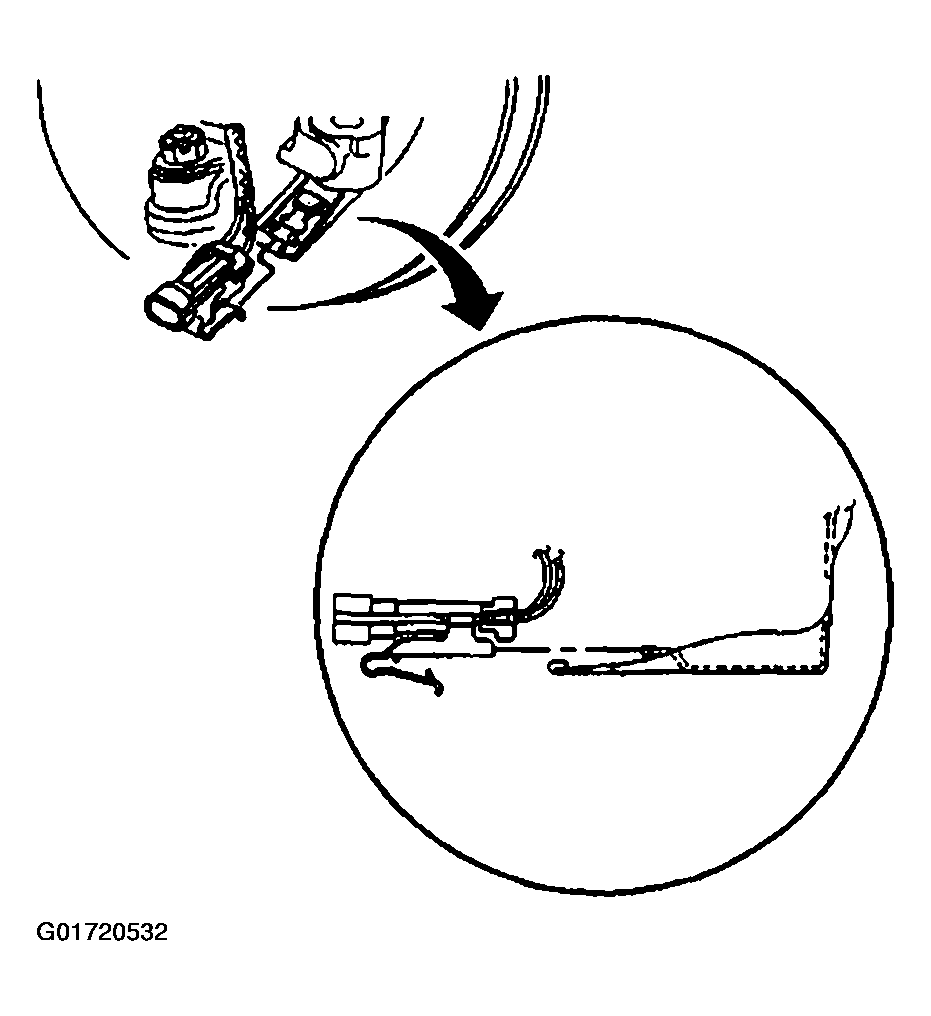

    Fig 2: Wheel Speed Sensor Electrical Connector To Bracket
    G01720532Courtesy of GENERAL MOTORS CORP.
  7. Connect the wheel speed sensor electrical connector (2).

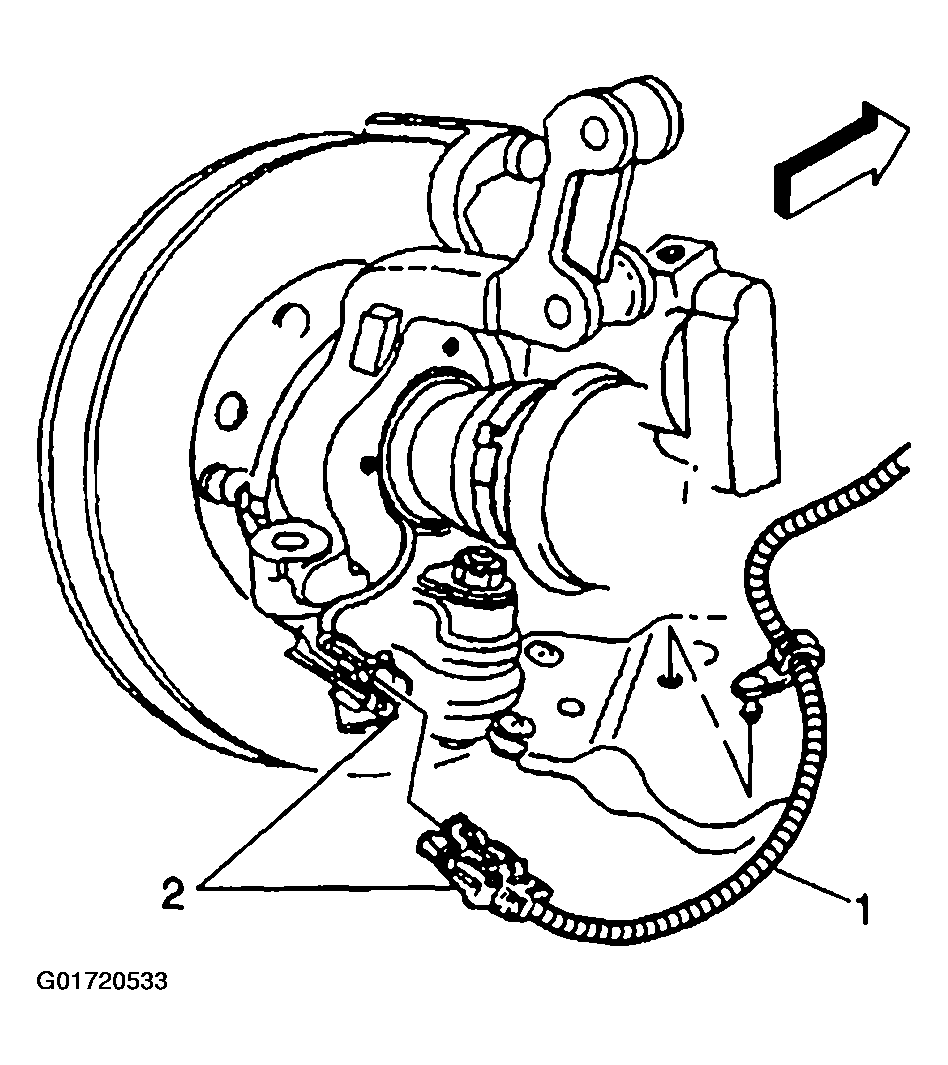

    Fig 3: Wheel Speed Sensor Electrical Connector
    G01720533Courtesy of GENERAL MOTORS CORP.
  8. Install the tire and wheel.
  9. Lower the vehicle.
