Installation Procedure
WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

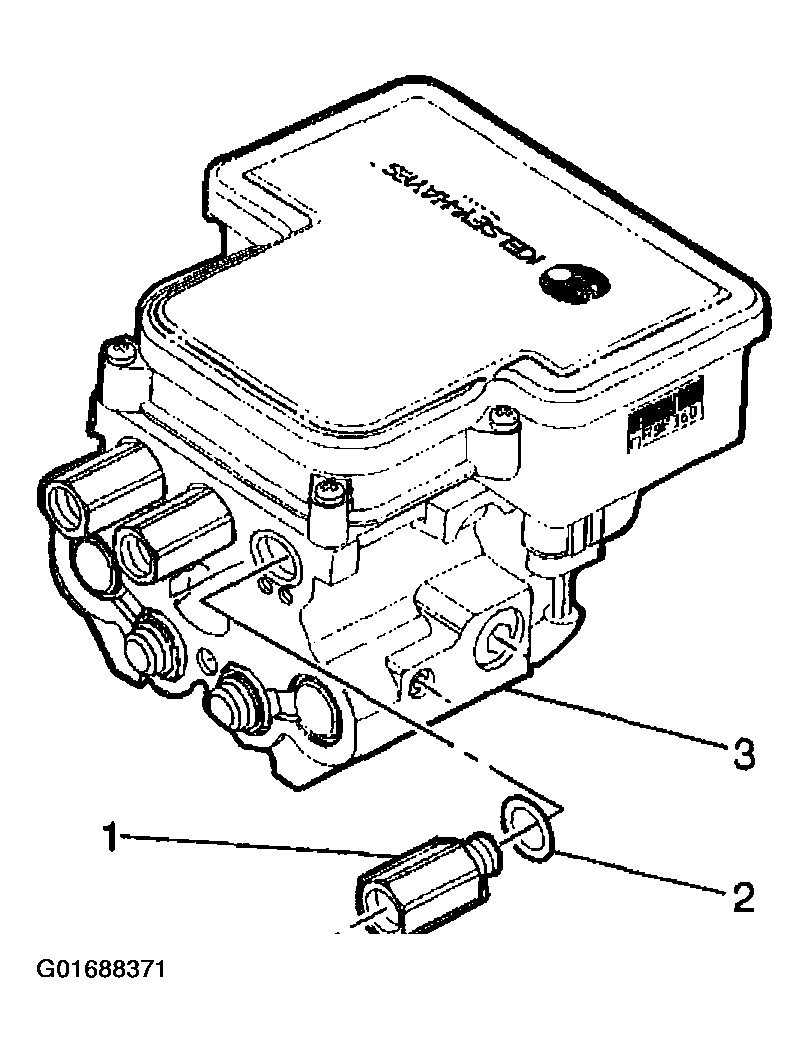

- Install the new tube adapter (1).
Tighten
Tighten the tube adapter to 31 N.m (23 lb ft).
- Install the brake line.
Tighten
Tighten the brake line to 30 N.m (22 lb ft).

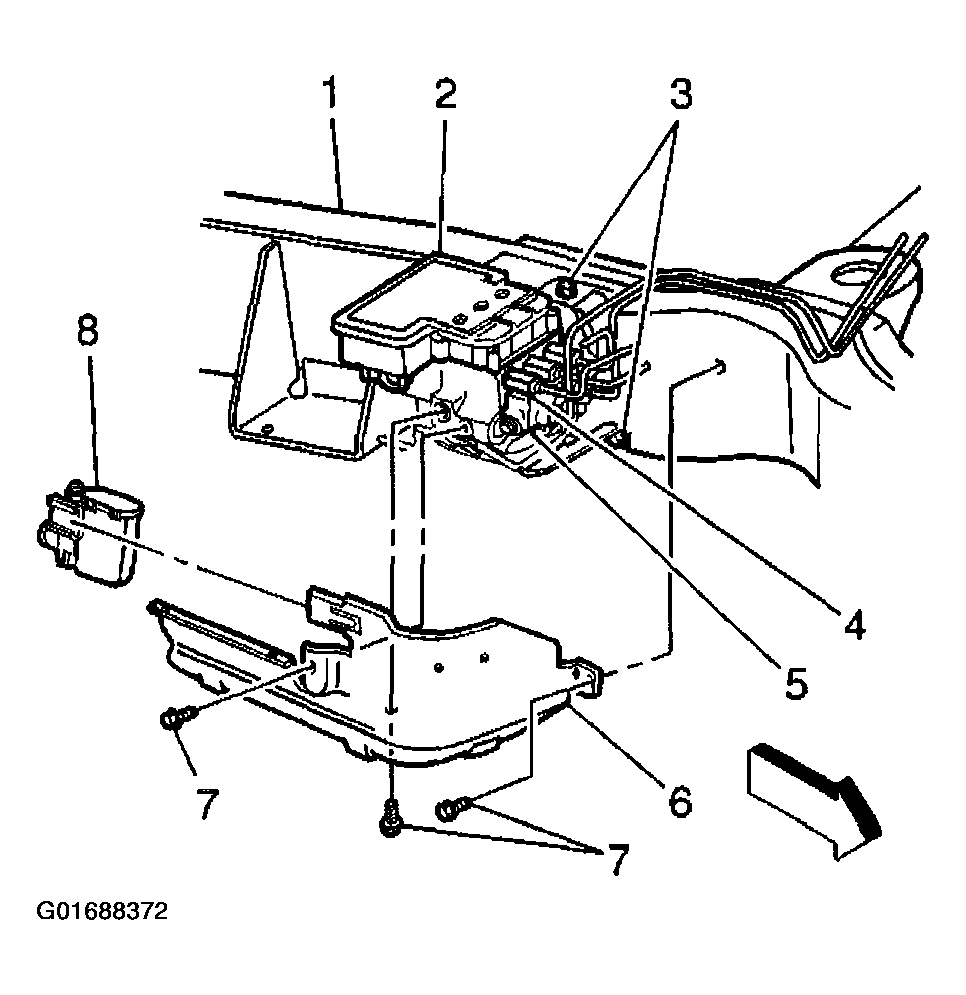

- Install the three EHCU shield bolts and shield.
Tighten
Tighten the EHCU shield bolts to 12 N.m (8 lb ft).
- Bleed the system. Refer to ABS Automated Bleed Procedure .
