Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat assembly from the vehicle. Refer to Seat Replacement - Bucket (All Except Luxury)  or Seat Replacement - Bucket (Luxury Y91)  .
  2. Remove the nuts (2) that retain the seat riser (3) to the seat adjuster (1).
  3. Remove the front seat riser from the seat adjuster.

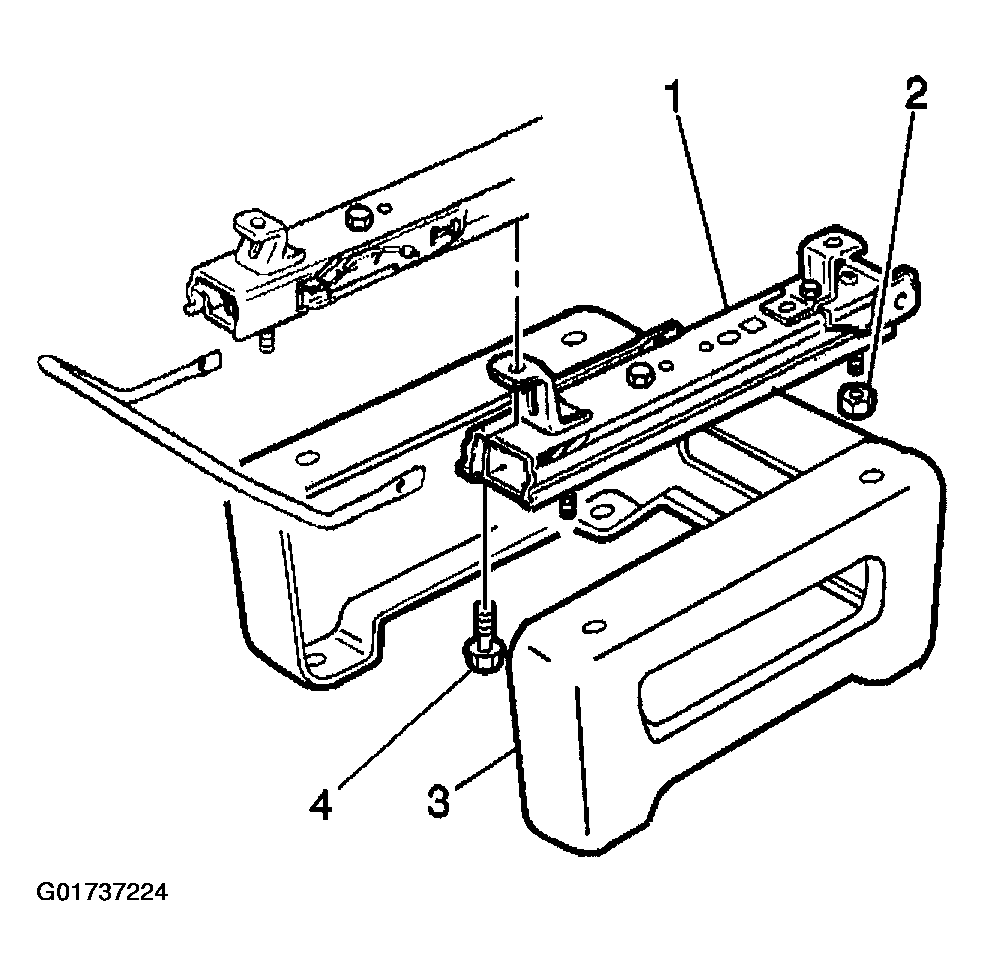

Fig 1: Removing Front Seat Riser & Nuts
G01737224Courtesy of GENERAL MOTORS CORP.
