Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
  2. Remove the steering column filler. Refer to STEERING COLUMN FILLER REPLACEMENT in Instrument Panel, Gages and Console.
  3. Disconnect the electrical connector from the fog lamp switch.
  4. Press the retaining tabs and remove the fog lamp switch from the steering column filler.

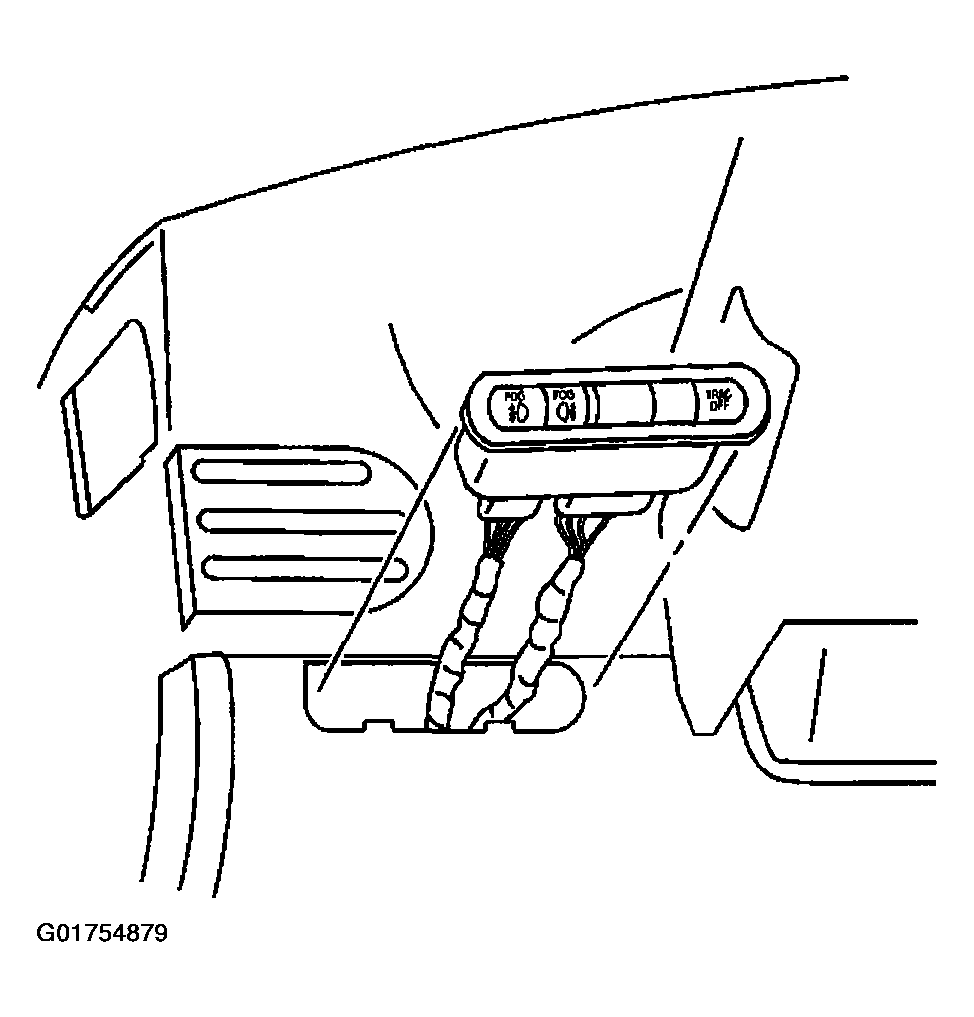

    Fig 1: Identifying Fog Lamp Switch
    G01754879Courtesy of GENERAL MOTORS CORP.
