Insulator Panel (Left Side): Installation
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

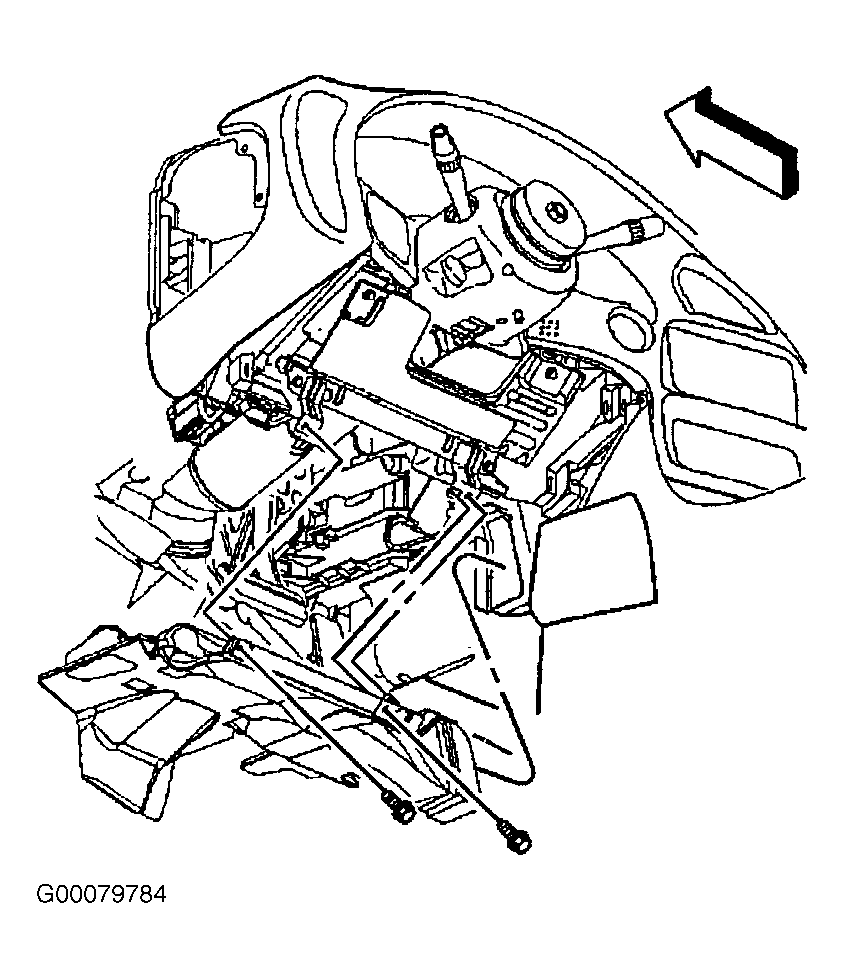

Set the forward edge of the closeout insulator panel onto the shelf of carpeting at the front of the vehicle. Connect the electrical connector to the lower instrument panel courtesy light. Install the heater temperature sensor to the closeout insulator panel by turning 1/4 turn clockwise. Install fasteners into lower instrument panel. Position the closeout insulator panel to the instrument panel retainer. Install the fasteners in order to secure the close out insulator panel to the instrument panel retainer. See Fig 1 . Tighten the fasteners to 18 INCH lbs. (2 N.m).
