Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat back. Refer to Seat Back Replacement - Front (Split Bench)  or Seat Back Replacement - Front (Bucket Seat)  .
  2. Remove the front seat back pad from the front seat back frame. Refer to Seat Back Pad Replacement - Front .
  3. Remove the inflatable restraint, left side impact module, if equipped. Refer to REMOVAL & INSTALLATION (SIDE IMPACT) .

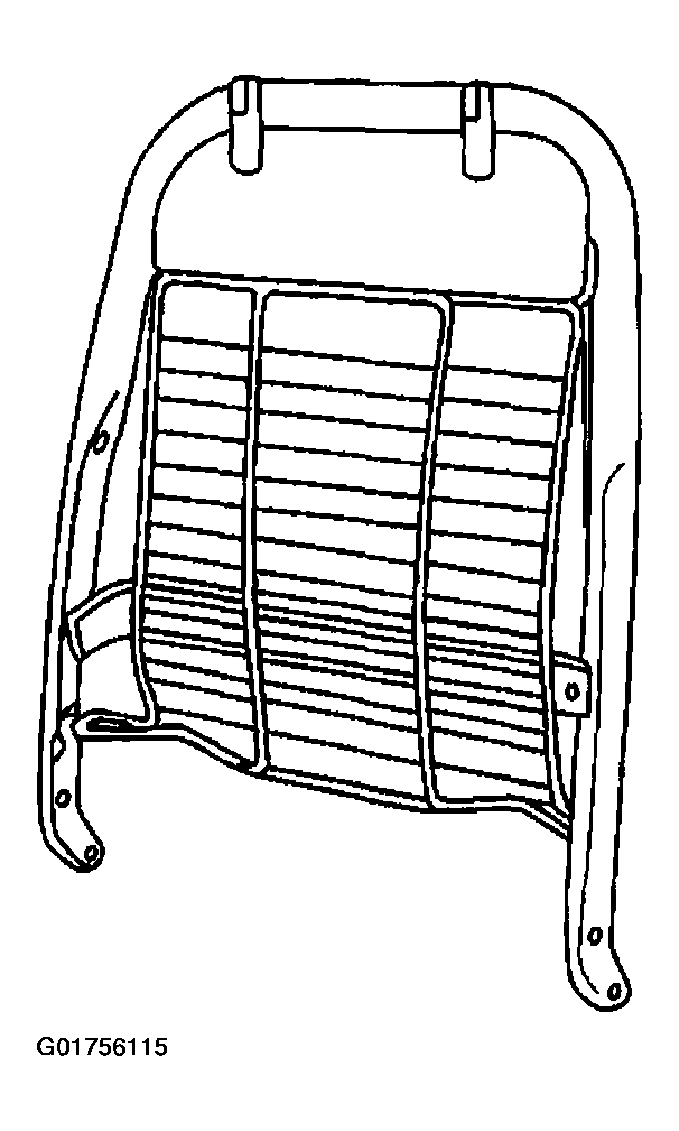

    Fig 1: Identifying Seat Back Frame
    G01756115Courtesy of GENERAL MOTORS CORP.
