Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp assembly from the vehicle. Refer to Headlamp Replacement  .
  2. Remove the headlamp bulb (3 or 4) from the headlamp assembly (1) by turning 1/4 turn counter clockwise.
  3. Disconnect the electrical connector from the bulb.

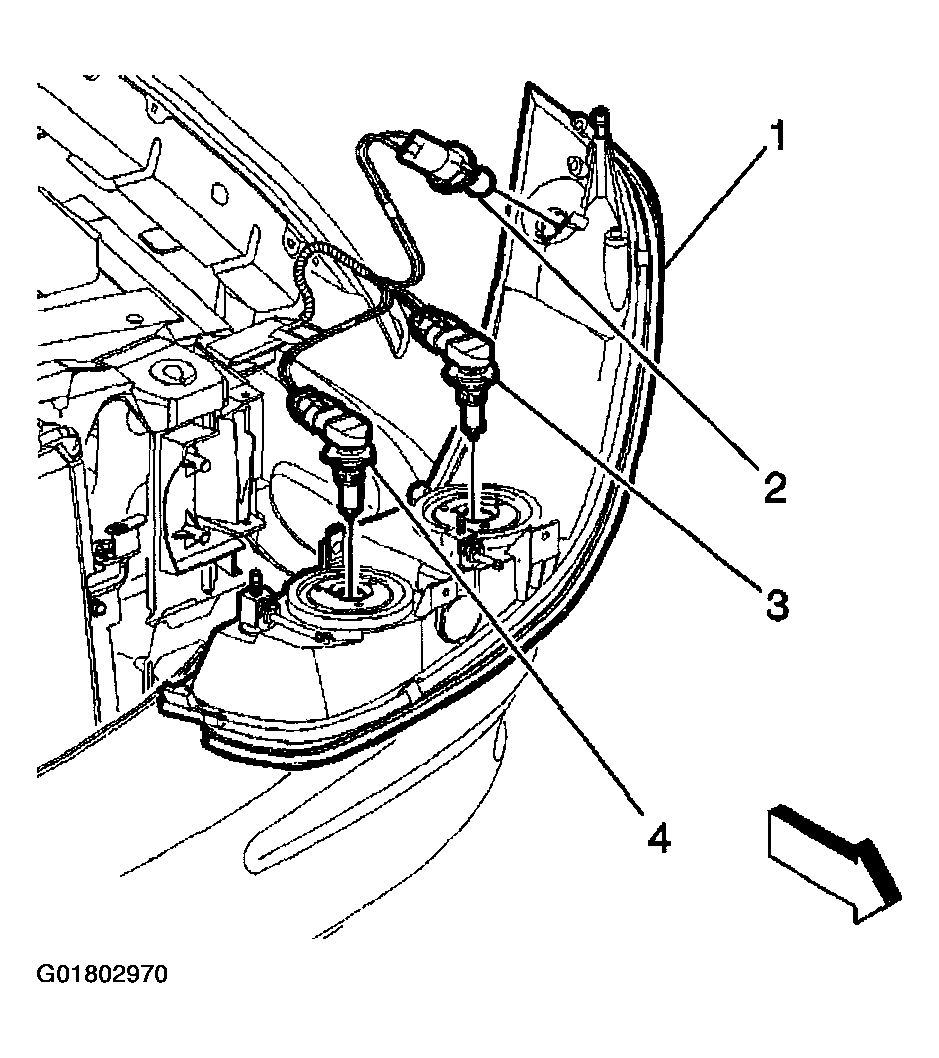

    Fig 1: Removing Headlamp Bulb
    G01802970Courtesy of GENERAL MOTORS CORP.
