Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure the headlamp switch is in the OFF position.
  2. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT (NON-LUXURY) or KNEE BOLSTER REPLACEMENT (LUXURY) .
  3. Squeeze the sides of the instrument panel storage compartment.
  4. Pull out the compartment.
  5. Remove the ashtray assembly by unsnapping the retainers.

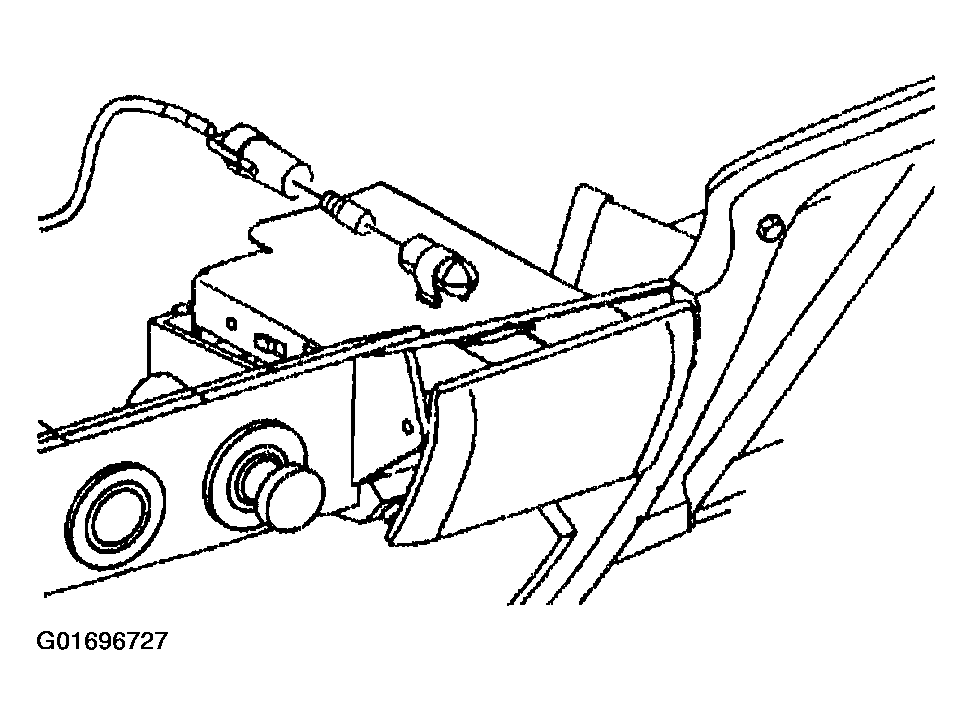

    6. Fig 1: Ashtray Lamp
    G01696727Courtesy of GENERAL MOTORS CORP.
  6. Remove the lamp assembly and the shield from the top of the ashtray bracket.
  7. Remove the shield from the lamp assembly.
  8. Remove the bulb from the base by pulling the bulb straight out of the base.
