Aiming Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Aiming Distances
G01696777Courtesy of GENERAL MOTORS CORP.
  1. Park the vehicle on a level surface 7.6 m (25 ft) away from a wall or other flat surface.
  2. Measure the distance from the floor to the center of the fog lamp (5).
  3. Using this measurement, mark the horizontal centerline of the fog lamp (1) on the flat surface directly in front of the vehicle.
  4. Turn ON the fog lamps.

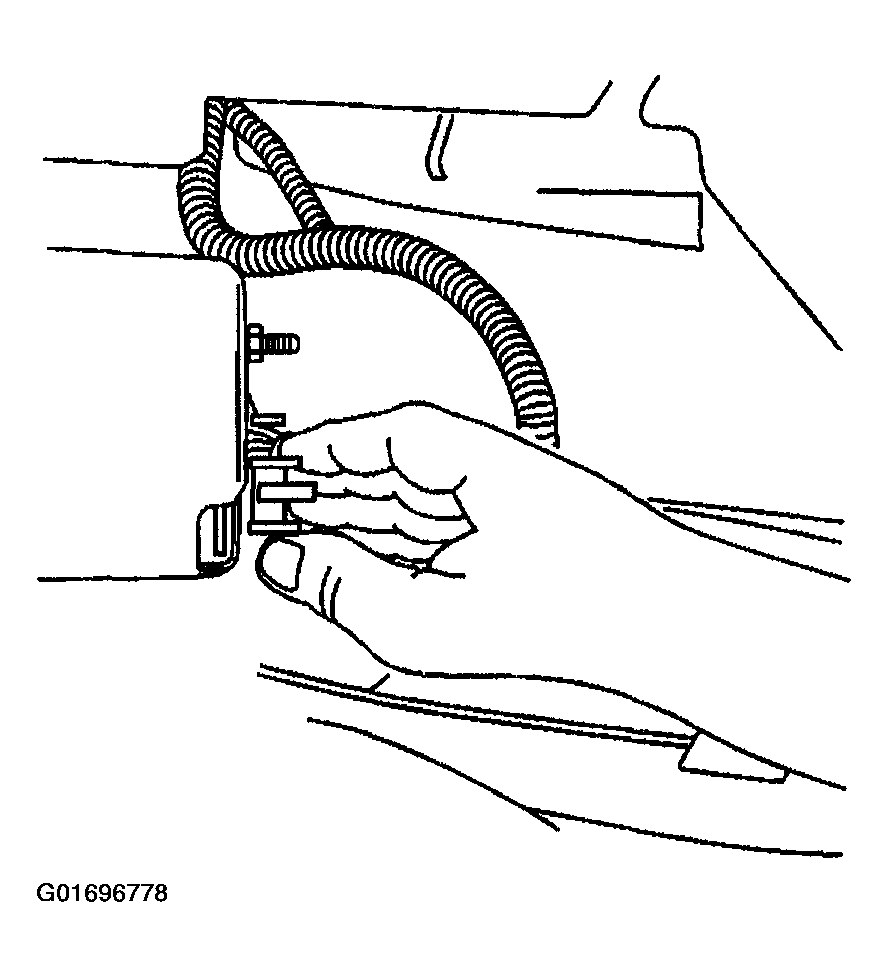

    5. Fig 2: Fog Lamp Vertical Adjustment Screw
    G01696778Courtesy of GENERAL MOTORS CORP.
  5. Reach under the rear lower edge of the front fascia in order to access the fog lamp vertical adjustment screw on the rear of the fog lamp.
  6. Adjust the fog lamp so that the top edge of the fog lamp beam pattern is 100 mm (4 in) below the horizontal centerline.
  7. Turn OFF the fog lamps.
