Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that the headlamp switch is in the OFF position.
  2. Open the endgate.

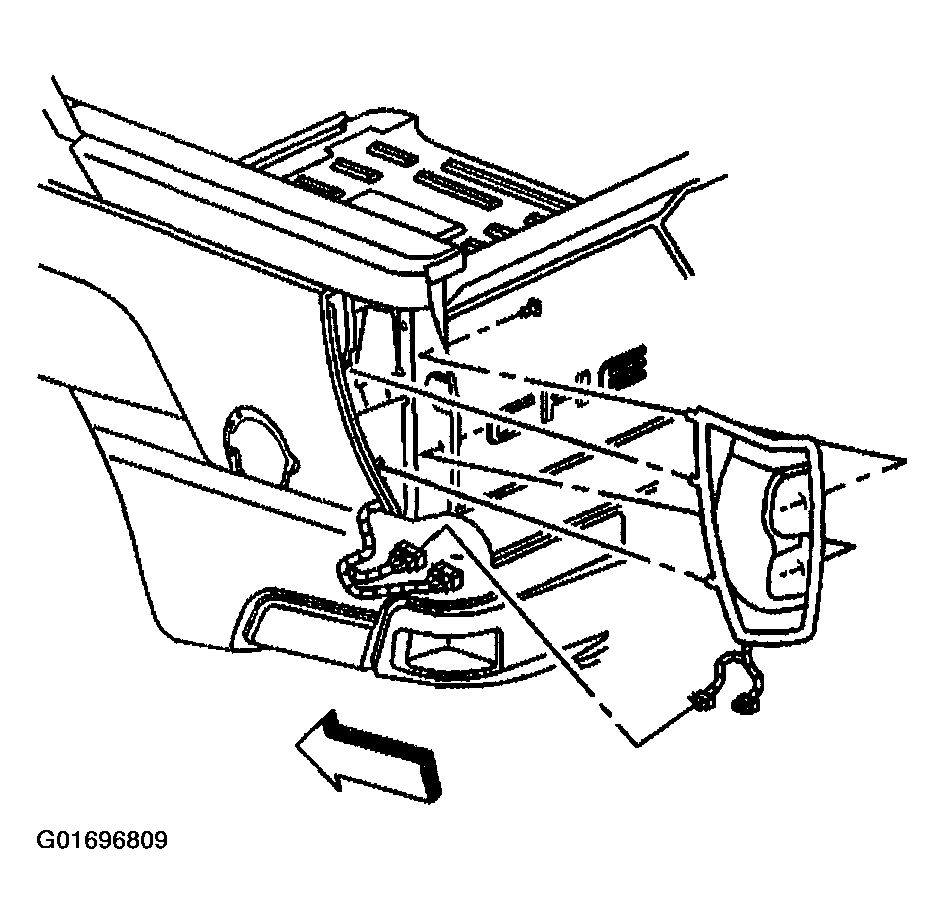

    3. Fig 1: Tail/Turn Signal Lamp Assembly
    G01696809Courtesy of GENERAL MOTORS CORP.
  3. Avalanche model shown.

    Remove the 2 screws retaining the tail/turn signal lamp assembly to the body.

  4. Identify the bulb in need of replacement.
    • The top bulb is a parking lamp and stop lamp
    • The center bulb is a turn indicator lamp
    • The lower bulb is a backup lamp
  5. Rotate the bulb socket 1/4 turn counter-clockwise in order to remove the bulb sockets from the tail/turn lamp assembly.
  6. Remove the bulbs from the sockets by pulling out the bulbs.
