Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition lock cylinder. Refer to IGNITION SWITCH LOCK CYLINDER REPLACEMENT .
  2. Remove the reader/exciter from the ignition lock cylinder housing (4).
    1. 2.1.  Release the clips (1, 2)
    2. 2.2.  Slide the reader/exciter off the lock cylinder. Clip (2) may tend to catch on the illumination ring and need to be unhooked.

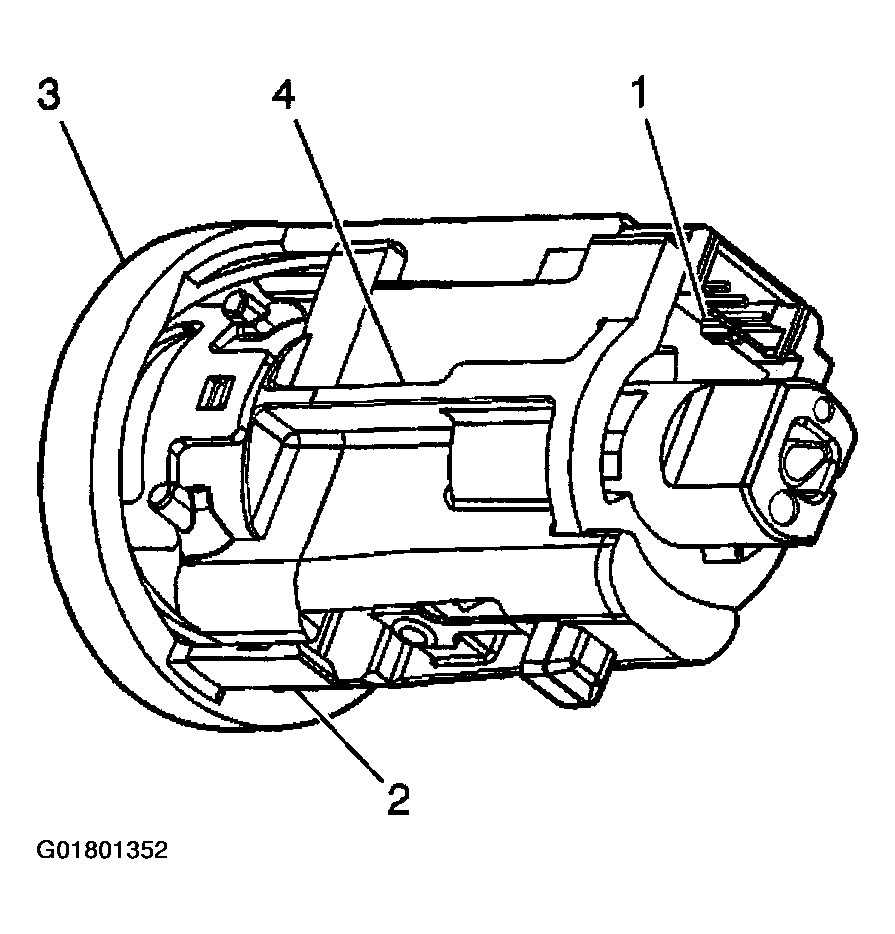

    Fig 1: Removing Theft Deterrent Exciter Module
    G01801352Courtesy of GENERAL MOTORS CORP.
